4-6L Refurbished Tipper Chassis with Hydraulic Steering and ISO Certification

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

4-6L Refurbished Tipper Chassis with Hydraulic Steering and ISO Certification

4-6L Refurbished Tipper Chassis with Hydraulic Steering and ISO Certification
4-6L Refurbished Tipper Chassis with Hydraulic Steering and ISO Certification 4-6L Refurbished Tipper Chassis with Hydraulic Steering and ISO Certification 4-6L Refurbished Tipper Chassis with Hydraulic Steering and ISO Certification 4-6L Refurbished Tipper Chassis with Hydraulic Steering and ISO Certification

Large Image :  4-6L Refurbished Tipper Chassis with Hydraulic Steering and ISO Certification

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

4-6L Refurbished Tipper Chassis with Hydraulic Steering and ISO Certification

Description
Model NO.: 4*2 Pump Truck Power: Diesel
Load Capacity: 21-30t Emission Standard: Euro 5
Drive Wheel: 4×2 Engine Capacity: 4-6L
Seats: ≤5 Horsepower: 351-450hp
Tire Certification: ISO Tire Design: Tubeless
Dumping Type: Front Lifting Style Condition: Used
Tyre: New Steering System: Hydraulic Steering With Power Assistance
Chassis Brand: Sinotruk Chassis Color: White
Cab: Air Conditioner Cargo Box Material: Carbon Steel
Electric System: Battery:2X12V/165ah; Alternator:28V-1500 Kw; Sta Transport Package: Naked Packing
Specification: 8.5x2.6x3.6m Trademark: Dongfeng Tianlong
Origin: China Liangshan HS Code: 870423009
Supply Ability: 10000pieces/Year Package Size: 850.00cm * 260.00cm * 360.00cm
Package Gross Weight: 12100.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost: About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Refurbished Tipper Chassis with Hydraulic Steering and Power Assistance for Commercial Use

Experience unparalleled power and unmatched reliability with the Shacman M3000 X3000 Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Engineered for superior performance, this imposing vehicle boasts a colossal 18-25cbm capacity, empowering you to effortlessly conquer any heavy-duty challenge with steadfast confidence.

Product Description

Introducing our highly adaptable Dump Truck, known by many as a Dumper Truck, Tipper Truck, or simply Tipper. This expertly crafted vehicle is engineered to satisfy all your heavy-duty hauling requirements with unparalleled efficiency and dependability.
Designed for outstanding performance, these dump trucks feature a robust chassis, a capacious tipping box, and a potent hydraulic cylinder. Ideal for transporting sand, stone, gravel, and more, we, as a premier supplier, offer a variety of configurations including 4x2, 6x4, and 8x4 models to perfectly align with your specific needs.
Key Advantages of this Dump Truck:

1. Perfect for earthwork, gravel, and bulk material transportation.
2. Enhanced productivity with a precise and efficient unloading angle.
3. Significant savings in transportation costs.
4. Customizable designs tailored to meet diverse customer requirements.

Dump Truck Description:
The loading carriage automatically tips over to unload at a specified angle, significantly reducing unloading time and labor. This not only accelerates the transportation cycle but also boosts production efficiency and reduces costs, making it an indispensable specialized transport vehicle.

1. By appearance: Single-axle, double-axle, flat-head, pointed tip, front four-back eight, double-axle semi-trailer, and three-axle semi-trailer dump trucks.

2. By purpose: Agricultural, mining, garbage, coal transportation, construction machinery, and sludge dump trucks.

3. By driving modes: 6x4, 8x4 for unloading, and semi-trailer dump trucks.

4. By use: Mining dump trucks for coal, sand, and gravel; environmental sanitation, and eco-friendly dump trucks for garbage transportation.

5. By car rollover direction: Front lift, rollover dump trucks, and two-way side dump trucks, primarily used in construction projects.

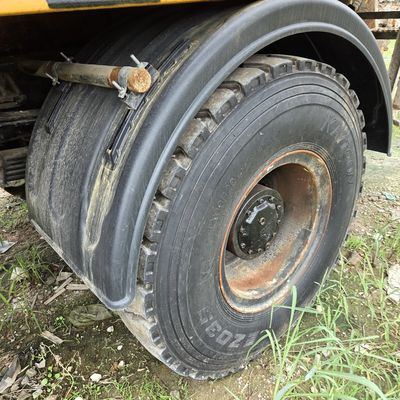

Detailed Photos
Refurbished Tipper Chassis with Hydraulic Steering and Power Assistance for Commercial UseRefurbished Tipper Chassis with Hydraulic Steering and Power Assistance for Commercial UseRefurbished Tipper Chassis with Hydraulic Steering and Power Assistance for Commercial UseRefurbished Tipper Chassis with Hydraulic Steering and Power Assistance for Commercial Use

Basic Information

Announcement Model:
SMQ5160THB
Pumping capacity:
65m3/hour
Vehicle weight:
16 tons
Drive type:
4X2
Vehicle size: length × width × height:
10×2.37×3.61m
Wheelbase:
4700mm
Maximum driving speed:
90km/h




Engine parameters

engine model:
Dongfeng Cummins ISDe180 40
Maximum output power:
132kW
Maximum horsepower:
180 hp
Rated speed:
1400rpm
Displacement:
4.5L
Fuel injection system:
Common Rail
Emission Standards:
National 5
Fuel type:
diesel fuel


Upload parameters

Water tank capacity:
400L




Chassis parameters

Chassis Model:
DFL1160BX5
Chassis Brand:
Dongfeng Commercial Vehicle
Chassis series:
Dongfeng Tianjin
Number of Axes:
3


tire

Tire specifications:
10.00-20,10.00R20,9.00-20,9.00R20,275/80R22.5 16PR




Pumping system

Pumping capacity (low pressure/high pressure):
65m3/hour
Pumping pressure (low pressure/high pressure):
8 MPa
Pumping times (low pressure/high pressure):
24 times/minute
Delivery cylinder: Inner diameter × stroke:
200×1400mm


Boom Legs

Vertical height of boom:
37m
Boom section number:
4
Outrigger width: front/rear:
5/4.5/5.5mm



Packaging & Shipping

Refurbished Tipper Chassis with Hydraulic Steering and Power Assistance for Commercial Use
Company Profile

Refurbished Tipper Chassis with Hydraulic Steering and Power Assistance for Commercial Use
Successful Case

After Sales Service


Rest assured, at Jining Huahang International Trade Co., Ltd., we leave no stone unturned. Every Shacman Sinotruk FAW Heavy Duty Dump Truck undergoes a meticulous and rigorous inspection process before it ever reaches your hands. Each truck chassis is carefully scrutinized to guarantee remarkable quality and unparalleled performance, ensuring your absolute satisfaction.

1. Engine: We ensure flawless engine starts by meticulously inspecting for any signs of oil leakage and conducting rigorous emissions checks. Black smoke, blue smoke, and white smoke are diligently scrutinized, ensuring all emissions comply with our stringent environmental standards.
We are committed to safeguarding the environment by ensuring all emissions, including black, blue, and white smoke, meet our stringent environmental standards.
2. Transmission: We scrupulously verify the accuracy of each transmission gear position, ensuring seamless gear shifting and optimal performance under various driving conditions.
3. Axle: Our exhaustive inspection includes oil leakage detection and smooth driving performance confirmation, guaranteeing you a hitch-free experience.
4. Frame: We conduct detailed checks for any deformities in the frame, ensuring the structural integrity and safety of our trucks.
5. Additional Checks: All headlights and wipers are thoroughly tested for full functionality, providing you with utmost peace of mind on every journey.
Refurbished Tipper Chassis with Hydraulic Steering and Power Assistance for Commercial Use
FAQ


Thank you for choosing Jining Huahang International Trade Co., Ltd. We are committed to delivering excellence in every aspect of our service, ensuring your total satisfaction.

Q: How about the delivery time?
A: We take immense pride in our operational efficiency. The majority of our robust trucks and precision-engineered machinery are readily available in stock, ensuring lightning-fast dispatch within just 7 days. For items requiring special orders, we maintain a streamlined production process typically spanning around 30 days, guaranteeing you receive exactly what you need without compromising on quality.

Q: How many units of trucks do you handle per year?
A: We are proud to manage an impressive volume of nearly 30,000 units annually. With a remarkable monthly turnover of 5,000 units, our vast capacity and steadfast reliability stand as a testament to our commitment to excellence.

Q: How do you ensure the quality of your products?
A: Our factory boasts a state-of-the-art production workshop, manned by a team of highly skilled professionals. We implement a stringent inspection process for each product, ensuring that all our trucks and machinery undergo comprehensive reconditioning. This rigorous approach guarantees you the highest quality standards in the industry.

Q: Do you accept custom orders? What is your minimum order quantity (MOQ)?
A: Absolutely, we embrace custom orders meticulously tailored to your specific requirements. Our minimum order quantity (MOQ) is a mere 1 unit, offering unparalleled convenience and flexibility for all our clients.
