Unleash the unmatched power and reliability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. This engineering marvel is designed for exceptional performance, boasting an impressive 18-25cbm capacity, making it the ideal choice for all your heavy-duty hauling needs.
Product Description
Our multifaceted Dump Truck, also known as a Dumper Truck, Tipper Truck, or simply Tipper, is expertly crafted to fulfill all your heavy-duty transportation requirements.
Meticulously engineered, our dump trucks feature a sturdy chassis, a spacious tipping box, and a potent hydraulic cylinder. These attributes make them perfectly suited for transporting materials such as sand, stone, gravel, and more. As a premier supplier, we offer various configurations including 4x2, 6x4, and 8x4 models, tailored to meet your specific needs.
This category of dump truck offers the following advantages:
1. Perfectly suited for earthwork, gravel, and bulk materials, etc.;
2. High production efficiency with adjustable unloading angles;
3. Cost-effective transportation solution;
4. Custom designs available to cater to diverse customer requirements.
Dump Truck Description:
Thanks to its automatic tipping mechanism, the loading carriage can unload materials at a specific angle, significantly reducing unloading time and labor. This efficiency shortens the transportation cycle, thereby boosting production efficiency and cutting transportation costs. It's a highly versatile special-purpose vehicle.
1. Appearance-based classification: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck
2. Purpose-based classification: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck
3. Driving mode-based classification: 6x4, 8x4 unloaders, and semi-trailer dump trucks.
4. Usage-based classification: Mining dump trucks for coal, sand, and gravel; environmental sanitation dump trucks for garbage transportation.
5. Rollover direction-based classification: front lift and rollover dump trucks, including two-way side dump trucks, predominantly used in construction projects.
| Name | Howo Dump Tipper Truck |
| Types | Used |
| Load capacity | 25000kg |
| Horsepower | 6x4 |
| Horsepower | 375 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro3 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2013-2017 |

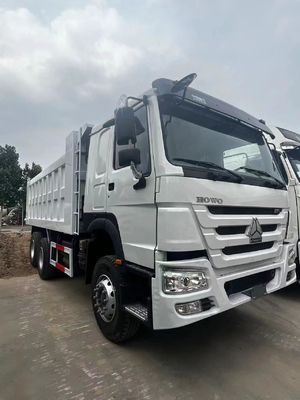

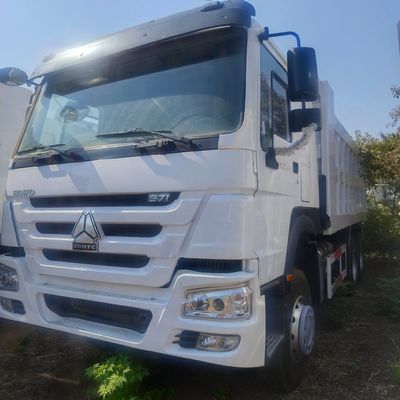

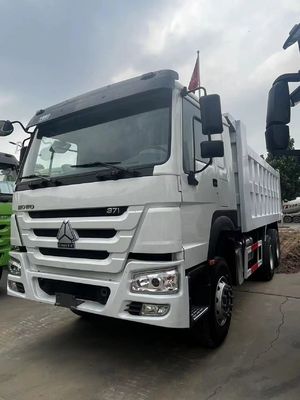

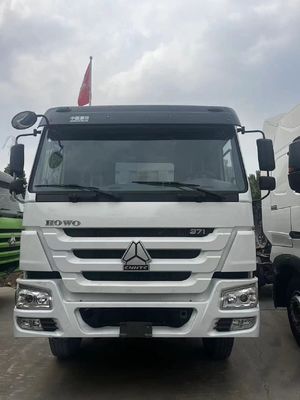

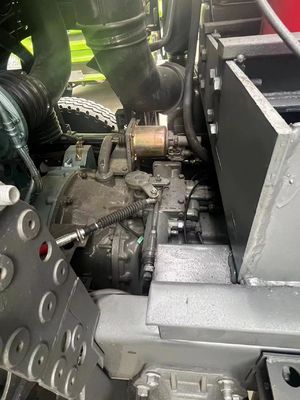

Detailed Photos
Main Specifications:

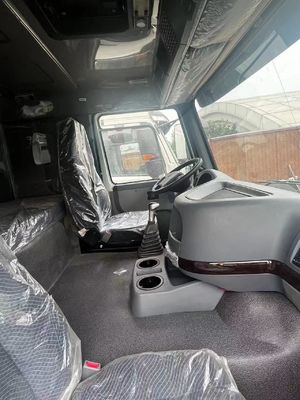

Driver's Cab(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System
| Capable of maintaining the sound level as low as possible. |
Steering
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper
| Installed heavy duty front and rear steel bumpers |
Brake System
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Cargo Body
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed company, Jining Huahang International Trade Co., Ltd., specializes in the exportation of brand-new trucks, high-quality used trucks, advanced construction machinery, and durable semitrailers. With over 15 years of profound experience in manufacturing trailers and 8 years dedicated to marketing used trucks and machinery, we stand as industry leaders committed to excellence.
At Jining Huahang International Trade Co., Ltd., we emphasize meticulous attention to detail in every vehicle we offer. Prior to delivery, each vehicle undergoes a rigorous inspection and road test conducted by our expert engineers, ensuring peak performance and reliability.
Having perfected our vehicles, we confidently guarantee the superior quality of our trucks and trailers. We proudly offer a Three-Month Warranty on all our products, affirming our commitment to customer satisfaction. Our guiding principle is 'Buy Easily, Service Assured,' as we strive to achieve the highest levels of customer contentment.
We take immense pride in our achievement of exporting over 1,000 Heavy Duty HOWO Dump Trucks annually to various African countries. This milestone underscores our commitment to delivering exceptional quality and unrivaled reliability, earning the trust and satisfaction of our esteemed international clients.
To ensure top-notch quality, our team thoroughly inspects each Heavy Duty HOWO Dump Truck before delivery, guaranteeing your utmost satisfaction.
1. Engine: We meticulously check if the engine starts smoothly, if there are any signs of oil leakage, and monitor the emission of black, blue, or white smoke.
smoke. Each aspect of the engine's performance is scrutinized to ensure it meets our stringent quality standards.
2. Transmission: We confirm that the transmission gear position is accurate and that it shifts gears seamlessly for reliable performance.
3. Axle: Our inspection ensures there is no oil leakage and that the axle operates normally, contributing to a smooth driving experience.
4. Frame: We examine the frame closely to ensure it is free from any deformations, maintaining the truck's structural integrity.
5. Headlights & Wipers: We verify that the headlights illuminate properly and the wiper functions as expected, ensuring safety and visibility.
