Discover the unparalleled power and reliability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Engineered for superior performance, this formidable machine boasts an impressive 18-25cbm capacity, designed to meet the most demanding hauling requirements.
Product Description
Our versatile Dump Truck, also known as the Dumper Truck, Tipper Truck, or simply Tipper, is expertly crafted to meet all your heavy-duty hauling needs. From construction sites to mining operations, this truck is built to deliver.
Crafted with unmatched precision, our dump trucks feature a robust chassis, a spacious tipping box, and a powerful hydraulic cylinder. These attributes make them perfect for transporting sand, stone, gravel, and more. As a leading supplier in the industry, we offer a variety of configurations, including 4x2, 6x4, and 8x4 models, tailored to suit your specific requirements.
This kind of dump truck offers the following advantages:
1. Ideal for transporting earthwork, gravel, bulk materials, etc.;
2. High production efficiency due to the ability to dump at a certain angle;
3. Significant savings on transportation costs;
4. Customizable design to meet diverse customer needs.
Dump Truck Description:
With the ability to automatically tip over for unloading at a certain angle, this dump truck significantly reduces unloading time and labor. It shortens the transportation cycle, enhances production efficiency, and reduces transportation costs, making it a commonly used special transportation vehicle.
1. Classified by appearance: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck.
2. Classified by purpose: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck.
3. According to different driving modes: 6x4, 8x4 for unloading, and semi-trailer dump trucks.
4. Segmented by usage: mining dump trucks for transporting coal, sand, and gravel; environmental sanitation and green dump trucks for transporting garbage, etc.
5. According to the direction of car rollover: front lift and rollover dump trucks, and two-way side dump trucks, primarily used in construction projects.
| Name | Howo Dump Tipper Truck |
| Types | Used |
| Load capacity | 25000kg |
| Horsepower | 6x4 |
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2013-2017 |

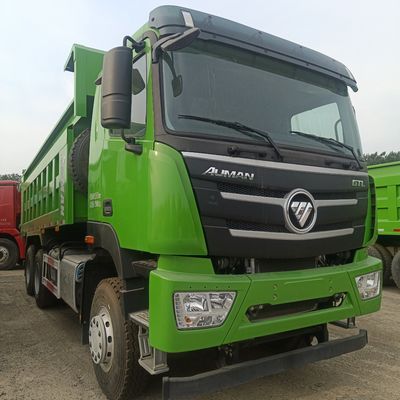

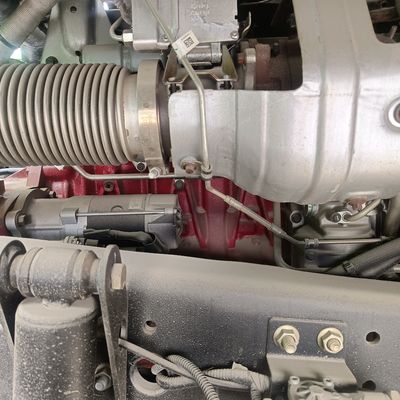

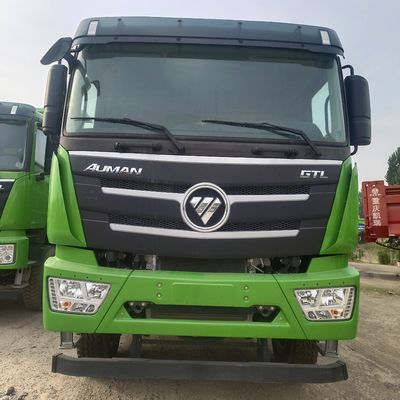

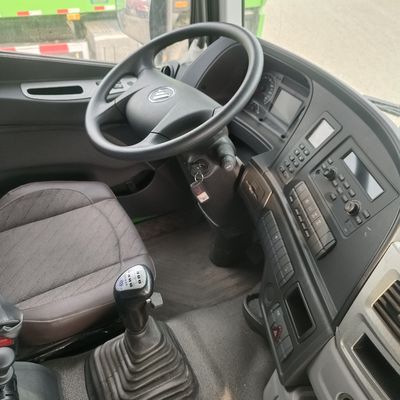

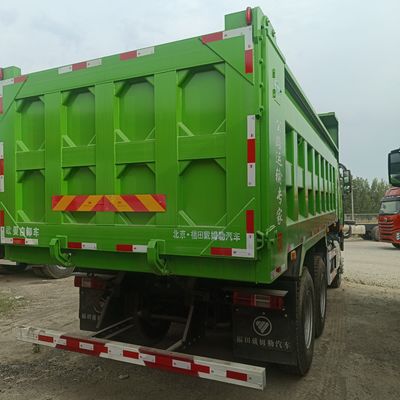

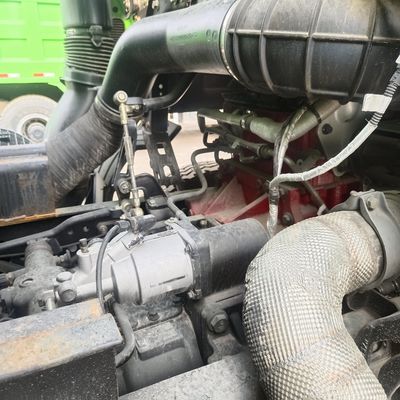

Detailed Photos
Main Specifications:
Driver's Cab(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System
| Capable of maintaining the sound level as low as possible. |
Steering
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper
| Installed heavy duty front and rear steel bumpers |
Brake System
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Cargo Body
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Jining Huahang International Trade Co., Ltd. is your trusted partner in the export of new trucks, pre-owned trucks, construction machinery, and semi-trailers. With over 15 years of expertise in trailer manufacturing and 8 years of excellence in marketing used trucks and machinery, we are dedicated to delivering unparalleled quality and service.
At Jining Huahang, we prioritize meticulous attention to every detail of our vehicles. Before any vehicle is delivered, it undergoes a comprehensive road test inspection conducted by our skilled engineers, ensuring peak performance and reliability.
Through our dedication to perfection, we confidently guarantee the exceptional quality of our trucks and trailers. We proudly offer a Three-Month Warranty on all our products. Our company's ultimate mission is encapsulated in our motto: "Buy Easily, Service Assured." Achieving customer satisfaction is our highest pursuit.
Jining Huahang International Trade Co., Ltd. takes immense pride in announcing that we have successfully exported our top-tier Heavy Duty HOWO 6X4 Dump Trucks to various African countries. Each year, over 1,000 of these robust machines embark on their journey to new homes, proving their unmatched reliability and excellence.
At Jining Huahang International Trade Co., Ltd., we ensure that every Heavy Duty HOWO 6X4 Dump Truck is meticulously inspected before delivery. This guarantees that you receive a vehicle in optimal condition, ready to meet your demanding needs.
1. Engine: We thoroughly check if the engine starts smoothly, is free from any oil leaks, and ensures no emission of black,
blue, or white smoke, ensuring it operates efficiently and complies with environmental standards.
2. Transmission: We verify the transmission gear positions to ensure they are accurate and the vehicle gears function seamlessly.
3. Axle: Our examination includes checking for oil leaks and confirming that the axle operates normally during driving.
4. Frame: We inspect the frame to ensure it remains free from deformation, maintaining the structural integrity of the truck.
5. Ancillary Systems: We ensure headlights and wipers are fully functional, providing safety and reliability in various conditions.
Thank You for Choosing Us
Q: How about the delivery time?
A: Most of our trucks and machinery are readily available in stock, allowing us to deliver within just 7 days. For specially ordered units, the production lead time is typically around 30 days.
Q: How many units of trucks do you produce annually?
A: We manufacture approximately 30,000 units annually, with monthly updates of nearly 5,000 units.
Q: How do you ensure the quality of your products?
A: Our factory features a state-of-the-art production workshop staffed by highly trained workers. Each product undergoes a stringent inspection process to guarantee quality. We also professionally recondition our trucks and machinery.
Q: Do you accept custom orders? What is your minimum order quantity (MOQ)?
A: Yes, we accept custom orders, and our MOQ is just 1 unit.
