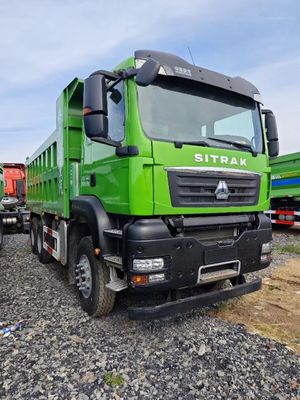

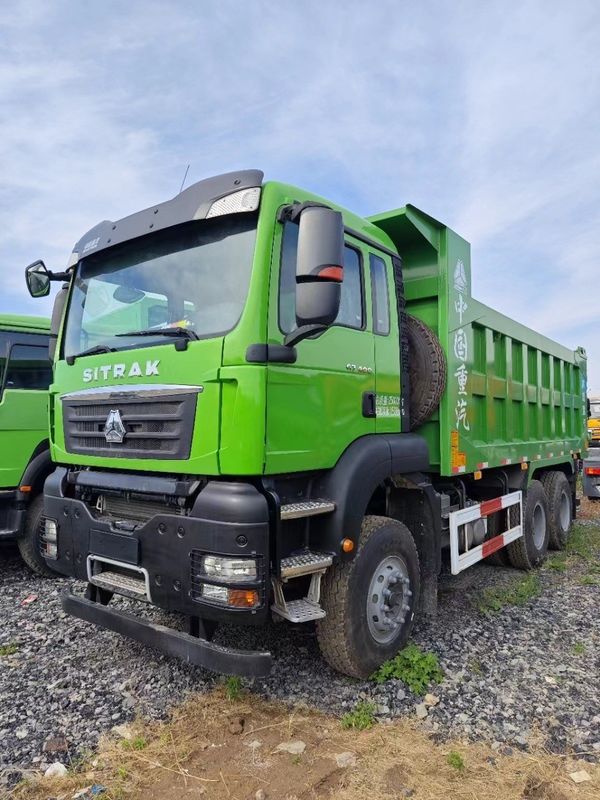

Experience the pinnacle of power and reliability with the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Crafted for outstanding performance, this robust truck features an impressive 18-25cbm capacity, making it the ideal choice for conquering any heavy-duty task effortlessly.
| Name | Howo Dump Tipper Truck |
| Types | Used |
| Load capacity | 25000kg |
| Horsepower | 6x4 |
| Horsepower | 375 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro3 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |

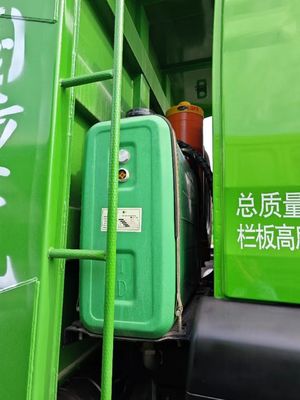

| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2013-2017 |
Main Specifications:

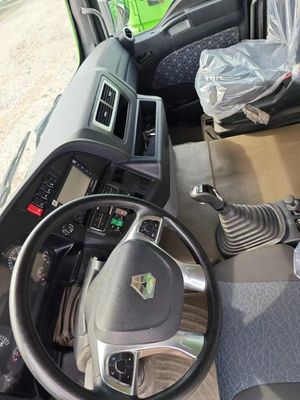

Driver's Cab(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System
| Capable of maintaining the sound level as low as possible. |
Steering
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper
| Installed heavy duty front and rear steel bumpers |
Brake System
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |

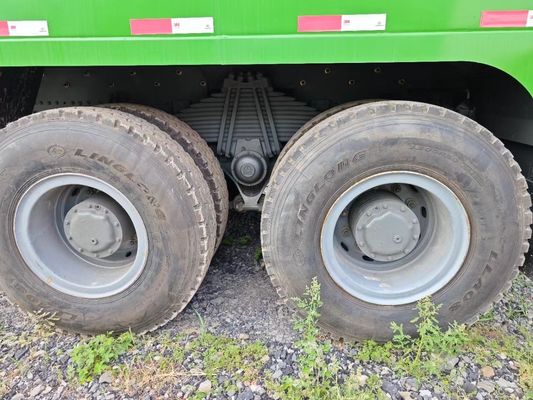

Wheels & Tyres
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |

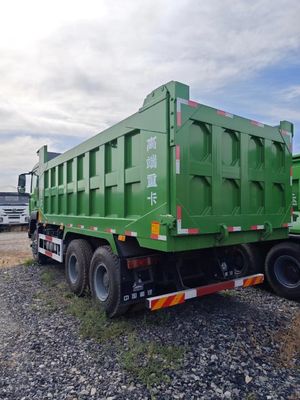

Cargo Body
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Jining Huahang International Trade Co., Ltd. is a distinguished specialist in the exportation of new trucks, used trucks, construction machinery, and semitrailers. Boasting over 15 years of unparalleled expertise in trailer manufacturing and 8 years in the marketing of pre-owned trucks and machinery, we are a name you can trust.
At Jining Huahang International Trade Co., Ltd., meticulous attention to detail is our hallmark. Prior to delivery, each vehicle undergoes a thorough road test inspection by our expert engineers, ensuring that only the finest quality reaches our esteemed customers.
With our perfected fleet of vehicles, we stand behind the superior quality of our trucks and trailers. We proudly offer a Three-Month Warranty on all our products. Our mission, 'Buy Easily, Service Assured', reflects our unwavering commitment to customer satisfaction, which remains our utmost priority.
Our exceptional track record speaks volumes! Each year, we triumphantly export over 1,000 Sinotruk Chassis Used Tipper Trucks to various African countries. This impressive feat showcases our unparalleled commitment to delivering quality and reliability, solidifying our reputation as a trusted leader in the industry.
Rest assured, every Heavy Duty Sinotruk Dump Truck Chassis undergoes an exhaustive inspection before it departs from Jining Huahang International Trade Co., Ltd. Our meticulous quality control ensures top-tier performance and reliability.
1. Engine: We guarantee flawless engine starts, rigorously inspect for any oil leakages, and assess emissions including black smoke,
blue smoke, and white smoke, ensuring all adhere to our stringent environmental standards.
2. Transmission: Our experts verify precise transmission gear positions, ensuring seamless gear shifting and optimal operation every time.
3. Axle: Our thorough inspection identifies and addresses any oil leaks, ensuring smooth and hitch-free driving performance.
4. Frame: We rigorously check for any deformities, guaranteeing the frame's structural integrity and your safety.
5. Additional Checks: We ensure all headlights and wipers are fully operational, providing you with total confidence and peace of mind on the road.
Thank you for Choosing Us
Q: How about the delivery time?
A: Most of our trucks and machinery are in stock, ready for swift dispatch. We guarantee delivery within 7 days for standard orders. For specially ordered items, our meticulous production process typically spans around 30 days.
Q: How many units of trucks do you handle per year?
A: We proudly manage nearly 30,000 units annually, with a robust turnover of around 5,000 freshly updated units each month, ensuring a dynamic and ever-ready inventory.
Q: How do you ensure the quality of your products?
A: Our factory is equipped with a state-of-the-art production workshop, manned by highly skilled workers. Each product is subjected to a stringent inspection process. We meticulously recondition our trucks and machinery on a dedicated professional line to uphold the highest quality standards.
Q: Do you accept custom orders? What is your minimum order quantity (MOQ)?
A: Absolutely, we welcome custom orders tailored to your specifications. Our minimum order quantity (MOQ) is just 1 unit, making it convenient for unique, bespoke requirements.
