Discover the unparalleled power and reliability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Expertly engineered for superior performance, this robust vehicle boasts an impressive 18-25cbm capacity, making it an indispensable asset for your heavy-duty operations.
Product Description
Our versatile Dump Truck, also known as a Dumper Truck, Tipper Truck, or simply Tipper, is meticulously designed to meet all your heavy-duty hauling needs, ensuring efficiency and reliability.
Crafted with precision, our dump trucks feature a robust chassis, a spacious tipping box, and a powerful hydraulic cylinder. These attributes make them perfect for transporting sand, stone, gravel, and more. As a leading supplier, we offer a variety of configurations including 4x2, 6x4, and 8x4 models to suit your specific requirements.
This kind of dump truck offers the following advantages:
1. Ideal for transporting earthwork, gravel, bulk materials, etc.
2. Capable of dumping at a certain angle, ensuring high production efficiency.
3. Reduces transportation costs significantly.
4. Customized designs available to meet diverse customer needs.
Dump Truck Description:
The loading carriage can automatically tip over for unloading at a specific angle, greatly saving unloading time and labor. This feature shortens the transportation cycle, improves production efficiency, and reduces transportation costs, making it a commonly used special transportation vehicle.
1. Classified by appearance: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck.
2. Classified by purpose: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck.
3. According to different driving modes, it is categorized into 6x4, 8x4 for unloading, and semi-trailer dump trucks.
4. Based on different uses, it includes mining dump trucks for transporting coal, sand, and gravel; environmental sanitation and green dump trucks for transporting garbage, etc.
5. Depending on the direction of the car rollover, there are front lift and rollover dump trucks, as well as two-way side dump trucks, primarily used in construction projects.
Basic Information
| driver license: | A1,A2,B2 | Announcement Model: | ZZ3317V326GF1 |
| Drive type: | 8X4 | Wheelbase: | 1950+3225+1350mm |
| engine: | Sinotruk MC11.44-60 | Gearbox: | Sinotruk HW25712XSL |
| Rear axle ratio: | 5.26 | Body length: | 9.58 m |
| Body width: | 2.55 m | Ride height: | 3.55 m |
| Front track: | 2022/2022mm | Rear track: | 1860/1860mm |
| Vehicle weight: | 15.5 tons | Rated load: | 15.37 tons |
| Total mass: | 31 tons | Tonnage level: | Heavy Truck |
| Approach Angle: | 17 degrees | Departure angle: | 21 degrees |
| Origin: | Shandong Jinan | Market segments: | Urban construction waste |
| Fuel Type: | diesel fuel | | |
Engine parameters
| engine model: | Sinotruk MC11.44-60 | Engine Brand: | Sinotruk |
| Number of cylinders: | 6 cylinders | Fuel type: | diesel fuel |
| Displacement: | 10.518L | Emission Standards: | National VI |
| Maximum horsepower: | 440 hp | Maximum output power: | 327kW |
| Maximum Torque: | 2100N·m | Maximum torque speed: | 1000-1400rpm |
| Rated speed: | 1900rpm | Engine Type: | High pressure common rail + EGR + SCR |
Cargo box parameters
| Length of cargo box: | 6.5 m | Cargo box width: | 2.35 m |
| Cargo box height: | 1.5 m | Cargo box form: | Self-unloading |
Cab parameters
| Driver's seat type: | Airbag shock absorbing seat | | |
Gearbox parameters
| Gearbox Model: | Sinotruk HW25712XSL | Gearbox brand: | Sinotruk |
| Forward gears: | 12 gears | Reverse gear number: | 2 |
tank
| Fuel tank material: | Aluminum Alloy | Fuel tank capacity: | 400L |
Chassis parameters
| Permissible load on front axle: | 6500/7000kg | Permissible load on rear axle: | 17500(two-axle group)kg |
| Number of springs: | 4/4/12,11/11/12 | | |
tire
| Tire specifications: | 12.00R20 | Number of tires: | 12 |

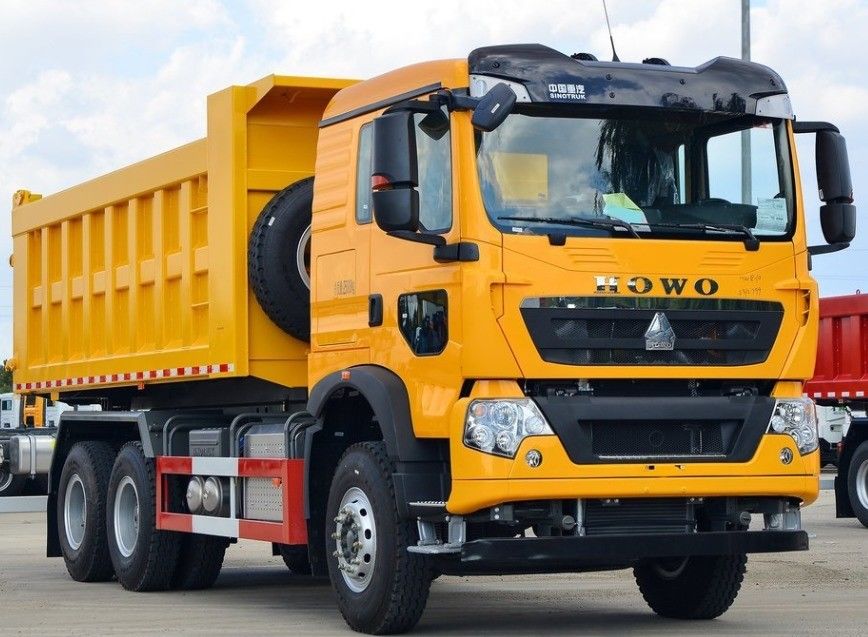

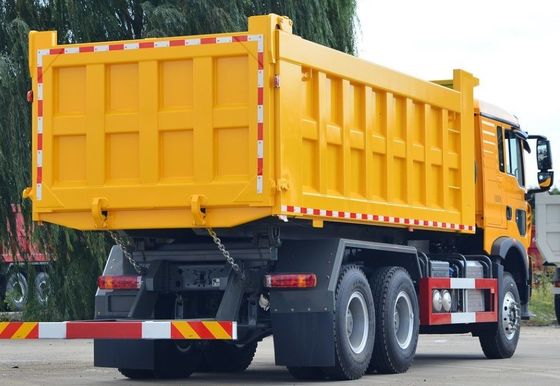

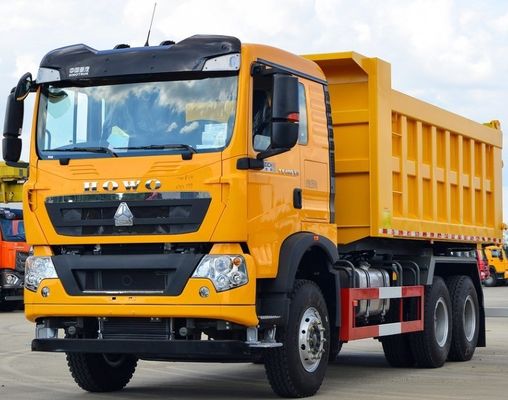

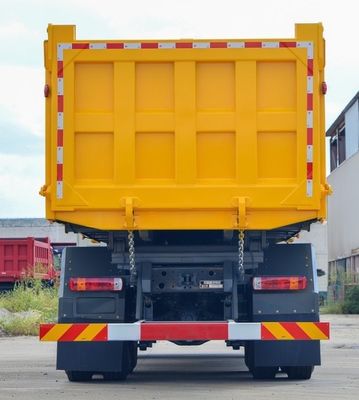

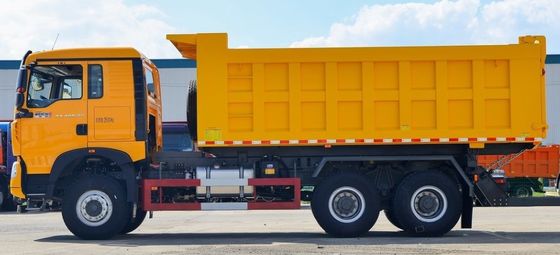

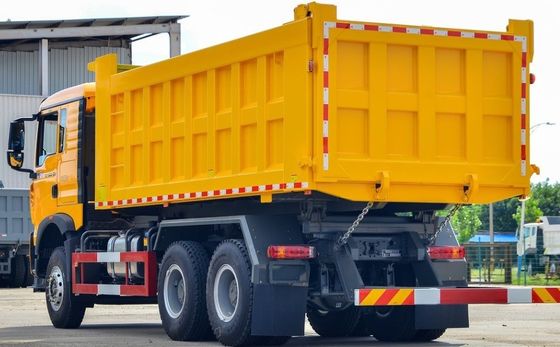

Detailed Photos
Thank You for Choosing Jining Huahang International Trade Co., Ltd.
Q: What is the estimated delivery time for your products? A: The majority of our Heavy Duty Sinotruk Chassis Tipper Dumper Trucks and machinery are in stock and can be delivered within an impressive 7-day timeframe. For custom or specially ordered items, the production lead time is around 30 days, ensuring tailored quality and precision.
Q: What is your annual production capacity for trucks? A: Our robust manufacturing capabilities allow us to produce nearly 30,000 units per year, with a monthly production capacity of approximately 5,000 units. This ensures a steady supply and timely deliveries.
Q: How do you maintain the high quality of your products? A: At Jining Huahang International Trade Co., Ltd., we maintain a standard production workshop staffed by highly trained workers. Every product undergoes a rigorous inspection process, and our professional reconditioning ensures that each truck and piece of machinery meets the highest industry standards.
Q: Are custom orders accepted? What is your Minimum Order Quantity (MOQ)? A: Absolutely, we welcome custom orders. Our Minimum Order Quantity (MOQ) is remarkably low at just 1 unit, making it convenient for customers with varied needs.
