Model NO.: | 8x4 Dump Truck | Power: | Diesel |
---|---|---|---|
Load Capacity: | 31-40t | Emission Standard: | Euro 3 |
Drive Wheel: | 8×4 | Engine Capacity: | >8L |
Seats: | ≤5 | Horsepower: | 451-500hp |
Tire Certification: | ECE, GCC, ISO, DOT | Tire Design: | Tubeless |
Dumping Type: | Front Lifting Style | Condition: | New |
Tyre: | New | Steering System: | Hydraulic Steering With Power Assistance |
Chassis Brand: | Sinotruk Chassis | Color: | Customized |
Cargo Box Material: | Carbon Steel | Transport Package: | Naked Packing |
Specification: | 11.00m*2.55m*3.45m | Trademark: | Shacman |
Origin: | Shandong China | HS Code: | 8708991000 |
Supply Ability: | 1000pieces/Year | Package Size: | 1100.00cm * 250.00cm * 345.00cm |
Package Gross Weight: | 13570.000kg | After-sales Service: | 6 Months |
Warranty: | 6 Months | Transmission Type: | Manual |
Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
: | Initial Payment Full Payment | Currency: | US$ |
Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
driver license: | A1,A2,B2 | Announcement Model: | SX3318DT406TL |
Drive type: | 8X4 | Wheelbase: | 1800+3975+1400mm |
engine: | Weichai WP12NG380E51 | Gearbox: | Fast 12JSD180T |
Rear axle ratio: | 5.262 | Body length: | 10.75 m |
Body width: | 2.55 m | Ride height: | 3.45 m |
Front track: | 2036/2036mm | Rear track: | 1860/1860mm |
Vehicle weight: | 15.5 tons | Rated load: | 15.37 tons |
Total mass: | 31 tons | Tonnage level: | Heavy Truck |
Approach Angle: | 28 degrees | Departure angle: | 55 degrees |
Origin: | Xi'an, Shaanxi | Market segments: | Heavy load transportation |
Remark: | Metal bumper, air main seat, hydraulic suspension, electric air conditioner, electric window roller, Tianxing Jianzhiya version BD vehicle terminal, domestic steering gear, desert air filter, domestic clutch, domestic four-channel ABS, three-stage pedal, transmission with QH50 power take-off, reinforced drive shaft, water tank protection grille, telescopic shaft shift, 180Ah maintenance-free battery | Version: | Super version |
Overall speed ratio: | 5.262 | Fuel Type: | Liquefied Natural Gas (LNG) |
engine model: | Weichai WP12NG380E51 | Engine Brand: | Weichai |
Number of cylinders: | 6 cylinders | Fuel type: | Liquefied Natural Gas (LNG) |
Displacement: | 11.596L | Emission Standards: | National Five |
Maximum horsepower: | 380 hp | Maximum output power: | 280kW |
Maximum Torque: | 1700N·m | Maximum torque speed: | 1200-1500rpm |
Rated speed: | 1900rpm | Engine Type: | Single point injection oxidation catalyst |
Length of cargo box: | 7.8 m | Cargo box width: | 2.35 m |

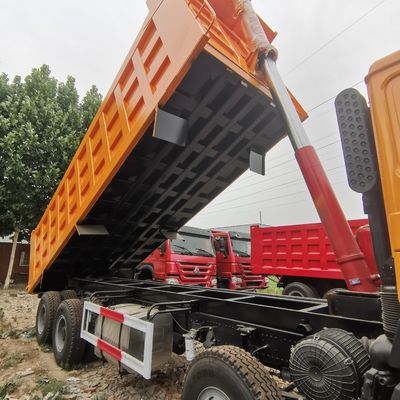

Cargo box height: | 1.5 m | Cargo box form: | Self-unloading |

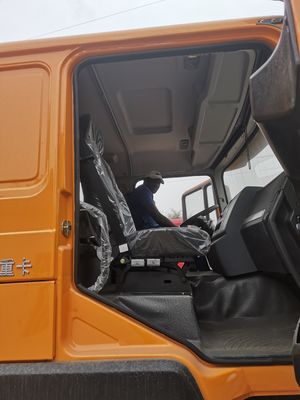

Cab: | Mid-length half-high top | Cab suspension: | Four-point airbag suspension |
Driver's seat type: | Airbag shock absorbing seat | | |
Gearbox Model: | Fast 12JSD180T | Gearbox brand: | Fast |
Forward gears: | 12 gears | Number of downs: | 2 |
Fuel tank capacity: | 500L | | |
Frame size: | 850×320 (8+7+8)mm | Front axle description: | MAN9.5T |
Permissible load on front axle: | 6500/6500kg | Rear Axle Description: | 16T MAN double-stage casting bridge |
Permissible load on rear axle: | 18000(two-axle group)kg | Speed ratio: | 5.262 |

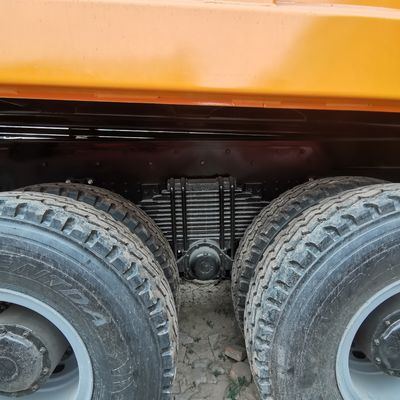

Suspension type (front/rear): | Front and rear multi-leaf springs, four main leaves + four riding horses | Number of springs: | Left 14 Right 13/Left 14 Right 13/12,14/14/12 |
Tire specifications: | 11.00-20 18PR,11.00R20 18PR,12.00-20 18PR,12.00R20 18PR | Number of tires: | 12 |
Jining Huahang International Trade Co., Ltd. stands as a distinguished leader in the exportation of new and used trucks, advanced construction machinery, and versatile semitrailers. With over 15 years of unparalleled expertise in trailer manufacturing and 8 years of excelling in marketing pre-owned trucks and machinery, our name is synonymous with quality and reliability.
At Jining Huahang International Trade Co., Ltd., meticulous attention to detail is our hallmark. Every vehicle undergoes a comprehensive road test inspection by our team of expert engineers prior to delivery, ensuring that only the highest-quality vehicles reach our respected customers.
With our fleet of meticulously perfected vehicles, we proudly uphold the superior quality of our trucks and trailers. We offer a SIX-Month Warranty on all our products, underscoring our mission: 'Buy Easily, Service Assured.' This reflects our steadfast dedication to customer satisfaction, which remains our utmost priority.
