High Capacity Air Suspension Seat CNG Tractor for Heavy Duty Towing Load Capacity 31-40t

High Capacity Air Suspension Seat CNG Tractor for Heavy Duty Towing Load Capacity 31-40t
High Capacity Air Suspension Seat CNG Tractor for Heavy Duty Towing Load Capacity 31-40t High Capacity Air Suspension Seat CNG Tractor for Heavy Duty Towing Load Capacity 31-40t High Capacity Air Suspension Seat CNG Tractor for Heavy Duty Towing Load Capacity 31-40t High Capacity Air Suspension Seat CNG Tractor for Heavy Duty Towing Load Capacity 31-40t

Large Image :  High Capacity Air Suspension Seat CNG Tractor for Heavy Duty Towing Load Capacity 31-40t

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

High Capacity Air Suspension Seat CNG Tractor for Heavy Duty Towing Load Capacity 31-40t

Description
Model NO.: ZZ4257N3247E1H Power: CNG/Gas
Load Capacity: 31-40t Emission Standard: Euro 5
Drive Wheel: 6×4 Seats: ≤5
Horsepower: >450hp Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: New Usage: Towing Semi Trailer

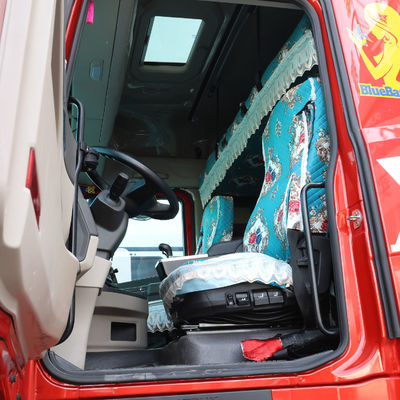

Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 6.8x2.5x3.8m Trademark: Faw
Origin: China HS Code: 8704109000
Supply Ability: 1000pieces/Year Package Size: 6929.00cm * 249.00cm * 329.00cm
Package Gross Weight: 8800.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

High Torque CNG Tractor with Air Suspension Heavy Duty Towing

Unveiling the Versatility of Our Product Applications

1. Insight into the Definition of a Tractor
A tractor is a versatile light truck, meticulously engineered to tow diverse vehicles or objects on the road. Equipped with one or more sets of wheels and axles, it is a pivotal asset in heavy transport. Its typical uses include hauling semi-trailers, luxury yachts, and transporting construction machinery.
2. Understanding the Tractor's Structure
A tractor usually comprises essential components like the engine, transmission, tires, and frame. To boost functionality and control, it may also feature additional devices such as tow hooks, locking systems, and sophisticated remote controls.
3. Diverse Application Fields of Tractors
1. Transportation: Tractors are indispensable in the long-distance freight industry. They proficiently tow semi-trailers and large trucks, ensuring goods reach their destinations securely and punctually.
2. Construction Field: In the construction industry, tractors are vital for towing various heavy machinery, including excavators, bulldozers, and cranes.
High Torque CNG Tractor with Air Suspension Heavy Duty Towing
High Torque CNG Tractor with Air Suspension Heavy Duty Towing
High Torque CNG Tractor with Air Suspension Heavy Duty Towing
High Torque CNG Tractor with Air Suspension Heavy Duty Towing

High Torque CNG Tractor with Air Suspension Heavy Duty Towing
High Torque CNG Tractor with Air Suspension Heavy Duty TowingHigh Torque CNG Tractor with Air Suspension Heavy Duty TowingHigh Torque CNG Tractor with Air Suspension Heavy Duty TowingHigh Torque CNG Tractor with Air Suspension Heavy Duty Towing
Basic Information

driver license:
A2
Announcement Model:
ZZ4256W324HF1B
Drive type:
6X4
Wheelbase:
3225+1350mm
engine:
Sinotruk MC13H.54-61
Gearbox:
Sinotruk HW25716XAL
Rear axle ratio:
2.71
Body length:
6.925 m
Body width:
2.496 m
Ride height:
3.29 m
Front track:
2020mm
Rear track:
1830/1830mm
Vehicle weight:
8.8 tons
Total mass:
25 tons
Total traction mass:
40 tons
Maximum speed:
110km/h
Market segments:
Transportation of daily industrial products
Origin:
Zhangqiu, Shandong
Tonnage level:
Heavy Truck
Remark:
The speed ratio can be selected as 2.85/3.08/3.36/3.7/4.11.
Fuel Type:
diesel fuel



Engine parameters

engine model:
Sinotruk MC13H.54-61
Engine Brand:
Sinotruk
Number of cylinders:
6 cylinders
Fuel type:
diesel fuel
Cylinder arrangement:
In-line
Displacement:
13.02L
Emission Standards:
National VI
Maximum horsepower:
540 hp
Maximum output power:
400kW
Technical route:
Common Rail SCR

Cab parameters

Cab:
High Top
Number of passengers allowed:
2 people
Number of Seat Rows:
Half row



Gearbox parameters

Gearbox Model:
Sinotruk HW25716XAL
Gearbox brand:
Sinotruk
Shifting method:
AMT
Forward gears:
16 levels
Reverse gear number:
2



tank

Fuel tank capacity:
860+240L



Chassis parameters

Front axle description:
7.1 ton disc front axle
Rear Axle Description:
MAN 12 ton drum/disc rear axle
Permissible load on front axle:
18000(two-axle group)kg
Permissible load on rear axle:
7000kg
Speed ratio:
2.71
Number of springs:
2/3, 3/5
Saddle:
90#



tire

Number of tires:
10
Tire specifications:
12R22.5


Our State-of-the-Art Factory


High Torque CNG Tractor with Air Suspension Heavy Duty Towing


Efficient Shipment Processes

We typically ship our trucks via RO-RO or bulk vessels. For added convenience, special container shipping options are also available.
High Torque CNG Tractor with Air Suspension Heavy Duty Towing


Genuine Original Spare Parts
We provide authentic spare parts supported by a comprehensive after-sales service system. Our After-market Division excels in service delivery, utilizing an efficient supply chain to ensure rapid parts distribution and ultimate customer satisfaction.
High Torque CNG Tractor with Air Suspension Heavy Duty Towing

Our Premier Product Line
High Torque CNG Tractor with Air Suspension Heavy Duty Towing
Thank You for Choosing Jining Huahang International Trade Co., Ltd.
Q: What is the expected delivery time?
A: For in-stock trucks and machinery, delivery occurs within 7 days. Special orders generally require around 30 days for production.

Q: What is your annual production capacity for trucks?
A: We manufacture nearly 30,000 units annually, updating approximately 5,000 units each month.

Q: How do you ensure the quality of your products?
A: Our factory features a state-of-the-art production workshop, staffed by a highly skilled workforce. Each product undergoes a rigorous inspection process to ensure excellence. We meticulously recondition our trucks and machinery on a professional line.

Q: Are custom orders accepted? What is your minimum order quantity (MOQ)?
A: Yes, we accept custom orders. Our minimum order quantity (MOQ) is 1 unit.
