Model NO.: | 6x4 Dump Truck | Power: | Diesel |
---|---|---|---|
Load Capacity: | 21-30t | Emission Standard: | Euro6 |
Drive Wheel: | 6×4 | Engine Capacity: | 4-6L |
Seats: | ≤5 | Horsepower: | 550 |
Tire Certification: | ISO | Tire Design: | Tubeless |
Dumping Type: | Front Lifting Style | Condition: | Used |
Tyre: | New | Steering System: | Hydraulic Steering With Power Assistance |
Chassis Brand: | Sinotruk Chassis | Color: | Customized |
Cab: | Air Conditioner | Cargo Box Material: | Carbon Steel |
Electric System: | Battery:2X12V/165ah; Alternator:28V-1500 Kw; Sta | Transport Package: | Naked Packing |
Specification: | 8.5x2.6x3.6m | Trademark: | Shacman |
Origin: | China | HS Code: | 870423009 |
Supply Ability: | 10000pieces/Year | Package Size: | 686.00cm * 255.00cm * 320.00cm |
Package Gross Weight: | 10600.000kg | After-sales Service: | 6 Months |
Warranty: | 6 Months | Transmission Type: | Manual |
Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
: | Initial Payment Full Payment | Currency: | US$ |
Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
driver license: | A2 | Announcement Model: | SX4259XD4C1 |
Drive type: | 6X4 | Wheelbase: | 3375+1400mm |
engine: | Weichai WP13.550E62 | Gearbox: | Fast C16JSDQXL260T |
Rear axle ratio: | 5.26 | Body length: | 6.86 m |
Body width: | 2.55 m | Ride height: | 3.2 m |
Front track: | 2036mm | Rear track: | 1860/1860mm |
Vehicle weight: | 10.6 tons | Total mass: | 25 tons |
Total traction mass: | 38.27 tons | Maximum speed: | 89km/h |
Market segments: | Logistics distribution | Origin: | Xi'an, Shaanxi |
Tonnage level: | Heavy Truck | Version: | Super version |
Fuel Type: | diesel fuel | | |

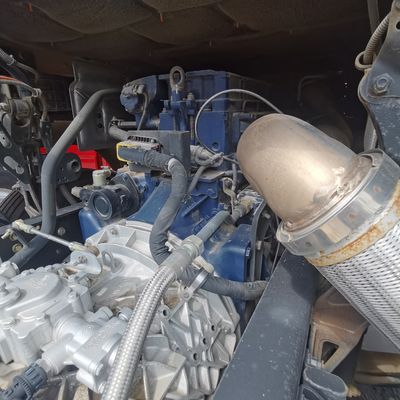

engine model: | Weichai WP13.550E62 | Engine Brand: | Weichai |
Number of cylinders: | 6 cylinders | Fuel type: | diesel fuel |
Cylinder arrangement: | In-line | Displacement: | 12.54L |
Emission Standards: | National VI | Maximum horsepower: | 550 hp |
Maximum output power: | 405kW | Maximum Torque: | 2550N·m |
Maximum torque speed: | 950-1400rpm | Rated speed: | 1900rpm |
Cab: | High Top | Number of passengers allowed: | 2 people |
Number of Seat Rows: | Half row | Driver's seat type: | Airbag shock absorbing seat |

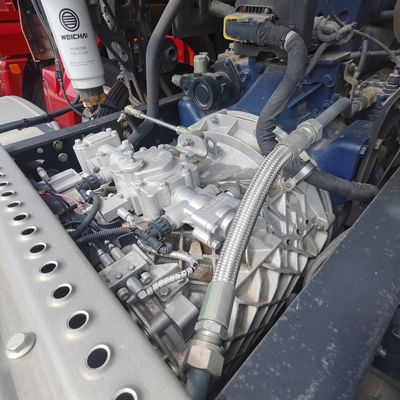

Gearbox Model: | Fast C16JSDQXL260T | Gearbox brand: | Fast |
Shifting method: | Manual | Forward gears: | 16 levels |
Reverse gear number: | 4 | | |
Fuel tank/gas tank material: | Aluminum Alloy | Fuel tank capacity: | 800L |
Permissible load on front axle: | 7000kg | Permissible load on rear axle: | 18000(two-axle group)kg |
Speed ratio: | 4.769 | Suspension type: | 5.26 |
Number of springs: | 10/12 | Saddle: | 90# |
Number of tires: | 10 | Tire specifications: | 12R22.5 18PR |
Our exceptional track record is a testament to our unwavering dedication! Annually, we have triumphantly exported over 1,000 Sinotruk Chassis Used Tipper Trucks to a multitude of African nations. This impressive feat highlights our unparalleled commitment to quality, reliability, and excellence in heavy-duty transportation solutions. Our remarkable achievements consistently surpass industry standards, ensuring we meet and exceed the diverse needs of our global clientele with unparalleled service and superior products.
