Model NO.: | ZZ4257N3247E1H | Power: | Diesel |
---|---|---|---|
Load Capacity: | 31-40t | Emission Standard: | Euro 5 |
Drive Wheel: | 6×4 | Engine Capacity: | >8L |
Seats: | ≤5 | Horsepower: | 351-450hp |
Tire Certification: | ECE, GCC, ISO, DOT | Tire Design: | Tubeless |
Dumping Type: | Front Lifting Style | Condition: | New |
Tyre: | New | Steering System: | Hydraulic Steering With Power Assistance |
Chassis Brand: | Sinotruk Chassis | Color: | Customized |
Cargo Box Material: | Carbon Steel | Transport Package: | Naked Packing |
Specification: | 11m*2.55m*3.45m | Trademark: | Sinotruk |
Origin: | Shandong China | HS Code: | 8708991000 |
Supply Ability: | 1000pieces/Year | Package Size: | 700.00cm * 250.00cm * 345.00cm |
Package Gross Weight: | 7500.000kg | After-sales Service: | 6 Months |
Warranty: | 6 Months | Transmission Type: | Manual |
Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
: | Initial Payment Full Payment | Currency: | US$ |
Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Product Description |
Model | ZZ3257N3447A1 GCW40000kgs | |
Engine | Engine model | WD615.69, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system |
Maximum output | 336PS (247kW) at 2200 rpm | |
Maximum torque | 1350Nm at 1100-1600rpm | |
Bore | 126mm Stroke: 130mm | |
Displacement | 9.726L | |
Compression ratio | 17.5:1 | |
Specific fuel consumption | ≤198g/kWh | |
Engine oil filling quantity | 23L | |
Air compressors | WABCO Twin cylinders air compressors; | |
Cooling system filling quantity (long-term filling) | 40L | |
Clutch | SINOTRUK's 430C diaphragm spring clutch, hydraulically operating with air assistance | |
Transmission | Transmission, model HW19710, 10 forward and 2 reverse Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R) | |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
Front Axle | New HF9 series, with drum brake system Steering with double T-cross section beam | |
Rear Axle | HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. Ratio: 5.73 | |

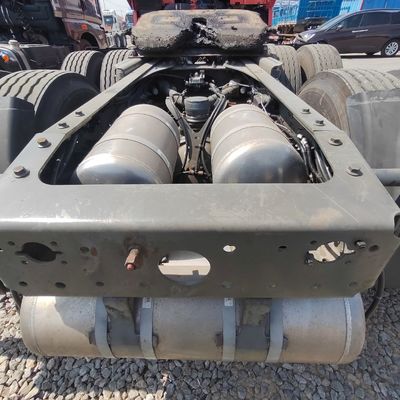

Chassis | Frame: | High-strength U-profile frame, all cold riveted cross members and reinforced subframe |
Front suspension: | semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer | |
Rear suspension: | semi-elliptic leaf springs and bogie springs | |
Spare wheel carrier: | with one spare wheel | |
Steering | ZF8098, hydraulic steering with power assistance Ratio: 22.2-26.2:1 | |
Braking System | Front and rear drum brake, four-circuit protection valve | |
Service brake | dual circuit compressed air brake | |
Parking Brake | spring energy, compressed air operating on rear wheels | |
Auxiliary brake | engine exhaust brake | |
Wheel & Types | Rims | 8.5-20,10 hole-steel |
Types | 12.00R20, 12.00R22.5, 315/80R22.5, 12.00-20 |
