Experience the unrivaled power and dependability of the Sinotruk HOWO 6X4 371HP Heavy Duty Dump Truck, designed to exceed expectations with its 10-tire robustness. This exceptional machine offers an 18-25cbm capacity, ensuring it seamlessly meets the rigorous demands of heavy-duty applications. Built for outstanding performance, this truck guarantees your hauling needs are met with unmatched precision and power.
Product Description
Presenting our adaptable Dump Truck, commonly known as Dumper Truck, Tipper Truck, or simply Tipper, meticulously engineered to meet all your heavy-duty hauling demands.
Expertly designed, our dump trucks boast an extraordinarily robust chassis, a spacious tipping box, and a powerful hydraulic cylinder. These components make them ideal for transporting materials like sand, stone, and gravel. As a premier supplier, we provide various configurations such as 4x2, 6x4, and 8x4 models, customized to meet your specific needs and ensure peak performance.
Key Advantages of Our Dump Truck:
1. Ideal for transporting earthwork, gravel, bulk materials, and more.
2. Efficient unloading at specific angles, dramatically enhancing production efficiency and minimizing downtime.
3. Cost-effective design that lowers transportation costs, offering maximum value for your investment.
4. Customizable design to accommodate diverse customer requirements, ensuring flexibility and adaptability for various applications.
Dump Truck Description:
Equipped with an automatic tipping mechanism, the loading carriage allows unloading at a predetermined angle, saving substantial time and labor. This innovation boosts production efficiency, shortens the transportation cycle, and reduces transportation costs, making it indispensable in specialized transportation and ensuring seamless operations.
1. Appearance-Based Classification: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck.
2. Purpose-Based Classification: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck.
3. Driving Mode-Based Classification: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks.
4. Use-Based Classification: mining dump trucks for transporting coal, sand, and gravel; environmental sanitation and green dump trucks for garbage transportation, and more.
5. Rollover Direction Classification: front lift and rollover dump trucks; two-way side dump trucks primarily used in construction projects.

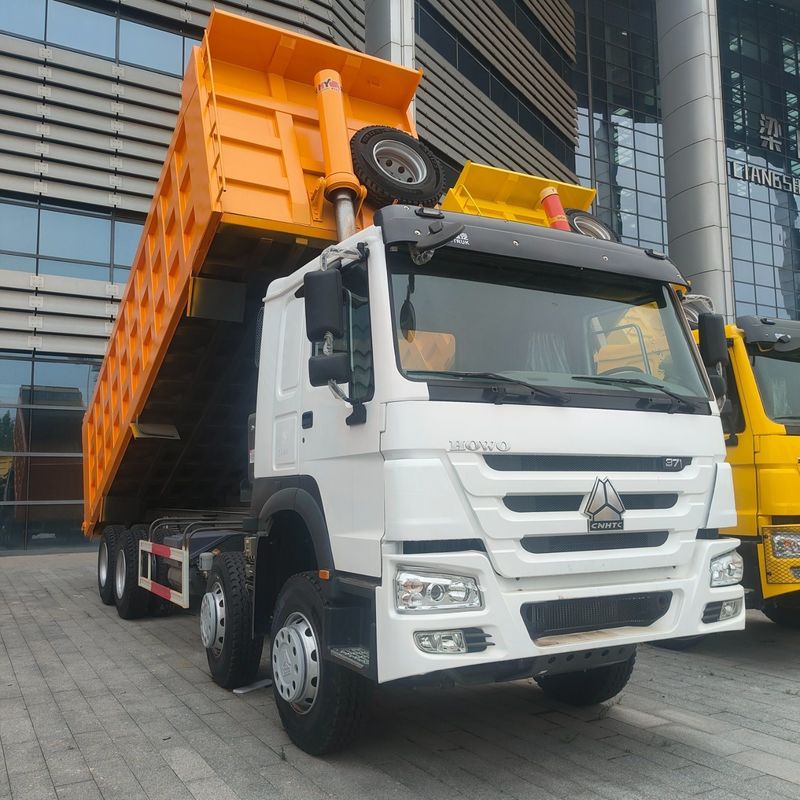

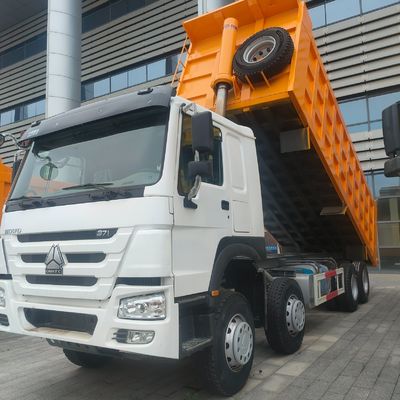

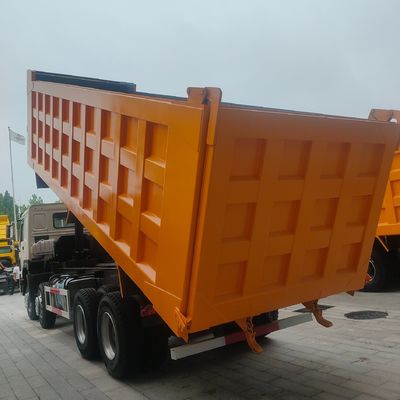

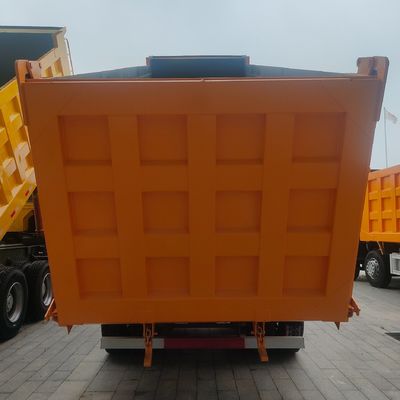

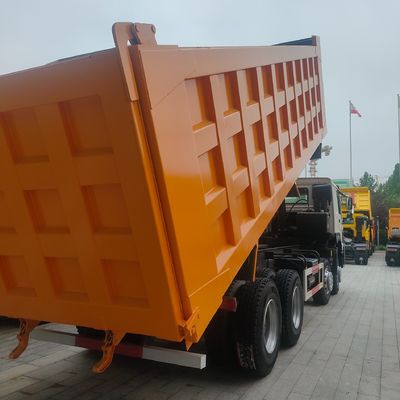

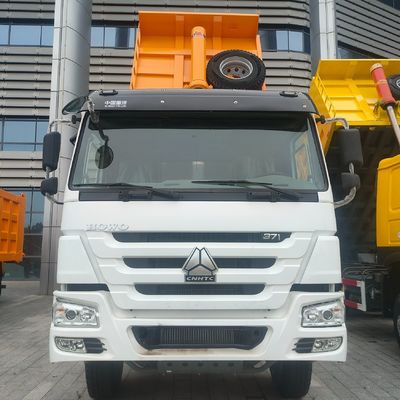

Detailed Photos
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Main Specifications:
Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System:
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch:
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission:
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle:
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle:
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis:
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System:
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System:
| Capable of maintaining the sound level as low as possible. |
Steering:
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper:
| Installed heavy duty front and rear steel bumpers |
Brake System:
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres:
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System:
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System:
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions:
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Cargo Body:
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed enterprise, Jining Huahang International Trade Co., Ltd., shines as a beacon of expertise in the global exportation of new trucks, pre-owned trucks, state-of-the-art construction machinery, and versatile semitrailers. With over 15 years of unparalleled experience in trailer manufacturing and 8 years of stellar performance in marketing used trucks and machinery, we proudly stand at the forefront of the industry.
Our company prioritizes meticulous attention to every detail of our vehicles. Prior to delivery, each vehicle undergoes a rigorous road test conducted by our skilled engineers to ensure top-notch performance and reliability.
Through our commitment to excellence, we have honed the perfection of our vehicles, enabling us to guarantee the exceptional quality of our trucks and trailers. We confidently offer our customers a Three-Month Warranty on all trucks and trailers. Our company ethos, 'Buy Easily, Service Assured,' encapsulates our dedication to customer satisfaction, which remains our highest pursuit.
Year after year, we've proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks with Hydraulic Steering and Power Assistance to various countries across Africa, solidifying our reputation for excellence. This remarkable feat underscores our unwavering commitment to delivering unparalleled quality and reliability in commercial transportation solutions. With each shipment, we strengthen our bonds with international partners, ensuring that our trucks drive the success of businesses across the continent. This consistent achievement highlights our dedication to innovation, durability, and superior performance, making us a trusted ally in the global market. At Jining Huahang International Trade Co., Ltd., we believe that every mile driven by our trucks is a testament to our craftsmanship and our promise to keep businesses moving forward.
Each of our premium trucks undergoes a meticulous, multi-point inspection process before delivery, ensuring top-tier performance and uncompromised safety.
1. Engine: Our rigorous checks include verifying that the engine starts seamlessly, inspecting for any signs of oil leakage, and monitoring for black, blue, or white smoke emission.
Ensuring zero emissions of black, blue, or white smoke is paramount for both optimal performance and adherence to stringent environmental standards.
2. Transmission: We meticulously verify the precision of transmission gear positions, confirming smooth and flawless shifting without any issues.
3. Axle: We conduct thorough inspections to check for any oil leaks and ensure that the axle operates normally and efficiently during driving.
4. Frame: We perform detailed inspections to detect any signs of deformation, ensuring the frame's structural integrity and reliability.
5. Headlights and Wiper: Our inspection guarantees that both headlights and wipers are functioning perfectly, ensuring safe and reliable operation.
Thank You for Choosing Jining Huahang International Trade Co., Ltd.
Q: How about the delivery time?
A: We are pleased to inform you that most of our Heavy Duty Dump Trucks with Sinotruk Chassis Brand and Hydraulic Power Steering are readily available in stock, allowing us to deliver them to you within an impressive 7-day timeframe. For specially ordered items, we typically require around 30 days for production to ensure you receive precisely what you need, tailored to your specifications.
Q: How many units of trucks do you produce annually?
A: We are proud of our formidable production capabilities, with an annual manufacturing output of nearly 30,000 units. Each month, we update approximately 5,000 units, underscoring our commitment to continual innovation and superior quality.
Q: How do you control the quality of your products?
A: Our factory is equipped with a cutting-edge production workshop, staffed by highly skilled workers. Every product undergoes a rigorous inspection process. We professionally recondition our trucks and machines to ensure they meet the highest quality standards, reflecting our dedication to excellence.
Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we enthusiastically accept custom orders. Our minimum order quantity (MOQ) is just 1 unit, providing you with unmatched flexibility and customization options to meet your unique requirements.
