Discover the ultimate power and unwavering reliability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Expertly crafted for unparalleled performance, this colossal vehicle boasts an impressive 18-25cbm capacity, effortlessly meeting the demands of any heavy-duty task with ease and efficiency.
Exquisite Product Description
Our versatile Dump Truck, also known as a Dumper Truck, Tipper Truck, or Tipper, is meticulously engineered for precision and efficiency, ensuring it meets all your heavy-duty hauling requirements seamlessly.
Designed with pinpoint accuracy, our dump trucks feature an exceptionally durable chassis, a spacious tipping box, and a robust hydraulic cylinder. These elements make them ideal for transporting sand, stone, gravel, and other bulk materials. As a premier supplier, we offer a diverse range of configurations including 4x2, 6x4, and 8x4 models, customized to fulfill your specific needs.
Unmatched Key Advantages of Our Dump Truck:
1. Perfect for transporting earthwork, gravel, bulk materials, and more with outstanding efficiency.
2. Facilitates efficient unloading at a predetermined angle, significantly boosting production efficiency.
3. Highly cost-effective, reducing overall transportation expenses.
4. Customizable design to cater to a wide range of customer requirements.
Comprehensive Dump Truck Description:
The automatic tipping mechanism of the loading carriage enables unloading at a specific angle, saving substantial time and labor. This enhances production efficiency, shortens the transportation cycle, and lowers transportation costs, making it indispensable in specialized transportation applications.
1. Appearance-Based Classification: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck.
2. Purpose-Based Classification: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck.
3. Driving Mode-Based Classification: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks.
4. Use-Based Classification: mining dump trucks for transporting coal, sand, and gravel; environmental sanitation and green dump trucks for garbage transportation, etc.
5. Rollover Direction Classification: front lift and rollover dump trucks; two-way side dump trucks primarily used in construction projects.

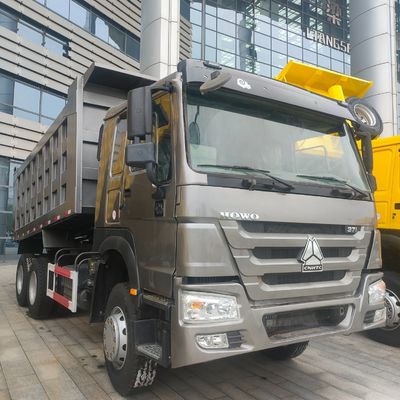

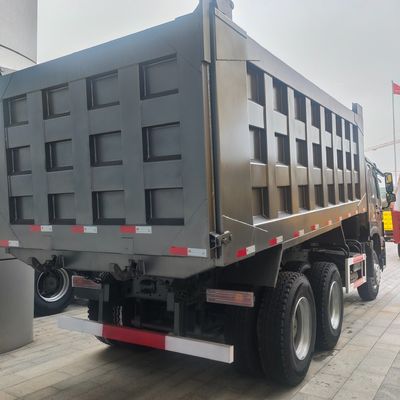

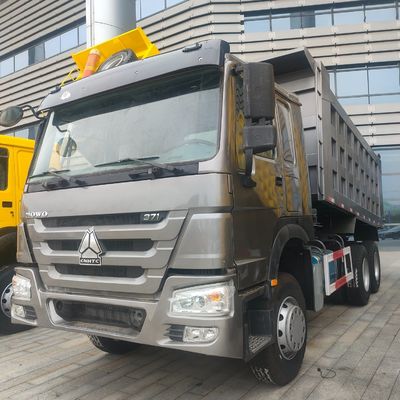

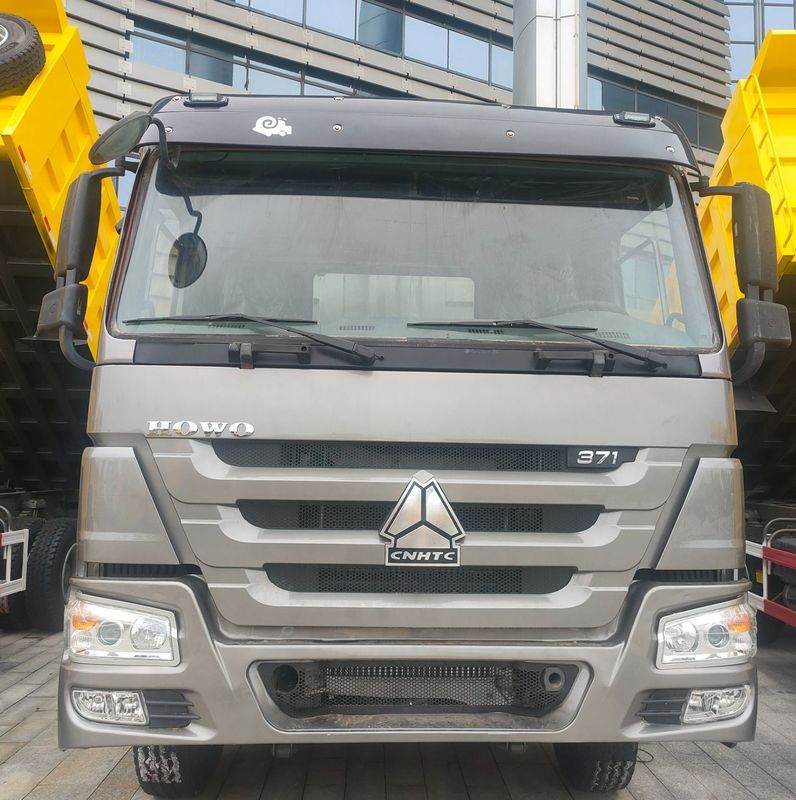

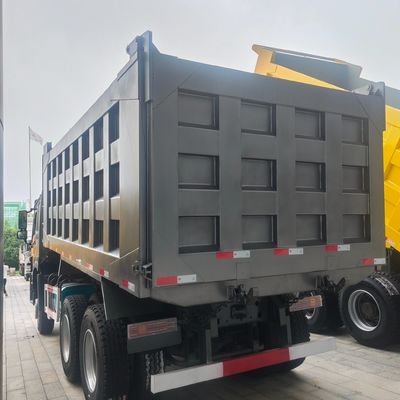

Captivating Detailed Photos
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Main Specifications:
Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System:
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch:
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission:
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle:
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle:
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis:
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System:
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System:
| Capable of maintaining the sound level as low as possible. |
Steering:
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper:
| Installed heavy duty front and rear steel bumpers |
Brake System:
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres:
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System:
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System:
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions:
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Cargo Body:
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed enterprise, Jining Huahang International Trade Co., Ltd., shines as a beacon of expertise in the global exportation of new and pre-owned trucks, state-of-the-art construction machinery, and versatile semitrailers. With over 15 years of unparalleled experience in trailer manufacturing and 8 years of stellar performance in marketing used trucks and machinery, we proudly stand at the forefront of the industry.
Our company prioritizes meticulous attention to every detail of our vehicles. Prior to delivery, each vehicle undergoes a rigorous road test conducted by our skilled engineers, ensuring top-notch performance and reliability.
Through our unwavering commitment to excellence, we have honed the perfection of our vehicles, enabling us to guarantee the exceptional quality of our trucks and trailers. We confidently offer our customers a Three-Month Warranty on all trucks and trailers. Our company ethos, 'Buy Easily, Service Assured,' encapsulates our dedication to customer satisfaction, which remains our highest pursuit.
Year after year, we've proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks, equipped with advanced Hydraulic Steering and Power Assistance, to various countries across Africa. This remarkable achievement has solidified our reputation for unwavering excellence and commitment to quality.
Each of our Clean HOWO Dump Truck Chassis with New Tyres and Hydraulic Steering undergoes a meticulous and thorough inspection before delivery, ensuring they meet the pinnacle of performance and safety standards.
1. Engine: Our experts meticulously inspect the engine to guarantee it starts effortlessly and is completely free from oil leaks, as well as any black, blue, or white smoke.
Ensuring the engine emits no black, blue, or white smoke is vital for optimal performance and compliance with stringent environmental standards.
2. Transmission: We validate the precision of the transmission gear positions, ensuring it shifts smoothly and seamlessly without any issues.
3. Axle: Our thorough checks for oil leaks ensure that the axle operates efficiently and reliably during driving.
4. Frame: Our specialists inspect the frame meticulously for any signs of deformation, confirming absolute structural integrity.
5. Headlights and Wipers: We ensure the proper functioning of headlights and wipers, guaranteeing safe and dependable operation at all times.
Thank You for Choosing Jining Huahang International Trade Co., Ltd.
Q: How about the delivery time?
A: We pride ourselves on speedy delivery! Most of our trucks and machines are readily available in stock, allowing us to deliver to you within just 7 days. For specially ordered items, we typically require around 30 days for production.
Q: How many units of trucks do you produce annually?
A: We boast an impressive production capacity, manufacturing almost 30,000 units annually, with nearly 5,000 units being updated each month to meet the latest standards and demands.
Q: How do you control the quality of your products?
A: Quality is our top priority. Our factory is equipped with a state-of-the-art production workshop, and our workers are highly trained professionals. Each product undergoes a meticulous inspection process, and our trucks and machines are professionally reconditioned to ensure they meet top-notch quality standards.
Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we accept custom orders to meet your specific needs. What's more, our minimum order quantity (MOQ) is just 1 unit, ensuring maximum flexibility for our valued clients.
