Unleash the unparalleled power and reliability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Engineered for excellence, this behemoth boasts a remarkable 18-25cbm capacity, ensuring it meets the demands of any heavy-duty application with ease. Experience the epitome of strength and efficiency in every haul.
Product Description
Our versatile Dump Truck, also referred to as a Dumper Truck, Tipper Truck, or simply Tipper, is meticulously designed to address all your heavy-duty hauling requirements. It's built to perform in the most challenging environments, making it your ultimate partner in heavy-duty transport.
Masterfully crafted, our dump trucks feature an exceptionally robust chassis, a commodious tipping box, and a potent hydraulic cylinder. These elements make them ideal for transporting sand, stone, gravel, and more. As a leading supplier, we provide an array of configurations including 4x2, 6x4, and 8x4 models, tailored to meet your specific needs. Durability and versatility are at the core of our design.
Key Advantages of Our Dump Truck:
1. Ideal for transporting earthwork, gravel, bulk materials, and more. Designed to excel in the most demanding conditions.
2. Efficient unloading at a specific angle, significantly boosting production efficiency. Our design ensures quick and effortless unloading.
3. Economical, reducing transportation costs. Our dump trucks are designed to save you money over the long run.
4. Customizable design to cater to diverse customer requirements. We offer flexibility to meet your specific needs.
Dump Truck Description:
The automatic tipping mechanism of the loading carriage allows for unloading at a predetermined angle, thereby saving substantial time and labor. This enhances production efficiency, shortens the transportation cycle, and cuts down on transportation costs, making it a staple in specialized transportation. It's designed to optimize every aspect of your hauling operation.
1. Appearance-Based Classification: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck. Each type tailored for specific tasks.
2. Purpose-Based Classification: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck. Versatility to suit every industry.
3. Driving Mode-Based Classification: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks. Options to match your operational needs.
4. Use-Based Classification: mining dump trucks for transporting coal, sand, and gravel; environmental sanitation and green dump trucks for garbage transportation, etc. Tailored for specific material handling.
5. Rollover Direction Classification: front lift and rollover dump trucks; two-way side dump trucks primarily used in construction projects. Designed for optimal maneuverability and utility.

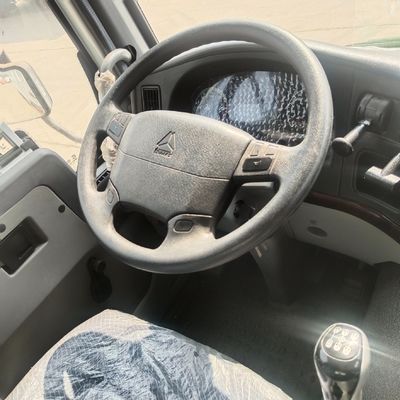

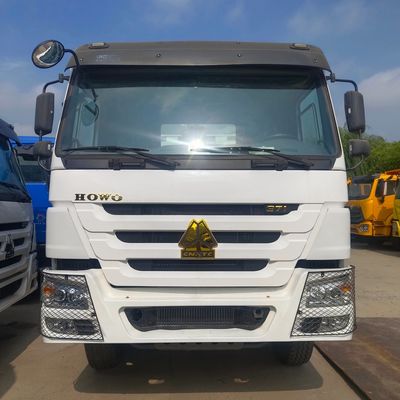

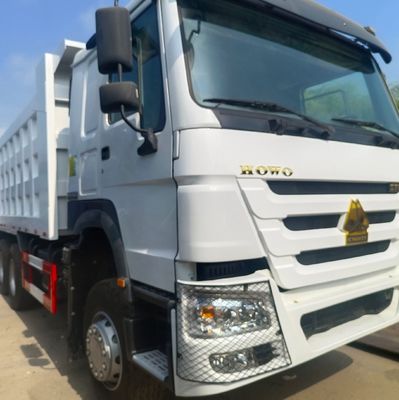

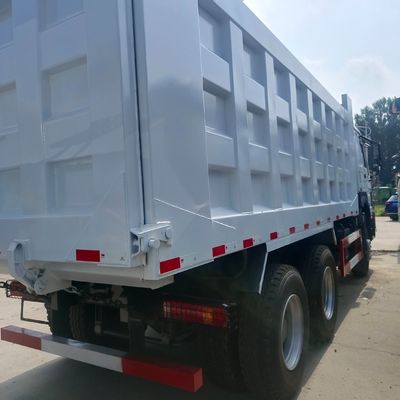

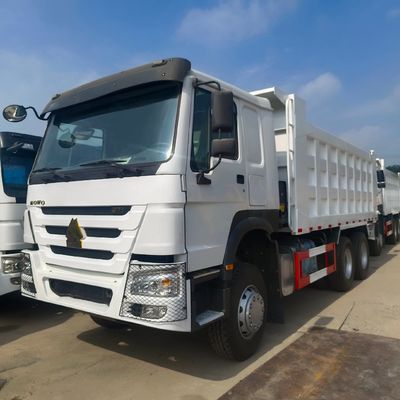

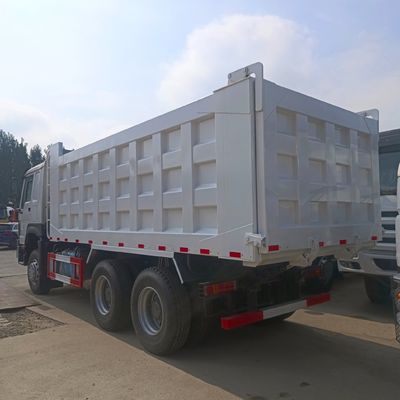

Detailed Photos
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Main Specifications:
Driver's Cab:(One sleeper with A/C). Designed for comfort during long hauls.
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System: Engineered for maximum performance and longevity.
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch: Durable and responsive for smooth operation.
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission: Built for reliable and efficient power transfer.
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle: Designed for robust support and handling.
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle: Ensures stability and durability under heavy loads.
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis: Engineered for strength and resilience.
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System: Maximizes engine efficiency and performance.
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System: Designed to minimize emissions and optimize performance.
| Capable of maintaining the sound level as low as possible. |
Steering: Precision-engineered for responsive handling.
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper: Built to protect and withstand impacts.
| Installed heavy duty front and rear steel bumpers |
Brake System: Advanced braking for reliable stopping power.
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres: Durable and designed for heavy-duty performance.
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System: Ensures optimal air flow for component longevity.
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System: Reliable and efficient electrical components.
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions: Engineered for optimal balance between capacity and maneuverability.
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Cargo Body: Robust and spacious, designed to handle the toughest loads.
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed enterprise, Jining Huahang International Trade Co., Ltd., shines brilliantly as a beacon of expertise in the global exportation of both new and pre-owned trucks, state-of-the-art construction machinery, and versatile semitrailers. With over 15 years of unparalleled experience in trailer manufacturing and 8 years of stellar performance in marketing used trucks and machinery, we proudly stand at the forefront of the industry, setting exemplary standards and proving our mettle every step of the way.
Our company prioritizes meticulous attention to every detail of our vehicles. Prior to delivery, each vehicle undergoes a rigorous road test conducted by our highly skilled engineers, ensuring top-notch performance and unwavering reliability. This thorough inspection process guarantees that our customers receive vehicles that meet the highest standards of quality and safety.
Through our unwavering commitment to excellence, we have perfected the art of vehicle quality, enabling us to guarantee the exceptional performance of our trucks and trailers. We confidently offer our esteemed customers a Three-Month Warranty on all trucks and trailers, underscoring our faith in our products. Our company ethos, 'Buy Easily, Service Assured,' encapsulates our relentless dedication to customer satisfaction, which remains our highest pursuit and the cornerstone of our business.
Year after year, we've proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks, equipped with Hydraulic Steering and Power Assistance, to diverse countries across Africa. This consistent performance has solidified our reputation for unmatched excellence and reliability in the industry.
Each of our trucks undergoes a meticulous inspection process prior to delivery to ensure optimal performance and safety.
1. Engine: We conduct a thorough examination to ensure the engine starts seamlessly and check for any signs of oil leakage or smoke emissions-whether black, blue, or white.
Ensuring no emissions of black, blue, or white smoke is critical for performance and adherence to environmental standards.
2. Transmission: We meticulously verify the accuracy of the transmission gear positions, ensuring smooth and flawless shifting.
3. Axle: We perform a detailed inspection to check for any oil leaks and confirm the axle operates smoothly during driving.
4. Frame: We conduct a comprehensive inspection to detect any signs of deformation, guaranteeing the structural integrity of the frame.
5. Headlights and Wipers: We rigorously ensure that the headlights and wipers are fully operational, providing safe and reliable performance.
Thank You for Choosing Us
Q: How about the delivery time?
A: Most of our trucks and machines are readily available in stock, allowing us to deliver to you within just 7 days. For specially ordered items, we typically require around 30 days for production.
Q: How many units of trucks do you produce annually?
A: We produce almost 30,000 units annually, with nearly 5,000 units being updated each month.
Q: How do you control the quality of your products?
A: Our factory is equipped with a state-of-the-art production workshop, and our workforce is highly skilled. Each product undergoes a rigorous inspection process. We expertly recondition our trucks and machines to ensure they meet the highest quality standards.
Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we accept custom orders to meet your specific needs. Our minimum order quantity (MOQ) is just 1 unit.
