Experience the unrivaled power and steadfast reliability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Designed with precision for superior performance, this colossal vehicle offers an impressive 18-25cbm capacity, effortlessly catering to the needs of any heavy-duty application.
Product Description
Our multi-functional Dump Truck, also known as a Dumper Truck, Tipper Truck, or simply Tipper, is expertly engineered to meet all your heavy-duty hauling demands.
With masterful craftsmanship, our dump trucks boast an exceptionally sturdy chassis, a spacious tipping box, and a powerful hydraulic cylinder. These features make them perfect for transporting materials such as sand, stone, and gravel. As a premier supplier, we offer a variety of configurations including 4x2, 6x4, and 8x4 models, customized to fit your unique requirements.
Key Advantages of Our Dump Truck:
1. Optimal for transporting earthwork, gravel, bulk materials, and more.
2. Efficient unloading at a designated angle, significantly enhancing production efficiency.
3. Cost-effective, reducing overall transportation expenses.
4. Customizable design to suit diverse customer needs.
Dump Truck Description:
The automatic tipping feature of the loading carriage allows for efficient unloading at a pre-set angle, thereby saving significant time and labor. This boosts production efficiency, shortens transportation cycles, and reduces transportation costs, establishing it as a cornerstone in specialized transport.
1. Appearance-Based Classification: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck.
2. Purpose-Based Classification: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck.
3. Driving Mode-Based Classification: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks.
4. Use-Based Classification: mining dump trucks for transporting coal, sand, and gravel; environmental sanitation and green dump trucks for garbage transportation, etc.
5. Rollover Direction Classification: front lift and rollover dump trucks; two-way side dump trucks mainly used in construction projects.

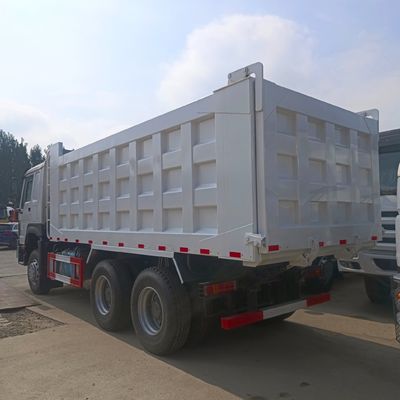

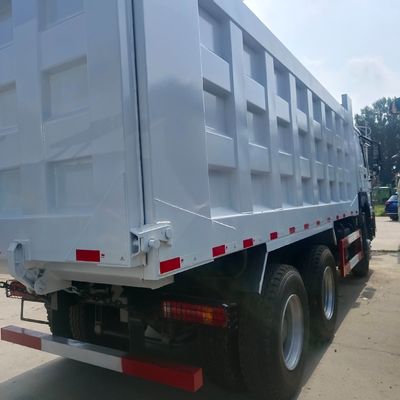

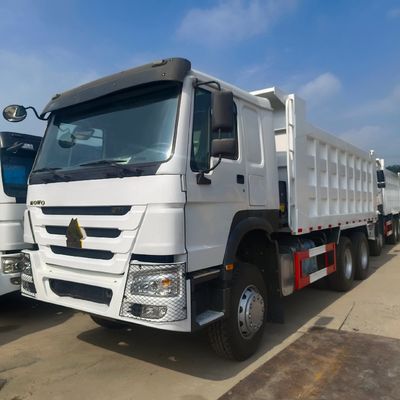

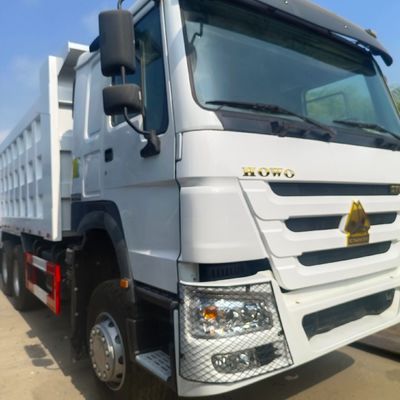

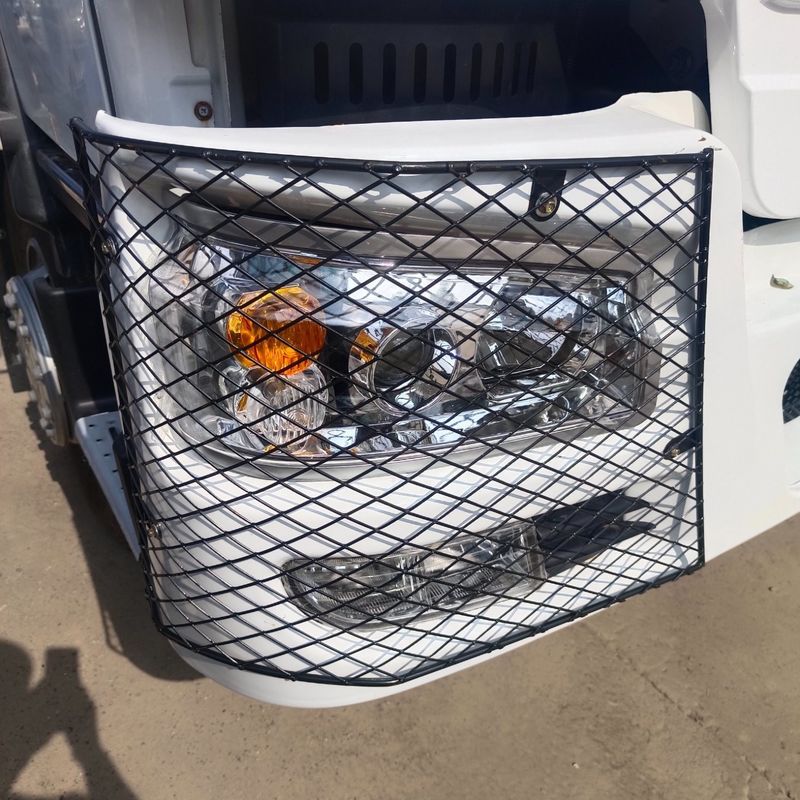

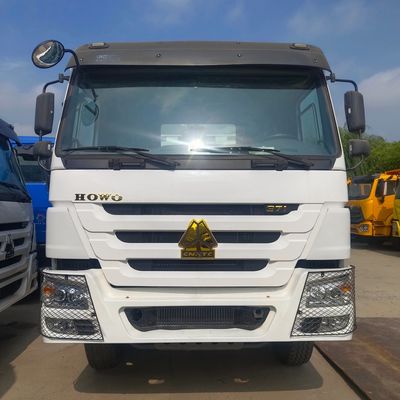

Detailed Photos
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Main Specifications:
Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System:
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch:
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission:
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle:
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle:
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis:
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System:
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System:
| Capable of maintaining the sound level as low as possible. |
Steering:
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper:
| Installed heavy duty front and rear steel bumpers |
Brake System:
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres:
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System:
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System:
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions:
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Cargo Body:
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed enterprise, Jining Huahang International Trade Co., Ltd., shines as a beacon of expertise in the global exportation of new trucks, pre-owned trucks, state-of-the-art construction machinery, and versatile semitrailers. With over 15 years of unparalleled experience in trailer manufacturing and 8 years of stellar performance in marketing used trucks and machinery, we proudly stand at the forefront of the industry.
Our company prioritizes meticulous attention to every detail of our vehicles. Prior to delivery, each vehicle undergoes a rigorous road test conducted by our skilled engineers to ensure top-notch performance and reliability.
Through our unwavering commitment to excellence, we have honed the art of vehicle perfection, enabling us to guarantee the superb quality of our trucks and trailers. With confidence, we offer our valued customers a Three-Month Warranty on all vehicles. Embodying our ethos, 'Buy Easily, Service Assured,' we encapsulate our dedication to customer satisfaction, which remains our highest pursuit.
Year after year, we've proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks with Hydraulic Steering and Power Assistance to various countries across Africa, solidifying our reputation for excellence. These vehicles, renowned for their durability and cutting-edge engineering, have become the backbone of transportation infrastructure on the continent, driving both industrial and economic growth while showcasing our unwavering commitment to quality and reliability.
Every truck we offer is subjected to a rigorous inspection process prior to delivery, ensuring unparalleled performance and safety.
1. Engine: Our experts meticulously assess whether the engine starts effortlessly, and check for oil leaks, as well as emissions of black, blue, or white smoke.
Ensuring the absence of black, blue, or white smoke emissions is crucial for maintaining both performance and adherence to environmental standards.
2. Transmission: We ascertain the precision of transmission gear positions, ensuring smooth and fault-free shifting.
3. Axle: Our thorough checks involve detecting any oil leaks and confirming that the axle functions flawlessly during operation.
4. Frame: We conduct detailed inspections for any signs of deformation, ensuring the frame's structural integrity remains intact.
5. Headlights and Wiper: We ensure that both headlights and wipers are in perfect working condition to guarantee safe and reliable driving experiences.
Thank You for Choosing Jining Huahang International Trade Co., Ltd.
Q: How about the delivery time?
A: Most of our trucks and machines are readily available in stock, allowing us to deliver to you within just 7 days. For specially ordered items, we typically require around 30 days for production.
Q: How many units of trucks do you produce annually?
A: We produce almost 30,000 units annually, with nearly 5,000 units being updated each month.
Q: How do you control the quality of your products?
A: Our factory is equipped with a standard production workshop, and our workers are highly trained. Each product undergoes a meticulous inspection process. We professionally recondition our trucks and machines to ensure top-notch quality.
Q: Do you accept custom orders? What is your MOQ?
A: Yes, we do accept custom orders. Our minimum order quantity (MOQ) is just 1 unit.
