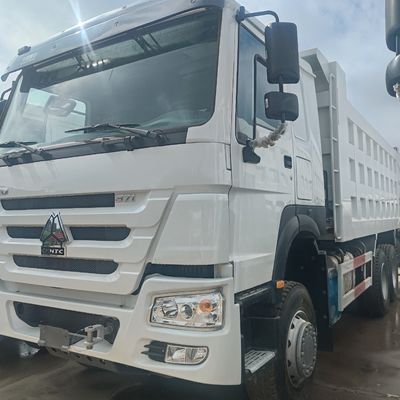

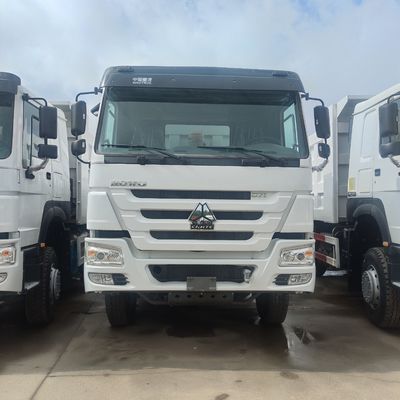

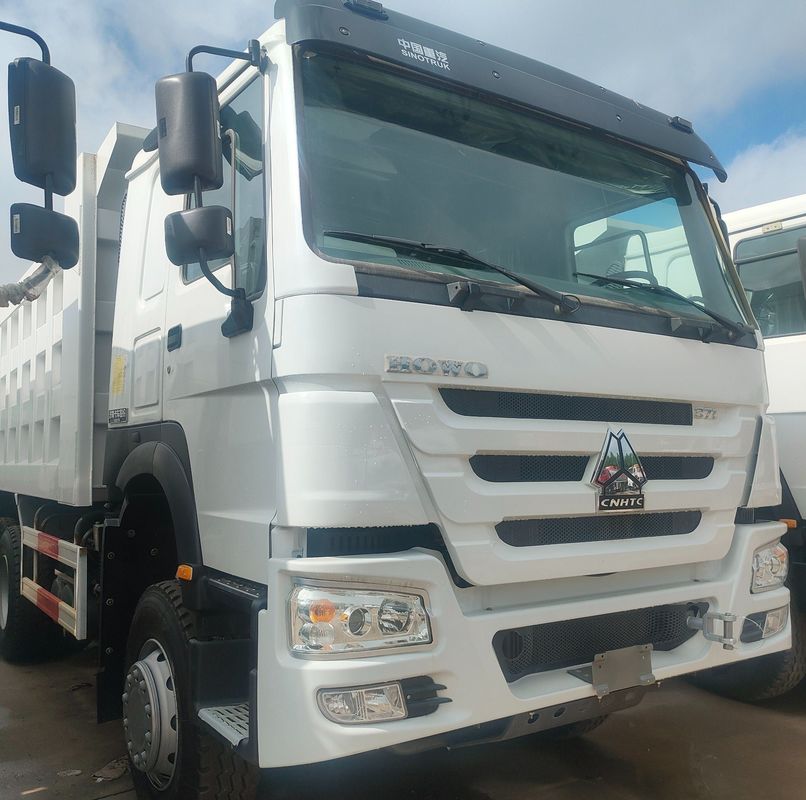

Unleash the unparalleled power and reliability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Engineered for excellence, this behemoth boasts a remarkable 18-25cbm capacity, ensuring it meets the demands of any heavy-duty application with ease. Crafted to perfection, it is the epitome of strength, durability, and efficiency, setting a new benchmark in the world of heavy-duty transportation.
Product Description
Our versatile Dump Truck, also referred to as a Dumper Truck, Tipper Truck, or simply Tipper, is meticulously designed to address all your heavy-duty hauling requirements. Whether you're moving earth, gravel, or other bulk materials, this truck is built to handle it all with unmatched performance and reliability.
Masterfully crafted, our dump trucks feature an exceptionally robust chassis, a commodious tipping box, and a potent hydraulic cylinder. These elements make them ideal for transporting sand, stone, gravel, and more. As a leading supplier, we provide an array of configurations including 4x2, 6x4, and 8x4 models, tailored to meet your specific needs. Each model is engineered to deliver maximum efficiency and reliability.
Key Advantages of Our Dump Truck:
1. Ideal for transporting earthwork, gravel, bulk materials, and more. Our dump trucks are built to withstand the toughest conditions, ensuring your materials are moved efficiently and safely.
2. Efficient unloading at a specific angle, significantly boosting production efficiency. This feature ensures quick and seamless unloading, saving both time and labor.
3. Economical, reducing transportation costs. Our dump trucks are designed to be cost-effective, helping you lower operational expenses and maximize your profits.
4. Customizable design to cater to diverse customer requirements. We offer personalized solutions to meet the unique needs of each customer, ensuring complete satisfaction.
Dump Truck Description:
The automatic tipping mechanism of the loading carriage allows for unloading at a predetermined angle, thereby saving substantial time and labor. This enhances production efficiency, shortens the transportation cycle, and cuts down on transportation costs, making it a staple in specialized transportation. Engineered for reliability, it stands as the ultimate solution for efficient material handling.
1. Appearance-Based Classification: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck. These classifications ensure that there's a perfect model for every specific need.
2. Purpose-Based Classification: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck. Each type is specialized to excel in its respective field, providing unmatched performance.
3. Driving Mode-Based Classification: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks. This ensures optimal performance and efficiency tailored to various operational needs.
4. Use-Based Classification: mining dump trucks for transporting coal, sand, and gravel; environmental sanitation and green dump trucks for garbage transportation, etc. These specialized trucks are built to handle specific materials with utmost efficiency.
5. Rollover Direction Classification: front lift and rollover dump trucks; two-way side dump trucks primarily used in construction projects. These classifications ensure safe and efficient unloading in various scenarios.
Detailed Photos
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Main Specifications:
Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System:
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch:
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission:
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle:
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |

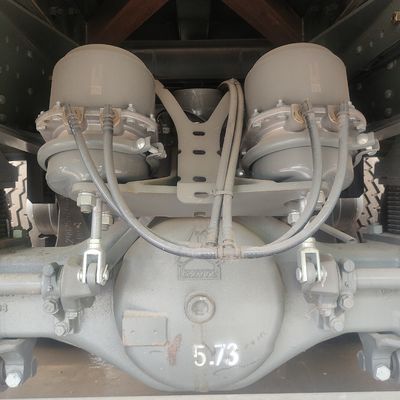

Rear Axle:
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis:
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System: Experience exceptional engine performance and longevity with our superior air intake system, meticulously designed to deliver clean, efficient airflow.
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System: Enhance your vehicle's performance and minimize emissions with our advanced exhaust system, crafted for optimal functionality and durability.
| Capable of maintaining the sound level as low as possible. |
Steering: Navigate with ease and precision using our highly responsive and reliable steering system, engineered for smooth and effortless control.
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper: Protect your vehicle and maintain a sleek appearance with our robust bumper, designed to withstand impact and add a touch of style.
| Installed heavy duty front and rear steel bumpers |
Brake System: Ensure safety and control with our state-of-the-art brake system, providing powerful and consistent stopping power in all conditions.
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres: Achieve superior traction and stability with our high-quality wheels and tyres, tailored for durability and performance on any terrain.
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System: Keep your engine performing at its best with our efficient air supply system, ensuring optimal air distribution and performance.
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System: Rely on our cutting-edge electrical system for seamless power distribution and reliability, supporting all your vehicle's electronic needs.
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions: Benefit from the perfect balance of size and functionality with our well-calculated dimensions, designed for practical use and comfort.
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Cargo Body: Maximize your hauling capacity with our durable and spacious cargo body, built to handle heavy loads with ease and efficiency.
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed enterprise, Jining Huahang International Trade Co., Ltd., shines as a beacon of expertise in the global exportation of new trucks, pre-owned trucks, state-of-the-art construction machinery, and versatile semitrailers. With over 15 years of unparalleled experience in trailer manufacturing and 8 years of stellar performance in marketing used trucks and machinery, we proudly stand at the forefront of the industry.
Our company prioritizes meticulous attention to every detail of our vehicles. Prior to delivery, each vehicle undergoes a rigorous road test conducted by our skilled engineers to ensure top-notch performance and reliability.
Through our unwavering commitment to excellence, we have meticulously perfected our vehicles, enabling us to guarantee the exceptional quality of our trucks and trailers. We confidently offer our valued customers a Three-Month Warranty on all trucks and trailers. Our company ethos, 'Buy Easily, Service Assured,' encapsulates our dedication to customer satisfaction, which remains our highest pursuit.
Year after year, we've proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks with Hydraulic Steering and Power Assistance to various countries across Africa, solidifying our reputation for excellence. Our consistent performance and unwavering commitment to quality have made us a trusted partner, ensuring that each truck not only meets the highest standards but also delivers outstanding performance in the challenging terrains of Africa. This remarkable achievement underscores our dedication to providing reliable, high-quality vehicles that our customers can consistently depend on.
Each of our trucks undergoes a meticulous, multi-point inspection process before delivery, ensuring peak performance, safety, and reliability.
1. Engine: Our exhaustive inspection process involves starting the engine to ensure smooth operation, checking for any oil leaks, and monitoring emissions to ensure there are no discharges of black, blue, or white smoke.
It is essential to prevent emissions of black, blue, or white smoke to uphold rigorous performance and environmental standards.
2. Transmission: We conduct rigorous tests to ensure the accuracy and smoothness of transmission gear shifts, confirming they function flawlessly without any hitches.
3. Axle: We meticulously inspect for oil leaks and ensure the axle performs perfectly during driving, guaranteeing optimal functionality.
4. Frame: Our process includes a detailed examination of the frame for any signs of deformation, ensuring the truck's structural integrity remains uncompromised.
5. Headlights and Wiper: We ensure both headlights and wipers are in prime working condition, providing reliable and safe operation at all times.
