Towing Semi Trailer with 600L Fuel Tank and Auman Tipper Euro 5 Emission Standard

Towing Semi Trailer with 600L Fuel Tank and Auman Tipper Euro 5 Emission Standard
Towing Semi Trailer with 600L Fuel Tank and Auman Tipper Euro 5 Emission Standard Towing Semi Trailer with 600L Fuel Tank and Auman Tipper Euro 5 Emission Standard Towing Semi Trailer with 600L Fuel Tank and Auman Tipper Euro 5 Emission Standard Towing Semi Trailer with 600L Fuel Tank and Auman Tipper Euro 5 Emission Standard

Large Image :  Towing Semi Trailer with 600L Fuel Tank and Auman Tipper Euro 5 Emission Standard

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

Towing Semi Trailer with 600L Fuel Tank and Auman Tipper Euro 5 Emission Standard

Description
Model NO.: ZZ4257N3247E1H Power: Diesel
Load Capacity: 31-40t Emission Standard: Euro 5
Drive Wheel: 6×4 Seats: ≤5
Horsepower: >450hp Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: Used Usage: Towing Semi Trailer
Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 6.9x2.55x3.57m Trademark: Auman
Origin: China HS Code: 8708991000
Supply Ability: 1000pieces/Year Package Size: 695.00cm * 255.00cm * 357.00cm
Package Gross Weight: 8200.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Comprehensive Product Use Overview - Dive deep into the multifaceted applications of our robust and reliable Auman Tipper Trailer, engineered to cater to various heavy-duty needs.

1. Precise Definition of a Tractor - Understand the technical precision and adaptability that define our state-of-the-art tractors, setting a new benchmark in towing capacities.
A tractor is a highly adaptable and precisely designed light truck, expertly crafted for the towing of vehicles or heavy objects across roadways. With its multiple pairs of wheels and axles, it becomes an essential asset for transporting semi-trailers, luxury yachts, construction equipment, and more. Serving as a linchpin in heavy transport, it is vital to the operation of numerous industries.
2. Detailed Structure of the Tractor - Explore the meticulously engineered components of our tractors, including the engine, transmission, tires, and frame, all designed to deliver unparalleled performance.
A tractor consists of several critical components: the engine, transmission, tires, and frame. It may also feature additional devices such as tow hooks, locking systems, and remote controls to enhance operational efficiency and control, ensuring exceptional performance in every scenario.
3. Diverse Tractor Application Fields - Discover the wide array of industries and scenarios where our tractors excel, from long-distance transportation to construction.
1. Long-Distance Transportation: In the long-distance freight industry, tractors are indispensable for towing semi-trailers and large trucks. They ensure the secure and timely delivery of goods to their final destinations.
2. Construction Sector: Tractors play a crucial role in towing various construction equipment, such as excavators, bulldozers, and cranes. They facilitate the efficient movement of heavy machinery to job sites.

Essential Information - Key details to make informed and strategic decisions about our premium products.

Heavy Duty Dump Trailer with 600L Fuel Tank and Auman Tipper
Heavy Duty Dump Trailer with 600L Fuel Tank and Auman Tipper

Heavy Duty Dump Trailer with 600L Fuel Tank and Auman Tipper

Heavy Duty Dump Trailer with 600L Fuel Tank and Auman Tipper
Heavy Duty Dump Trailer with 600L Fuel Tank and Auman Tipper


Basic Information - A concise and clear overview of our product's core attributes.

driver license:
A2
Announcement Model:
BJ4259SNFKB-AJ
Drive type:
6X4
Wheelbase:
3300+1350mm
engine:
Weichai WP13.550E501
Gearbox:
Fast 12JSD180TA
Body length:
6.95 m
Body width:
2.55 m
Ride height:
3.57 m
Front track:
2005,2010,2020mm
Rear track:
1804/1804,1800/1800mm
Vehicle weight:
8.2 tons
Total mass:
25 tons
Total traction mass:
40 tons
Maximum speed:
95km/h
Market segments:
Logistics distribution, coal transportation, express delivery
Origin:
Beijing
Tonnage level:
Heavy Truck
Version:
Crossing Super Edition
Fuel Type:
diesel fuel


Engine parameters - In-depth specifications of our high-performing engines, designed to meet the most stringent demands.

engine model:
Weichai WP13.550E501
Engine Brand:
Weichai
Number of cylinders:
6 cylinders
Fuel type:
diesel fuel
Cylinder arrangement:
In-line
Displacement:
12.54L
Emission Standards:
National Five
Maximum horsepower:
550 hp
Maximum output power:
405kW
Maximum Torque:
2550N·m
Maximum torque speed:
1000-1400rpm
Rated speed:
1900rpm
Technical route:
Common Rail SCR




Cab parameters - Detailed information about the ergonomically designed cab, ensuring comfort and control.

Cab:
High Top
Number of passengers allowed:
2 people
Number of Seat Rows:
Half row
Cab lift:
electric
Driver's seat type:
Airbag shock absorbing seat
Skylight:
Manual sunroof


Gearbox parameters - Precise details on our advanced transmission systems for smooth and efficient operation.

Gearbox Model:
Fast 12JSD180TA
Gearbox brand:
Fast
Shifting method:
Manual
Forward gears:
12 gears
Reverse gear number:
2




Chassis parameters - Robust chassis specifications to ensure durability and reliability.

Permissible load on front axle:
7000kg
Permissible load on rear axle:
18000(two-axle group)kg
Suspension type:
Leaf spring
Number of springs:
2/4
Suspension type (front/rear):
Leaf spring suspension




Tire - High-quality tire specifications for optimal performance and safety.

Number of tires:
10
Tire specifications:
12R22.5

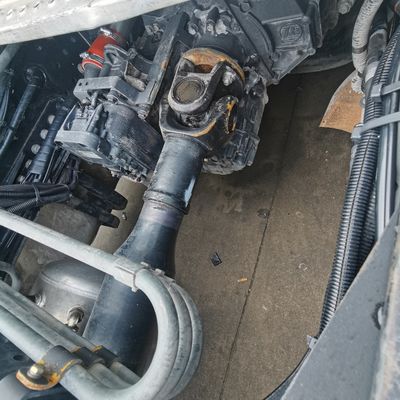

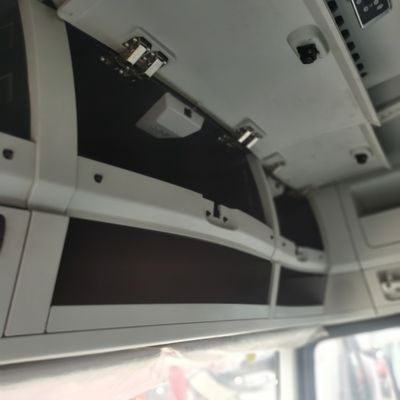

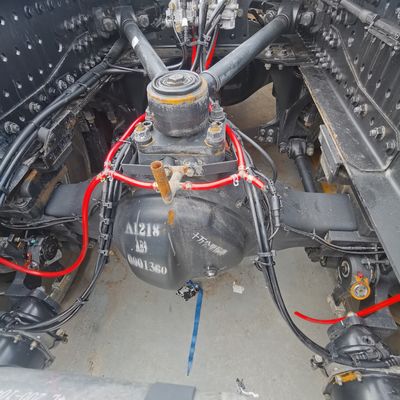

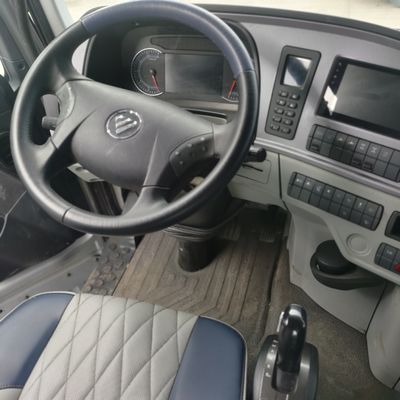

Detailed Photos

Our State-of-the-Art Factory - A glimpse into our cutting-edge manufacturing facilities, where innovation meets excellence.
Heavy Duty Dump Trailer with 600L Fuel Tank and Auman Tipper


Secure and Reliable Shipment Solutions - Our commitment to ensuring your products are delivered safely and on time, utilizing RO-RO vessels, bulk vessels, and specialized containers.

We predominantly ship our trucks via RO-RO vessels or bulk vessels. To accommodate a wide range of logistical needs, we also provide shipping through specialized containers.


Genuine Authentic Spare Parts - Assurance of authenticity with our comprehensive after-sales service system and efficient spare parts delivery.
We supply genuine spare parts along with a comprehensive after-sales service system. Our After-Market Division ensures top-notch service and swift parts delivery through an efficient supply chain.
Heavy Duty Dump Trailer with 600L Fuel Tank and Auman Tipper

Our Flagship Product - Highlighting the premier features and unmatched capabilities of our top-tier offering.
Heavy Duty Dump Trailer with 600L Fuel Tank and Auman Tipper

We Appreciate Your Choice of Jining Huahang International Trade Co., Ltd. - Thank you for trusting us with your heavy transport needs.

Q: What is the estimated delivery time? - Ensuring timely delivery with a majority of trucks and machines in stock, ready to be dispatched within 7 days. Special orders take approximately 30 days.
A: Most trucks and machines are in stock and can be delivered within 7 days. For specially ordered items, the production process typically takes around 30 days.

Q: What is your annual production capacity for trucks? - We proudly produce nearly 30,000 units annually, with a monthly update or production rate of approximately 5,000 units.
A: We manufacture nearly 30,000 units annually, with approximately 5,000 units updated or produced each month.

Q: How do you ensure stringent product quality control? - Our standardized production workshops and meticulous inspection processes guarantee the highest quality for each product.
A: Our factory features a standard production workshop staffed by well-trained workers. Each product undergoes a thorough inspection process. We also recondition our trucks and machines on a specialized production line to ensure peak quality.

Q: Do you accept custom orders, and what is your Minimum Order Quantity (MOQ)? - Yes, we welcome custom orders with a minimum order quantity of just 1 unit, catering to all your specific needs.
A: Yes, we accept custom orders. Our minimum order quantity (MOQ) is 1 unit.
