Tire Certification ECE Sinotruck 400HP Engine Air Suspension Driver Seat Semitrailer Parts

Tire Certification ECE Sinotruck 400HP Engine Air Suspension Driver Seat Semitrailer Parts
Tire Certification ECE Sinotruck 400HP Engine Air Suspension Driver Seat Semitrailer Parts Tire Certification ECE Sinotruck 400HP Engine Air Suspension Driver Seat Semitrailer Parts Tire Certification ECE Sinotruck 400HP Engine Air Suspension Driver Seat Semitrailer Parts Tire Certification ECE Sinotruck 400HP Engine Air Suspension Driver Seat Semitrailer Parts Tire Certification ECE Sinotruck 400HP Engine Air Suspension Driver Seat Semitrailer Parts

Large Image :  Tire Certification ECE Sinotruck 400HP Engine Air Suspension Driver Seat Semitrailer Parts

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

Tire Certification ECE Sinotruck 400HP Engine Air Suspension Driver Seat Semitrailer Parts

Description
Model NO.: ZZ4257N3247E1H Drive Wheel: 6×4
Seats: ≤5 Horsepower: >450hp
Engine Capacity: >8L Tire Certification: ECE, GCC, ISO, DOT
Tire Design: Tubeless Condition: Used
Usage: Towing Semi Trailer Fuel Tank: 400L, 600L, 1000L
Driver Seat: Air Suspension Seat Color: Customized
Cargo Box Material: Carbon Steel Steering System: Hydraulic Steering With Power Assistance
Transport Package: Nude Packing Specification: 6.9x2.55x3.57m
Trademark: Auman Origin: China
HS Code: 8708991000 Supply Ability: 1000pieces/Year
After-sales Service: 6 Months Warranty: 6 Months
Transmission Type: Manual Power: Diesel
Load Capacity: 31-40t Emission Standard: Euro 5
Customization: Available | Customized Request

Sinotruck Semitrailer Parts with 400HP Engine and Air Suspension Driver Seat

Comprehensive Product Use Overview

1. Precise Definition of a Tractor
A tractor is a highly adaptable and precisely designed light truck, expertly crafted for the towing of vehicles or heavy objects across roadways. With its multiple pairs of wheels and axles, it becomes an essential asset for transporting semi-trailers, luxury yachts, construction equipment, and more. Serving as a linchpin in heavy transport, it is vital to the operation of numerous industries.
2. Detailed Structure of the Tractor
A tractor consists of several critical components: the engine, transmission, tires, and frame. It may also feature additional devices such as tow hooks, locking systems, and remote controls to enhance operational efficiency and control, ensuring exceptional performance in every scenario.
3. Diverse Tractor Application Fields
1. Long-Distance Transportation: In the long-distance freight industry, tractors are indispensable for towing semi-trailers and large trucks. They ensure the secure and timely delivery of goods to their final destinations.
2. Construction Sector: Tractors play a crucial role in towing various construction equipment, such as excavators, bulldozers, and cranes. They facilitate the efficient movement of heavy machinery to job sites.

Essential Information

Sinotruck Semitrailer Parts with 400HP Engine and Air Suspension Driver Seat
Sinotruck Semitrailer Parts with 400HP Engine and Air Suspension Driver Seat

Sinotruck Semitrailer Parts with 400HP Engine and Air Suspension Driver Seat
Sinotruck Semitrailer Parts with 400HP Engine and Air Suspension Driver Seat

Sinotruck Semitrailer Parts with 400HP Engine and Air Suspension Driver Seat
Sinotruck Semitrailer Parts with 400HP Engine and Air Suspension Driver Seat


Basic Information

driver license:
A2
Announcement Model:
BJ4259SNFKB-AJ
Drive type:
6X4
Wheelbase:
3300+1350mm
engine:
Weichai WP13.550E501
Gearbox:
Fast 12JSD180TA
Body length:
6.95 m
Body width:
2.55 m
Ride height:
3.57 m
Front track:
2005,2010,2020mm
Rear track:
1804/1804,1800/1800mm
Vehicle weight:
8.2 tons
Total mass:
25 tons
Total traction mass:
40 tons
Maximum speed:
95km/h
Market segments:
Logistics distribution, coal transportation, express delivery
Origin:
Beijing
Tonnage level:
Heavy Truck
Version:
Crossing Super Edition
Fuel Type:
diesel fuel


Engine parameters

engine model:
Weichai WP13.550E501
Engine Brand:
Weichai
Number of cylinders:
6 cylinders
Fuel type:
diesel fuel
Cylinder arrangement:
In-line
Displacement:
12.54L
Emission Standards:
National Five
Maximum horsepower:
550 hp
Maximum output power:
405kW
Maximum Torque:
2550N·m
Maximum torque speed:
1000-1400rpm
Rated speed:
1900rpm
Technical route:
Common Rail SCR

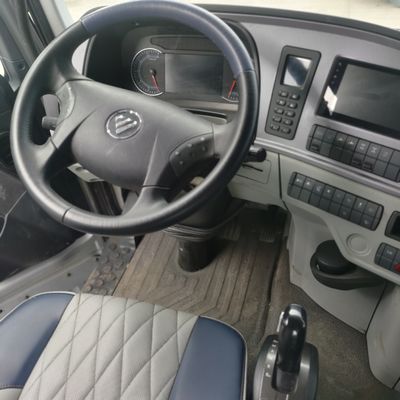

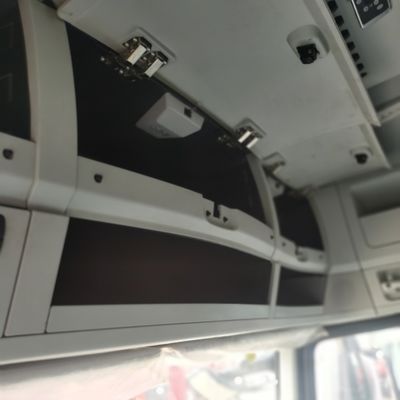

Cab parameters

Cab:
High Top
Number of passengers allowed:
2 people
Number of Seat Rows:
Half row
Cab lift:
electric
Driver's seat type:
Airbag shock absorbing seat
Skylight:
Manual sunroof


Gearbox parameters

Gearbox Model:
Fast 12JSD180TA
Gearbox brand:
Fast
Shifting method:
Manual
Forward gears:
12 gears
Reverse gear number:
2

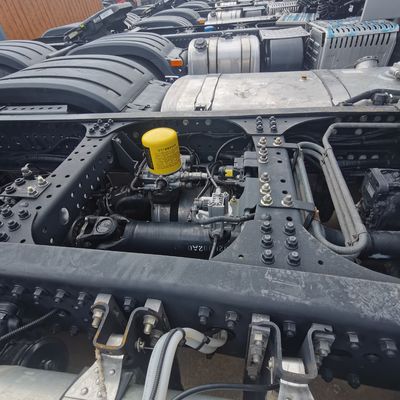

Chassis parameters

Permissible load on front axle:
7000kg
Permissible load on rear axle:
18000(two-axle group)kg
Suspension type:
Leaf spring
Number of springs:
2/4
Suspension type (front/rear):
Leaf spring suspension

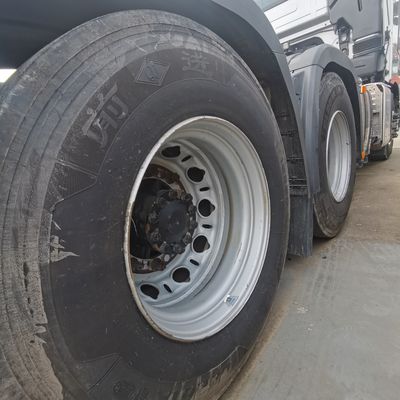

Tire

Number of tires:
10
Tire specifications:
12R22.5

Detailed Photos

Our State-of-the-Art Factory
Sinotruck Semitrailer Parts with 400HP Engine and Air Suspension Driver Seat


Secure and Reliable Shipment Solutions

We predominantly ship our trucks via RO-RO vessels or bulk vessels. To accommodate a wide range of logistical needs, we also provide shipping through specialized containers.
Sinotruck Semitrailer Parts with 400HP Engine and Air Suspension Driver Seat


Genuine Authentic Spare Parts
We supply genuine spare parts along with a comprehensive after-sales service system. Our After-Market Division ensures top-notch service and swift parts delivery through an efficient supply chain.
Sinotruck Semitrailer Parts with 400HP Engine and Air Suspension Driver Seat

Our Flagship Product
Sinotruck Semitrailer Parts with 400HP Engine and Air Suspension Driver Seat

We Appreciate Your Choice of Jining Huahang International Trade Co., Ltd.

Q: What is the estimated delivery time?
A: Most trucks and machines are in stock and can be delivered within 7 days. For specially ordered items, the production process typically takes around 30 days.

Q: What is your annual production capacity for trucks?
A: We manufacture nearly 30,000 units annually, with approximately 5,000 units updated or produced each month.

Q: How do you ensure stringent product quality control?
A: Our factory features a standard production workshop staffed by well-trained workers. Each product undergoes a thorough inspection process. We also recondition our trucks and machines on a specialized production line to ensure peak quality.

Q: Do you accept custom orders, and what is your Minimum Order Quantity (MOQ)?
A: Yes, we accept custom orders. Our minimum order quantity (MOQ) is 1 unit.
