| Model NO.: | ZZ4257N3247E1H | Power: | Diesel |
|---|---|---|---|
| Load Capacity: | 31-40t | Emission Standard: | Euro 3 |
| Drive Wheel: | 4×2 | Seats: | ≤5 |
| Horsepower: | 351-450hp | Engine Capacity: | ＞8L |
| Tire Certification: | ECE, GCC, ISO, DOT | Tire Design: | Tubeless |
| Condition: | New | Usage: | Towing Semi Trailer |
| Fuel Tank: | 400L, 600L, 1000L | Driver Seat: | Air Suspension Seat |
| Color: | Customized | Cargo Box Material: | Carbon Steel |
| Steering System: | Hydraulic Steering With Power Assistance | Transport Package: | Nude Packing |
| Specification: | 6.11x2.49x2.9m | Trademark: | Haowo |
| Origin: | Shandong | HS Code: | 87163990 |
| Supply Ability: | 1000pieces/Year | Package Size: | 611.00cm * 249.00cm * 290.00cm |
| Package Gross Weight: | 7100.000kg | After-sales Service: | 6 Months |
| Warranty: | 6 Months | Transmission Type: | Manual |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Basic Information | |||
| driver license: | A2 | Announcement Model: | ZZ4187S3517C |
| Drive type: | 4X2 | Wheelbase: | 3500mm |
| Body length: | 6.11 m | Body width: | 2.496 m |
| Ride height: | 2.958 m | Front track: | 2022mm |
| Rear track: | 1830mm | Vehicle weight: | 7.1 tons |
| Total mass: | 18 tons | Total traction mass: | 34.7 tons |
| Maximum speed: | 102km/h | Origin: | Shandong Jinan |
| Fuel Type: | diesel fuel | ||

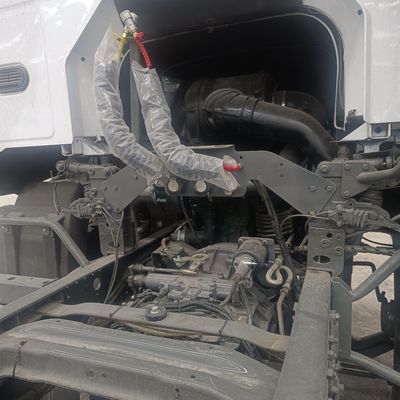

| Engine parameters | |||
| engine model: | Sinotruk WD615.96E | Engine Brand: | Sinotruk |
| Number of cylinders: | 6 cylinders | Fuel type: | diesel fuel |
| Cylinder arrangement: | In-line | Displacement: | 9.726L |
| Emission Standards: | National Three | Maximum horsepower: | 375 hp |
| Maximum output power: | 276kW | Maximum Torque: | 1500Nm |
| Maximum torque speed: | 1100-1600rpm | Rated speed: | 2200rpm |
| Cab parameters | |||
| Cab: | Flat Top | Number of passengers allowed: | 2 people |
| Gearbox parameters | |||
| Gearbox Model: | Sinotruk HW18710 | Gearbox brand: | Sinotruk |
| Shifting method: | Manual | Forward gears: | 10 levels |
| Reverse gear number: | 2 | ||
| tank | |||
| Fuel tank/gas tank material: | Aluminum Alloy | Fuel tank capacity: | 400L |
| Chassis parameters | |||
| Rear Axle Description: | ST13 Bridge | Permissible load on rear axle: | 11500kg |
| Speed atio: | 3.73 | Suspension type: | Leaf spring |
| Number of springs: | 9/9+6,4/9+6,4/5 | ||
| tire | |||
| Number of tires: | 6 | Tire specifications: | 295/80R22.5 tubeless tire |
