| Model NO.: | 6x4 Oil Tanker Truck | Power: | Diesel |
|---|---|---|---|
| Load Capacity: | 31-40t | Emission Standard: | Euro 3 |
| Drive Wheel: | 6×4 | Engine Capacity: | ＞8L |
| Seats: | ≤5 | Horsepower: | 351-450hp |
| Tire Certification: | ECE, GCC, ISO, DOT | Tire Design: | Tubeless |
| Dumping Type: | Front Lifting Style | Condition: | New |
| Tyre: | New | Steering System: | Hydraulic Steering With Power Assistance |
| Chassis Brand: | Sinotruk Chassis | Color: | Customized |
| Cargo Box Material: | Carbon Steel | Transport Package: | Naked Packing |
| Specification: | 11m*2.55m*3.45m | Trademark: | Sinotruk |
| Origin: | Shandong China | HS Code: | 8708991000 |
| Supply Ability: | 1000pieces/Year | Package Size: | 1100.00cm * 250.00cm * 345.00cm |
| Package Gross Weight: | 15500.000kg | After-sales Service: | 6 Months |
| Warranty: | 6 Months | Transmission Type: | Manual |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

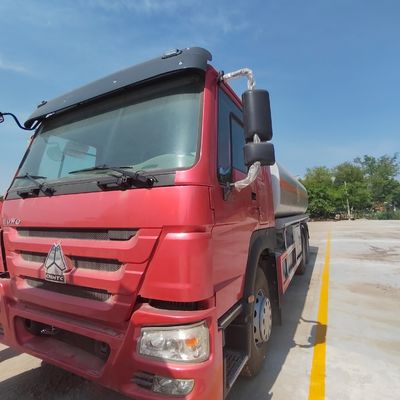

SINOTRUK HOWO 6X4 336HP 15CBM VACUUM TANKER TRUCK SEWAGE TRUCK MODEL ZZ1257N4641W
HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.
| Model | ZZ1257N4641W | ||

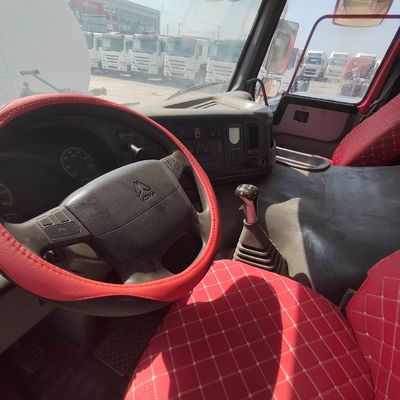

| Cabin | HW76 long Cabin, with two seats and one bed, with Air Conditioner and electric window. | ||
| Model | WD615.69 | ||
| Horse Power (Hp/rpm) | 336/2200, Euro 3 Emission Standard | ||
| Max.Toruqe(Nm/rpm) | 1350/1100-1500 | ||
| Displacement L | 9.726 | ||
| Type | 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine | ||
| Transmission | HW19710, 10 speeds forward and 2 speeds reverse. | ||
| Front Axle | HF9, Steering with double T-cross section beam, Loading Capacity: 9,000kgs | ||
| Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42 | ||
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | ||
| Steering System | ZF8118, Hydraulic steering with power assistance | ||
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | ||

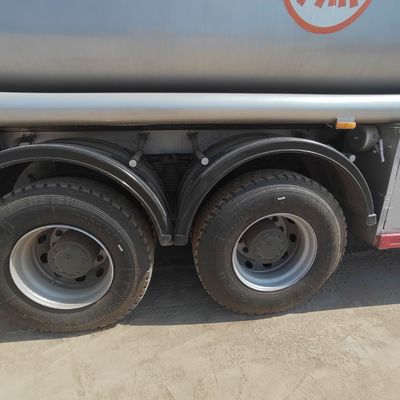

| Tire | 12.00R20 | ||
| Fuel Tank Capacity (L) | 400L Diesel Tank | ||
| Kurb Weight (kg) | 13,200 | ||
| Loading Capacity (kg) | 27,800 | ||
| Gross Vehicle Weight (kg) | 41,000 | ||
| Overall Dimension(L*W*H)(mm) | 9900×2500×3300 | ||

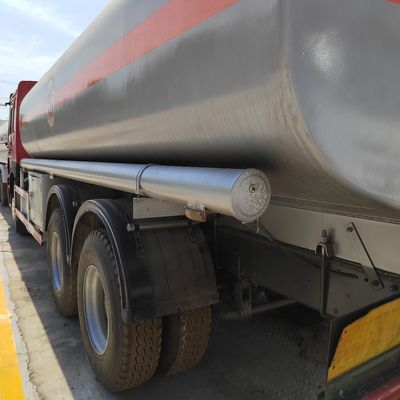

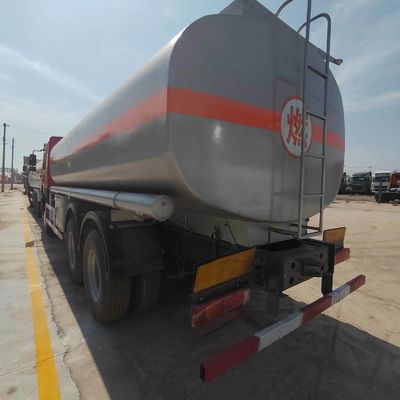

| Tank Capacity(L) | 15,000 | ||
| Tank Material | Carbon Steel | ||
| Nos of Compartment | 1 | ||
| Vacuum Pump Model | Jurop PN106D | ||
| Max Air Flow | 11000L/min | ||
| Time to suction full tank | 12-15 mins | ||
| Suction Depth | 8m | ||
| Accessories | With Hydraulic Tank Hoist Lift System, Hydraulic Rear Tank Cover Opener, Suction Hose, Discharge Hose, Quick Release Connections (Male&Female) | ||
| Wheelbase(mm) | 4600+1350 | ||
| Max. Speed (km/h) | 75 | ||
Jining Huahang International Trade Co., Ltd. is a distinguished specialist in the exportation of both new and used trucks, construction machinery, and semitrailers. With over 15 years of unmatched expertise in trailer manufacturing and 8 years in the marketing of pre-owned trucks and machinery, we stand as a name synonymous with trust and reliability.
At Jining Huahang International Trade Co., Ltd., meticulous attention to detail defines our operations. Before delivery, each vehicle undergoes a rigorous road test inspection by our expert engineers, ensuring that only the highest quality reaches our valued customers.
With our impeccably maintained fleet, we guarantee the superior quality of our trucks and trailers. We proudly offer a SIX-Month Warranty on all our products. Our mission, 'Buy Easily, Service Assured,' reflects our unwavering commitment to customer satisfaction, which remains our highest priority.
Contact Person: Mr. Liu
Tel: +86 13153796988
