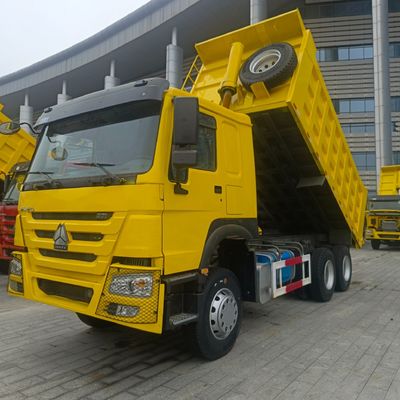

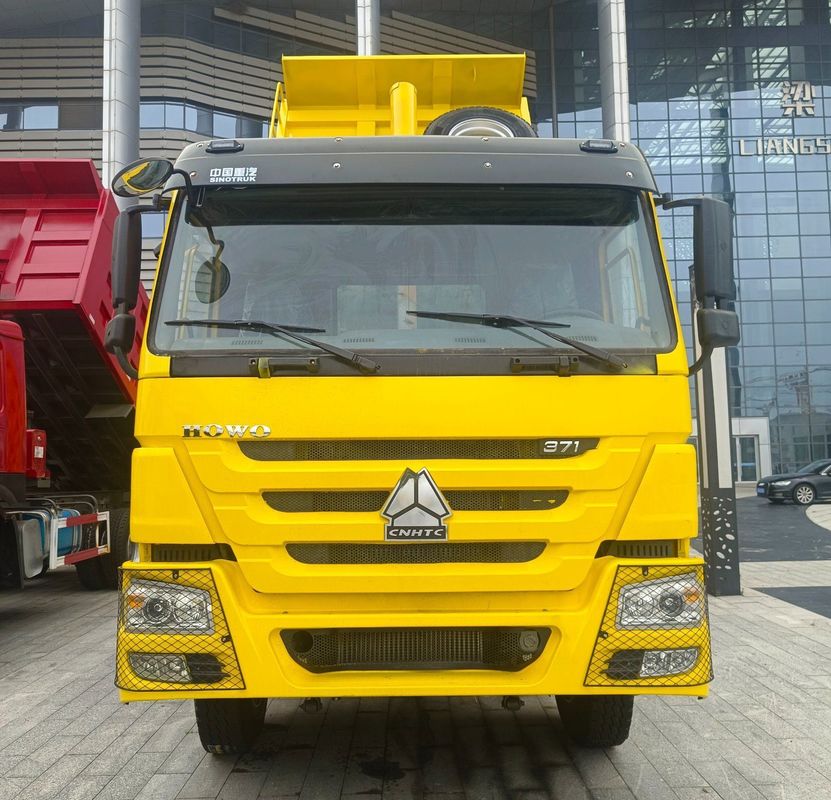

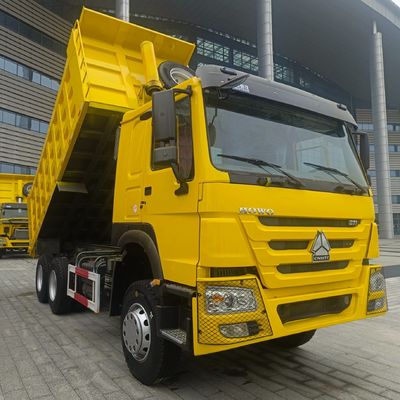

Unleash the unparalleled power and reliability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Engineered for excellence, this behemoth boasts a remarkable 18-25cbm capacity, effortlessly meeting the demands of any heavy-duty application. Built for superior performance, this truck ensures your hauling needs are met with precision and power.
Product Description
Our versatile Dump Truck, also known as a Dumper Truck, Tipper Truck, or simply Tipper, is meticulously crafted to fulfill all your heavy-duty hauling requirements.
Masterfully crafted, our dump trucks feature an exceptionally robust chassis, a commodious tipping box, and a potent hydraulic cylinder. These elements make them perfect for transporting sand, stone, gravel, and more. As a leading supplier, we offer a variety of configurations including 4x2, 6x4, and 8x4 models, tailored to meet your specific needs and ensure optimal performance.
Key Advantages of Our Dump Truck:
1. Perfect for transporting earthwork, gravel, bulk materials, and more.
2. Efficient unloading at a specific angle, significantly boosting production efficiency and reducing downtime.
3. Economical design that helps reduce transportation costs, ensuring maximum value for your investment.
4. Customizable design to cater to diverse customer requirements, ensuring flexibility and adaptability for various applications.
Dump Truck Description:
The automatic tipping mechanism of the loading carriage allows for unloading at a predetermined angle, saving substantial time and labor. This enhances production efficiency, shortens the transportation cycle, and cuts down on transportation costs, making it a staple in specialized transportation and ensuring seamless operations.
1. Appearance-Based Classification: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck.
2. Purpose-Based Classification: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck.
3. Driving Mode-Based Classification: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks.
4. Use-Based Classification: mining dump trucks for transporting coal, sand, and gravel; environmental sanitation and green dump trucks for garbage transportation, etc.
5. Rollover Direction Classification: front lift and rollover dump trucks; two-way side dump trucks primarily used in construction projects.
Detailed Photos
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Main Specifications:
Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System:
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch:
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission:
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle:
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle:
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis:
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System:
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System:
| Capable of maintaining the sound level as low as possible. |
Steering:
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper:
| Installed heavy duty front and rear steel bumpers |
Brake System:
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres:
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System:
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System:
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions:
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |

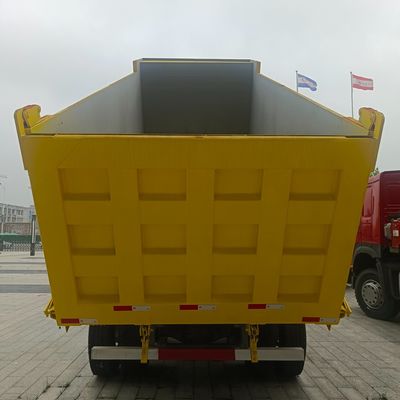

Cargo Body:
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
