Experience the unrivaled power and steadfast reliability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. This engineering marvel, with its impressive 18-25cbm capacity, is expertly designed to tackle any heavy-duty application with ease and precision.
Comprehensive Product Description
Our versatile Dump Truck, also known as Dumper Truck, Tipper Truck, or simply Tipper, is meticulously designed to cater to all your heavy-duty hauling requirements.
Elegantly engineered, our dump trucks feature a robust chassis, a spacious tipping box, and a powerful hydraulic cylinder, making them perfect for transporting sand, stone, gravel, and more. As a premier supplier, we offer a variety of configurations including 4x2, 6x4, and 8x4 models, tailored to meet your specific needs.
Distinct Advantages of Our Dump Truck:
1. Ideal for transporting earthwork, gravel, bulk materials, and more.
2. Efficient unloading at precise angles, significantly enhancing production efficiency.
3. Cost-effective, reducing overall transportation expenses.
4. Customizable design to meet diverse customer needs.
In-Depth Dump Truck Description:
The automatic tipping mechanism of the loading carriage allows for unloading at a predetermined angle, saving significant time and labor. This enhances production efficiency, shortens the transportation cycle, and reduces costs, making it indispensable for specialized transportation.
1. Classification by Appearance: single-axle, double-axle, flat-head, pointed tip, front four-back eight, double-axle semi-trailer, and three-axle semi-trailer dump trucks.
2. Classification by Purpose: agricultural, mining, garbage, coal transportation, construction machinery, and sludge dump trucks.
3. Classification by Driving Mode: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks.
4. Classification by Use: mining dump trucks for coal, sand, and gravel; environmental sanitation trucks for garbage transportation, etc.
5. Classification by Rollover Direction: front lift and rollover dump trucks; two-way side dump trucks mainly used in construction projects.

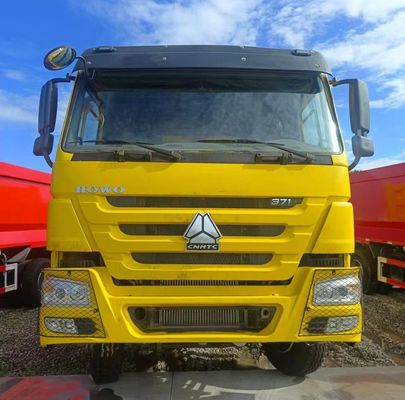

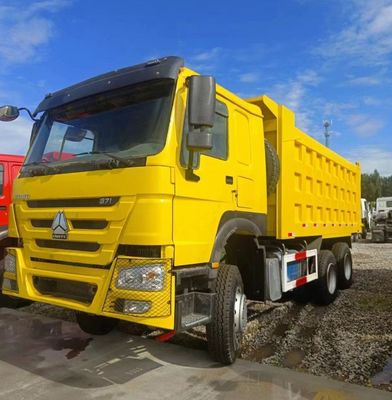

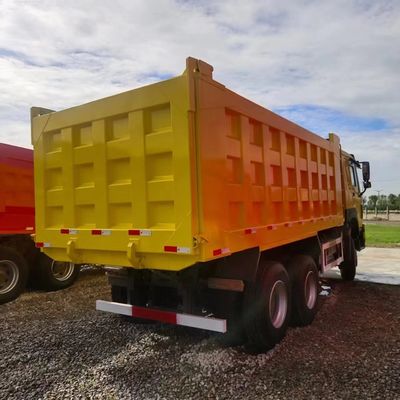

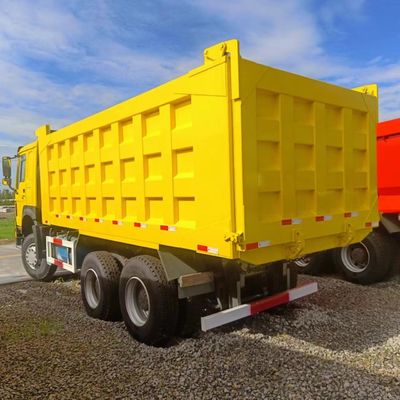

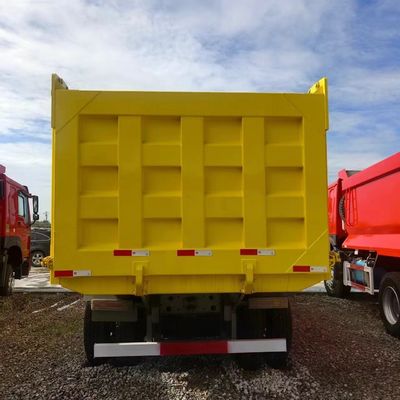

Detailed Visuals
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Primary Specifications:
Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System:
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch:
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission:
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle:
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle:
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis:
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System:
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System:
| Capable of maintaining the sound level as low as possible. |
Steering:
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper:
| Installed heavy duty front and rear steel bumpers |
Brake System:
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres:
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System:
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System:
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions:
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Cargo Body:
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed enterprise, Jining Huahang International Trade Co., Ltd., stands as a beacon of excellence in the global exportation of new trucks, pre-owned trucks, cutting-edge construction machinery, and versatile semitrailers. Boasting over 15 years of unrivaled experience in trailer manufacturing and 8 years of exemplary performance in marketing used trucks and machinery, we proudly lead the industry.
At Jining Huahang International Trade Co., Ltd., meticulous attention to detail is our hallmark. Every vehicle undergoes exhaustive road tests by our skilled engineers before delivery. This rigorous testing ensures peak performance and unwavering reliability, providing our customers with complete peace of mind.
Through our steadfast commitment to excellence, we have perfected the quality of our vehicles. This enables us to confidently guarantee the exceptional standards of our trucks and trailers. We offer our valued customers a generous Three-Month Warranty on all trucks and trailers. Our company ethos, 'Buy Easily, Service Assured,' embodies our dedication to delivering unparalleled customer satisfaction, which remains our highest pursuit.
Year after year, we've proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks with Hydraulic Steering and Power Assistance to various countries across Africa, solidifying our reputation for excellence. Our unwavering commitment to quality and performance has made Jining Huahang International Trade Co., Ltd. a trusted name in the industry. Experience the reliability and efficiency of our trucks that are designed to meet the toughest demands and deliver exceptional results in any terrain.
At Jining Huahang International Trade Co., Ltd., we pride ourselves on subjecting each Clean Used 6X4 Dump Truck-featuring the powerful Sinotruk Chassis-to an exhaustive inspection process before delivery. This rigorous scrutiny ensures peak performance and uncompromised safety, providing our customers with unrivaled reliability and peace of mind.
1. Engine: Our stringent checks guarantee that the engine starts effortlessly and operates without any oil leaks or unwanted emissions of black, blue, or white smoke, meeting both high performance and strict environmental standards.
Eliminating emissions of black, blue, or white smoke is crucial for achieving optimal performance and complying with stringent environmental regulations, ensuring a cleaner and more efficient operation.
2. Transmission: Our meticulous verification of the transmission gear ensures it shifts seamlessly and operates flawlessly, providing a smooth and reliable driving experience.
3. Axle: Through thorough inspection, we ensure there are no oil leaks and confirm that the axle functions perfectly during operation, contributing to the truck's overall dependability.
4. Frame: We conduct a detailed scrutiny of the frame for any signs of deformation, thereby ensuring the truck's structural integrity remains intact and uncompromised.
5. Headlights and Wiper: We rigorously check that the headlights and wipers are in perfect working order, guaranteeing the truck is ready for safe and reliable use in all weather conditions.
Thank You for Choosing Jining Huahang International Trade Co., Ltd.
Q: What is the estimated delivery time for your products?
A: We pride ourselves on our prompt delivery service. Most of our readily available trucks and machines can be dispatched within just 7 days. For specially ordered items, please allow approximately 30 days for us to complete production and ensure everything meets our high standards.
Q: What is your annual production capacity for trucks?
A: Our production capabilities are impressive, allowing us to manufacture nearly 30,000 units annually. Additionally, we maintain an up-to-date inventory with about 5,000 new units each month.
Q: What measures do you take to ensure the quality of your products?
A: Quality is at the heart of everything we do. Our factory boasts a state-of-the-art production workshop and highly skilled workers. Every product undergoes a detailed inspection process. We also meticulously recondition our trucks and machines to ensure they meet the highest quality standards.
Q: Are custom orders accepted? What is the minimum order quantity (MOQ)?
A: Absolutely, we welcome custom orders to meet your specific needs. Remarkably, our minimum order quantity (MOQ) is just 1 unit, enabling us to cater to both small and large scale requirements.
