Unveil the exceptional power and unwavering reliability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Precision-engineered to perfection, this colossal vehicle offers a remarkable 18-25cbm capacity, effortlessly catering to the toughest heavy-duty applications with ease and efficiency.
Comprehensive Product Description
Our versatile Dump Truck, also known as a Dumper Truck, Tipper Truck, or simply Tipper, is meticulously engineered to satisfy all your heavy-duty hauling requirements.
Exquisitely crafted, our dump trucks feature a robust chassis, a capacious tipping box, and a powerful hydraulic cylinder. These elements make them ideal for transporting sand, stone, gravel, and more. As a leading supplier, we offer a variety of configurations including 4x2, 6x4, and 8x4 models, customized to meet your specific needs.
Distinct Advantages of Our Dump Truck:
1. Perfect for efficiently transporting earthwork, gravel, bulk materials, and more.
2. Efficient unloading at precise angles, significantly boosting production efficiency.
3. Cost-effective solution, reducing overall transportation expenses.
4. Customizable design to meet diverse customer requirements.
In-Depth Dump Truck Description:
The automatic tipping mechanism of the loading carriage allows for unloading at a predetermined angle, saving significant time and labor. This feature enhances production efficiency, shortens the transportation cycle, and reduces costs, making it indispensable for specialized transportation.
1. Classification by Appearance: single-axle, double-axle, flat-head, pointed tip, front four-back eight, double-axle semi-trailer, and three-axle semi-trailer dump trucks.
2. Classification by Purpose: agricultural, mining, garbage, coal transportation, construction machinery, and sludge dump trucks.
3. Classification by Driving Mode: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks.
4. Classification by Use: mining dump trucks for coal, sand, and gravel; environmental sanitation trucks for garbage transportation, etc.
5. Classification by Rollover Direction: front lift and rollover dump trucks; two-way side dump trucks mainly used in construction projects.

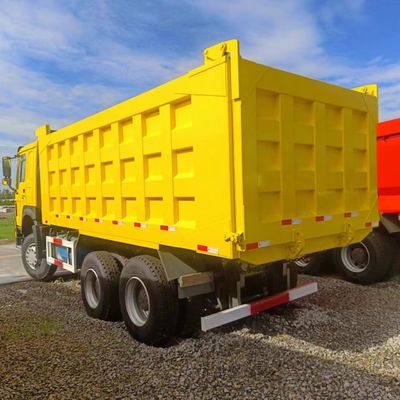

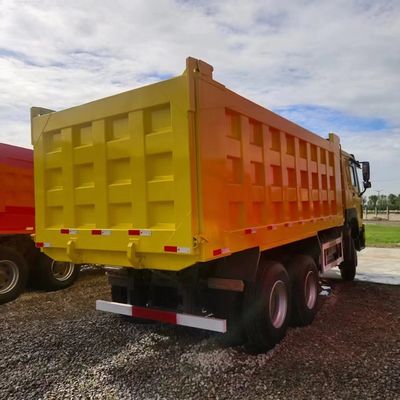

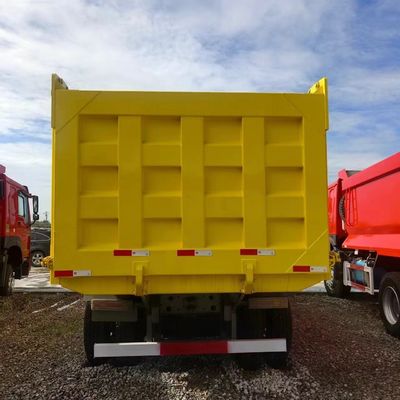

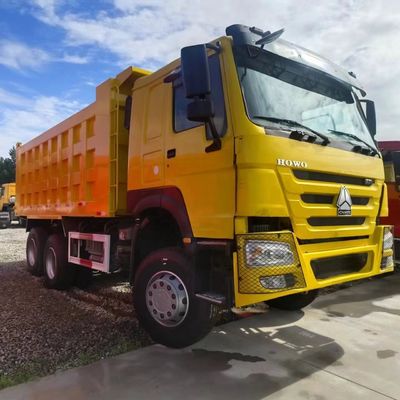

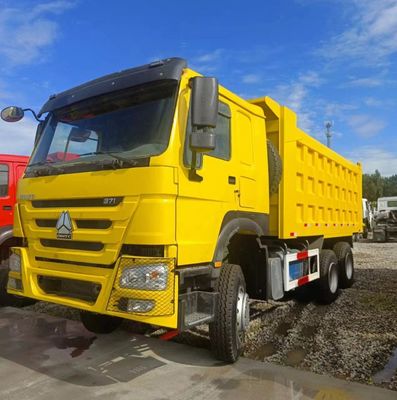

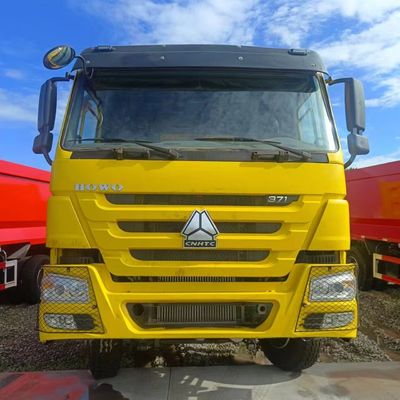

Detailed Visuals
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Primary Specifications:
Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System:
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch:
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission:
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle:
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle:
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis:
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System:
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System:
| Capable of maintaining the sound level as low as possible. |
Steering:
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper:
| Installed heavy duty front and rear steel bumpers |
Brake System:
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres:
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System:
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System:
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions:
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Cargo Body:
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed enterprise, Jining Huahang International Trade Co., Ltd., shines as a beacon of expertise in the global exportation of new trucks, pre-owned trucks, state-of-the-art construction machinery, and versatile semitrailers. With over 15 years of unparalleled experience in trailer manufacturing and 8 years of stellar performance in marketing used trucks and machinery, we proudly stand at the forefront of the industry.
At Jining Huahang International Trade Co., Ltd., we prioritize meticulous attention to every detail of our vehicles. Prior to delivery, each vehicle undergoes an exhaustive road test conducted by our team of skilled engineers. This rigorous testing ensures top-notch performance and unwavering reliability, providing our customers with peace of mind.
Through our unwavering commitment to excellence, we have perfected the quality of our vehicles. This allows us to confidently guarantee the exceptional standards of our trucks and trailers. We offer our valued customers a generous Three-Month Warranty on all trucks and trailers. Our company ethos, 'Buy Easily, Service Assured,' encapsulates our dedication to delivering unparalleled customer satisfaction, which remains our highest pursuit.
Year after year, we've proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks with Hydraulic Steering and Power Assistance to various countries across Africa, solidifying our reputation for excellence.
At Jining Huahang International Trade Co., Ltd., we subject each of our Clean Used 6X4 Dump Trucks - featuring the robust Sinotruk Chassis - to an exhaustive inspection process before delivery, guaranteeing peak performance and uncompromised safety.
1. Engine: Our rigorous checks ensure the engine starts effortlessly and operates without any oil leaks or the emission of black, blue, or white smoke, adhering to both performance and environmental standards.
Ensuring there are no emissions of black, blue, or white smoke is vital for both optimal performance and adherence to stringent environmental regulations.
2. Transmission: We meticulously verify the exact positions of the transmission gear, ensuring it shifts seamlessly and operates flawlessly.
3. Axle: Our thorough inspection guarantees no oil leaks and confirms the axle functions perfectly during operation.
4. Frame: We scrutinize the frame for any signs of deformation, ensuring the truck's structural integrity remains uncompromised.
5. Headlights and Wiper: We confirm that both the headlights and wipers are in perfect working order, ensuring the truck is ready for safe and reliable use in all conditions.
Thank you for selecting Jining Huahang International Trade Co., Ltd. as your trusted partner.
Q: What is the estimated delivery time for your products?
A: We take great pride in our prompt delivery service. For most of our readily available trucks and machines, we are capable of dispatching your order within an impressive 7 days. Should you opt for specially ordered items, kindly allow approximately 30 days for us to meticulously complete production and ensure that everything meets our exceptionally high standards.
Q: What is your annual production capacity for trucks?
A: Our state-of-the-art production capabilities empower us to manufacture close to 30,000 units each year. Additionally, we maintain a consistently updated inventory, with around 5,000 new units added monthly to ensure availability.
Q: What measures do you take to ensure the quality of your products?
A: Quality is the cornerstone of our operations. Our factory features a cutting-edge production workshop staffed with highly skilled workers. Every product is subjected to a rigorous inspection process. Furthermore, we meticulously recondition our trucks and machines to guarantee they meet the highest quality standards.
Q: Are custom orders accepted? What is the minimum order quantity (MOQ)?
A: Absolutely, we enthusiastically welcome custom orders tailored to your specific needs. Remarkably, our minimum order quantity (MOQ) is just 1 unit, allowing us to accommodate both small and large-scale requirements with ease.
