Unveil the extraordinary power and unwavering reliability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Expertly engineered, this formidable titan features an awe-inspiring 18-25cbm capacity, effortlessly fulfilling the demands of any rigorous heavy-duty application.
Comprehensive Product Description
Our versatile Dump Truck, also recognized as Dumper Truck, Tipper Truck, or simply Tipper, is meticulously designed to meet all your heavy-duty hauling requirements.
Masterfully crafted, our dump trucks showcase a robust chassis, a spacious tipping box, and a formidable hydraulic cylinder. These essential components make them ideal for transporting sand, stone, gravel, and more. As a leading supplier, we offer various configurations including 4x2, 6x4, and 8x4 models, tailored to meet your specific needs.
Distinct Advantages of Our Dump Truck:
1. Perfect for transporting earthwork, gravel, bulk materials, and beyond.
2. Efficient unloading at precise angles, significantly boosting production efficiency.
3. Cost-effective, reducing overall transportation expenses.
4. Customizable design to address diverse customer requirements.
In-Depth Dump Truck Description:
The automatic tipping mechanism of the loading carriage allows for unloading at a predetermined angle, saving substantial time and labor. This enhancement increases production efficiency, shortens the transportation cycle, and reduces costs, making it indispensable for specialized transportation.
1. Classification by Appearance: single-axle, double-axle, flat-head, pointed tip, front four-back eight, double-axle semi-trailer, and three-axle semi-trailer dump trucks.
2. Classification by Purpose: agricultural, mining, garbage, coal transportation, construction machinery, and sludge dump trucks.
3. Classification by Driving Mode: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks.
4. Classification by Use: mining dump trucks for coal, sand, and gravel; environmental sanitation trucks for garbage transportation, etc.
5. Classification by Rollover Direction: front lift and rollover dump trucks; dual-side dump trucks primarily used in construction projects.

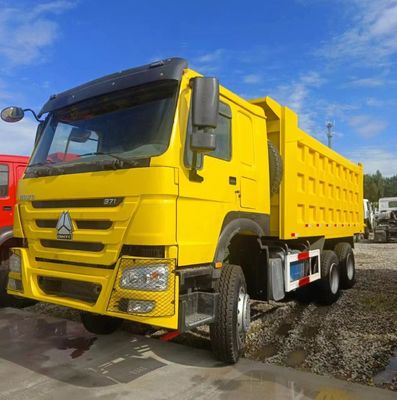

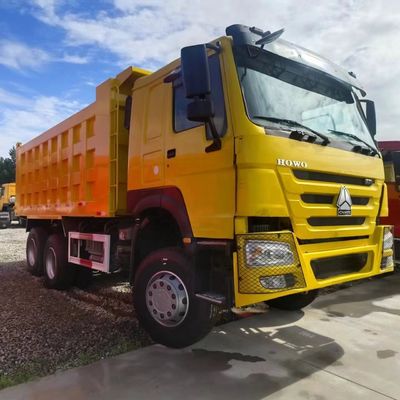

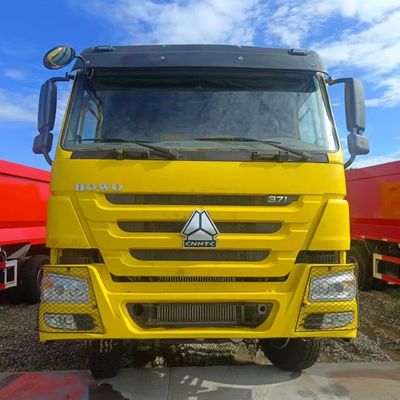

Detailed Visuals
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Primary Specifications:
Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |

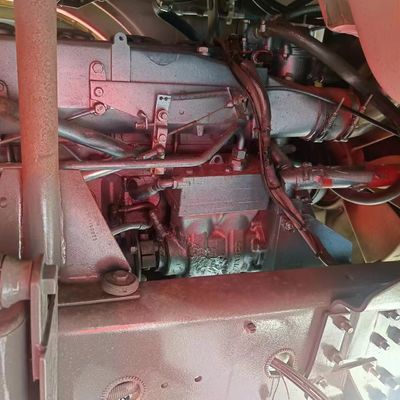

Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System:
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch:
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission:
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle:
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |

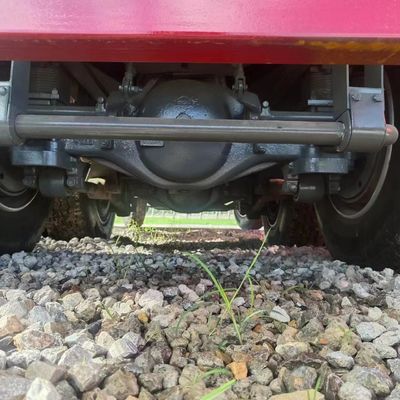

Rear Axle:
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis:
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System:
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System:
| Capable of maintaining the sound level as low as possible. |
Steering:
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper:
| Installed heavy duty front and rear steel bumpers |
Brake System:
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres:
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System:
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System:
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions:
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |

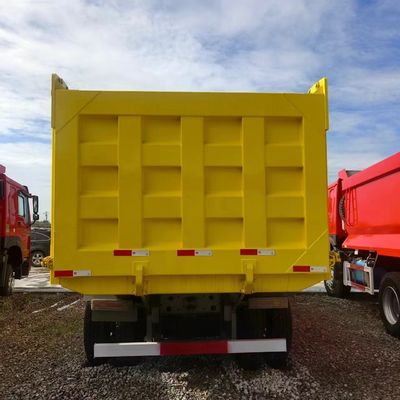

Cargo Body:
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed enterprise, Jining Huahang International Trade Co., Ltd., stands as an eminent leader in the international marketplace, excelling in the exportation of new and pre-owned trucks, cutting-edge construction machinery, and versatile semitrailers. Boasting over 15 years of unmatched expertise in trailer manufacturing and an impressive 8-year track record in marketing used trucks and machinery, we are proudly positioned at the pinnacle of the industry.
At Jining Huahang International Trade Co., Ltd., we hold an unwavering commitment to precision and excellence for every vehicle. Prior to delivery, our skilled engineers subject each vehicle to an exhaustive road test, ensuring superior performance and steadfast reliability. This meticulous process guarantees our customers peace of mind and confidence in their purchase.
Driven by an unyielding commitment to excellence, we have refined the quality of our vehicles to meet exceptional standards. This meticulous attention to detail allows us to offer a generous Three-Month Warranty on all trucks and trailers. Our company ethos, 'Buy Easily, Service Assured,' embodies our relentless pursuit of unparalleled customer satisfaction, which remains our highest pursuit.
Year after year, we've proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks with Hydraulic Steering and Power Assistance to various countries across Africa, solidifying our reputation for excellence, reliability, and superior engineering. Our unwavering commitment to quality ensures that every Shacman HOWO truck we export meets the highest standards, delivering unmatched performance and durability to our esteemed clients.
At Jining Huahang International Trade Co., Ltd., we subject each of our premium Dongfeng Used 6X4 Dump Trucks, featuring the robust Sinotruk Chassis, to an exhaustive inspection process before delivery. This guarantees peak performance and uncompromised safety, ensuring you receive a truck that's built to last.
1. Engine: Our rigorous checks ensure the engine starts effortlessly and operates without any oil leaks. It strictly adheres to performance and environmental standards, emitting no black, blue, or white smoke.
Ensuring there are no emissions of black, blue, or white smoke is vital for both optimal performance and adherence to stringent environmental regulations.
2. Transmission: We meticulously verify the positions of the transmission gear, ensuring it shifts seamlessly and operates flawlessly for a smooth driving experience.
3. Axle: Our thorough inspection guarantees no oil leaks and confirms that the axle functions perfectly during operation, providing reliability and durability.
4. Frame: We scrutinize the frame for any signs of deformation, ensuring the truck's structural integrity remains uncompromised, giving you peace of mind on every journey.
5. Headlights and Wiper: We ensure that both the headlights and wipers are in perfect working order. This guarantees the truck is ready for safe and reliable use in all weather conditions, day or night.
Thank You for Choosing Jining Huahang International Trade Co., Ltd.
Q: What is the estimated delivery time for your products?
A: We pride ourselves on our prompt delivery service. For most of our readily available trucks and machines, we can dispatch your order within just 7 days. If you opt for specially ordered items, please allow approximately 30 days for us to complete production and ensure everything meets our high standards.
Q: What is your annual production capacity for trucks?
A: Our impressive production capabilities allow us to manufacture nearly 30,000 units each year. Additionally, we keep our inventory up-to-date with about 5,000 new units monthly.
Q: What measures do you take to ensure the quality of your products?
A: Quality is at the heart of everything we do. Our factory boasts a state-of-the-art production workshop and highly skilled workers. Every product undergoes a detailed inspection process. We also meticulously recondition our trucks and machines to guarantee that they meet the highest quality standards.
Q: Are custom orders accepted? What is the minimum order quantity (MOQ)?
A: Absolutely, we welcome custom orders to meet your specific needs. Remarkably, our minimum order quantity (MOQ) is just 1 unit, allowing us to cater to both small and large scale requirements.
