480HP CNG Tractor Truck with Air Suspension Seat The Ultimate Cargo Transport Solution

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

480HP CNG Tractor Truck with Air Suspension Seat The Ultimate Cargo Transport Solution

480HP CNG Tractor Truck with Air Suspension Seat The Ultimate Cargo Transport Solution
480HP CNG Tractor Truck with Air Suspension Seat The Ultimate Cargo Transport Solution 480HP CNG Tractor Truck with Air Suspension Seat The Ultimate Cargo Transport Solution 480HP CNG Tractor Truck with Air Suspension Seat The Ultimate Cargo Transport Solution 480HP CNG Tractor Truck with Air Suspension Seat The Ultimate Cargo Transport Solution 480HP CNG Tractor Truck with Air Suspension Seat The Ultimate Cargo Transport Solution

Large Image :  480HP CNG Tractor Truck with Air Suspension Seat The Ultimate Cargo Transport Solution

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

480HP CNG Tractor Truck with Air Suspension Seat The Ultimate Cargo Transport Solution

Description
Model NO.: ZZ4257N3247E1H Drive Wheel: 6×4
Seats: ≤5 Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: Used Usage: Towing Semi Trailer
Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 6.5x2.5x4m Trademark: Sinotruk
Origin: China Shandong HS Code: 8708991000
Supply Ability: 1000pieces/Year After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Power: Diesel Load Capacity: 31-40t
Emission Standard: Euro 5 Customization: Available | Customized Request

480HP CNG Tractor Truck with Air Suspension Seat for Cargo Transport

Product Use

1. Definition of Tractor
A tractor is a versatile light truck renowned for its exceptional towing capabilities. Equipped with one or more pairs of wheels and axles, it reliably hauls heavy-duty vehicles such as semi-trailers, luxury yachts, and construction equipment. This makes it an indispensable asset in the world of heavy transport.
2. Structure of the Tractor
A tractor is meticulously constructed with key components including the engine, transmission, tires, and frame. Enhanced functionality is further augmented by optional features like tow hooks, advanced locking systems, and remote controls, ensuring superior operation and precision.
3. Tractor Application Fields
1. Transportation: Tractors play a vital role in long-distance freight, adeptly towing semi-trailers and large trucks to ensure safe and efficient goods delivery to their destinations.
2. Construction: Tractors are essential for towing various construction machinery such as excavators, bulldozers, and cranes, facilitating the efficient transport of heavy equipment to construction sites.

Basic Info.

480HP CNG Tractor Truck with Air Suspension Seat for Cargo Transport
480HP CNG Tractor Truck with Air Suspension Seat for Cargo Transport
480HP CNG Tractor Truck with Air Suspension Seat for Cargo Transport

480HP CNG Tractor Truck with Air Suspension Seat for Cargo Transport
480HP CNG Tractor Truck with Air Suspension Seat for Cargo Transport
480HP CNG Tractor Truck with Air Suspension Seat for Cargo Transport

480HP CNG Tractor Truck with Air Suspension Seat for Cargo Transport480HP CNG Tractor Truck with Air Suspension Seat for Cargo Transport
480HP CNG Tractor Truck with Air Suspension Seat for Cargo Transport
480HP CNG Tractor Truck with Air Suspension Seat for Cargo Transport
480HP CNG Tractor Truck with Air Suspension Seat for Cargo Transport


Basic Information

driver license:
A2
Announcement Model:
ZZ4186V501HF1LH
Drive type:
4X2
Wheelbase:
5200mm
engine:
Weichai WP15NG530E61
Gearbox:
Sinotruk HW25716XAL
Rear axle ratio:
2.85
Body length:
7.717 m
Body width:
2.496 m
Ride height:
3.98 m
Front track:
2041mm
Rear track:
1816mm
Vehicle weight:
9.86 tons
Total mass:
18 tons
Total traction mass:
31.94 tons
Maximum speed:
89km/h
Origin:
Zhangqiu, Shandong
Tonnage level:
Heavy Truck
Fuel Type:
Liquefied Natural Gas (LNG)




Engine parameters

engine model:
Weichai WP15NG530E61
Engine Brand:
Weichai
Number of cylinders:
6 cylinders
Fuel type:
Liquefied Natural Gas (LNG)
Cylinder arrangement:
In-line
Displacement:
14.6L
Emission Standards:
National VI
Maximum horsepower:
460 hp
Maximum output power:
390kW
Maximum Torque:
2500N·m
Maximum torque speed:
950-1350rpm
Rated speed:
1700rpm


Cab parameters

Number of passengers allowed:
2 people
Number of Seat Rows:
Half row


Gearbox parameters

Gearbox Model:
Sinotruk HW25716XAL
Gearbox brand:
Sinotruk
Shifting method:
***
Forward gears:
16 levels
Reverse gear number:
2

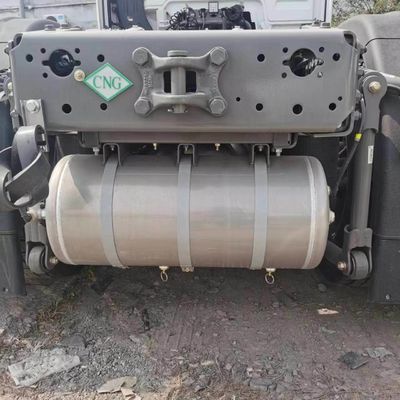

tankGas tank capacity:
2x1500+600L




Chassis parameters

Rear Axle Description:
MCY13JGS
Permissible load on front axle:
6500kg
Permissible load on rear axle:
11500kg
Speed ratio:
2.85
Number of springs:
3/-




Tire

Number of tires:
6
Tire specifications:
12R22.5 18PR



Shipment

We typically ship the truck via RO-RO or bulk vessel and can also use special containers for shipping. Each method is chosen to ensure the utmost safety and efficiency during transit.
480HP CNG Tractor Truck with Air Suspension Seat for Cargo Transport


Original Spare Parts
We provide authentic spare parts alongside a comprehensive after-sales service system. Our After-market Division is committed to delivering exceptional service with a streamlined supply chain for swift parts delivery, ensuring your tractor remains in optimal condition.

Our Product
480HP CNG Tractor Truck with Air Suspension Seat for Cargo Transport

Thanks for Choosing Us

Q: How about the delivery time?
A: Most of our trucks and machinery are in stock, allowing for delivery within 7 days. For specially ordered items, the typical production time is around 30 days, ensuring both quality and precision.

Q: How many units of trucks do you produce per year?
A: We produce nearly 30,000 units annually, with approximately 5,000 units updated each month, reflecting our commitment to innovation and quality.

Q: How do you control product quality?
A: Our factory features a standardized production workshop with highly trained workers. Each product undergoes a meticulous inspection process to ensure our trucks and machinery are reconditioned to professional standards, delivering top-notch quality.

Q: Do you accept custom orders? What's your MOQ?
A: Yes, we accept custom orders with a minimum order quantity (MOQ) of just 1 unit, offering flexibility to meet your specific requirements.
