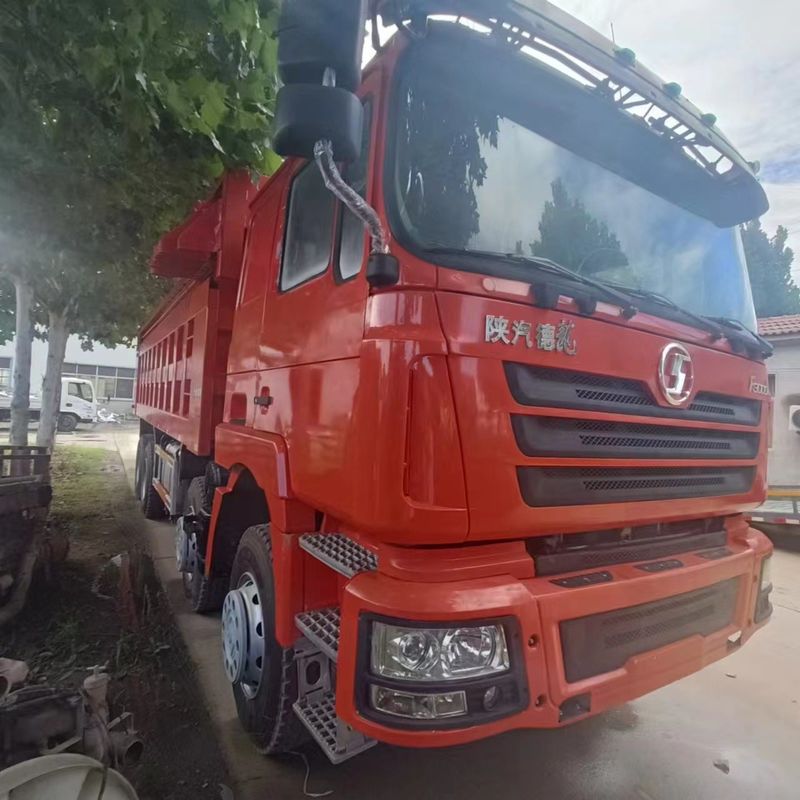

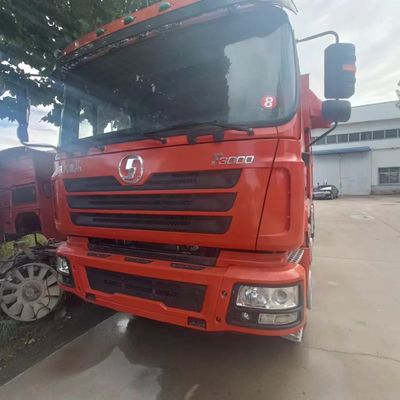

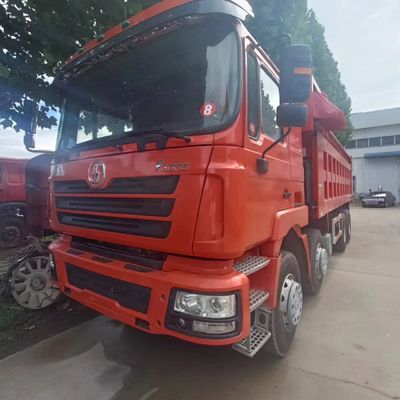

Experience unparalleled power and reliability with the Shacman M3000 X3000 Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Built for exceptional performance, this formidable machine boasts a massive 18-25cbm capacity, enabling you to conquer any heavy-duty task effortlessly and with unwavering confidence.
Product Description
Introducing our versatile Dump Truck, also known as a Dumper Truck, Tipper Truck, or simply Tipper. This meticulously engineered marvel is designed to fulfill all your heavy-duty hauling needs with unmatched efficiency and steadfast reliability.
Engineered for excellence, these dump trucks feature a robust chassis, a spacious tipping box, and a powerful hydraulic cylinder. They are perfect for transporting sand, stone, gravel, and more. As a leading supplier, we offer a variety of configurations including 4x2, 6x4, and 8x4 models to suit your specific requirements seamlessly.
Advantages of this Dump Truck include:
1. Ideal for the transportation of earthwork, gravel, and bulk materials.
2. Enhanced production efficiency with a precise unloading angle.
3. Significant savings on transportation costs.
4. Customizable designs to cater to diverse customer needs.
Dump Truck Description:
The loading carriage automatically tips over for unloading at a specified angle, significantly reducing unloading time and labor. This enhances the transportation cycle, boosts production efficiency, and lowers costs, making it a widely used specialized transport vehicle.
1. By appearance: Single-axle, double-axle, flat-head, pointed tip, front four-back eight, double-axle semi-trailer, and three-axle semi-trailer dump trucks.
2. By purpose: Agricultural, mining, garbage, coal transportation, construction machinery, and sludge dump trucks.
3. By driving modes: 6x4, 8x4 for unloading, and semi-trailer dump trucks.
4. By use: Mining dump trucks for coal, sand, and gravel; environmental sanitation and green dump trucks for garbage transportation.
5. By car rollover direction: Front lift, rollover dump trucks, and two-way side dump trucks, mainly utilized in construction projects.
| Name | Shacman Dump Tipper Truck |
| Types | Used |
| Load capacity | 25000kg |
| Horsepower | 6x4 |
| Horsepower | 400 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro3 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 400L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2013-2023 |
Main Specifications:
Driver's Cab(Single sleeper with A/C)
| Model | Shacman F3000 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine
| Engine brand | SHACMAN |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System
| Capable of maintaining the sound level as low as possible. |
Steering
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper
| Installed heavy duty front and rear steel bumpers |
Brake System
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |

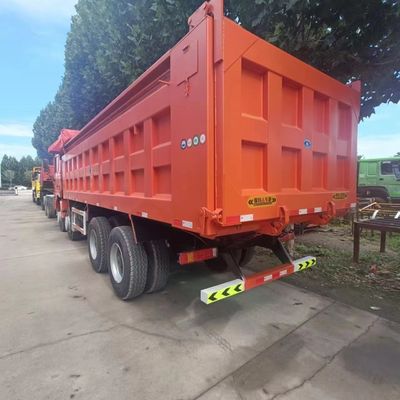

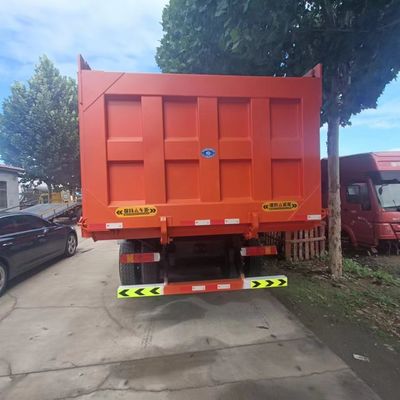

Cargo Body
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Rest assured, at Jining Huahang International Trade Co., Ltd., our commitment to excellence knows no bounds. Each Shacman Sinotruk FAW Heavy Duty Dump Truck is subjected to an exhaustive and meticulous inspection process before it ever reaches your hands. Every truck chassis is scrutinized with unparalleled attention to detail, ensuring exceptional quality and unmatched performance that guarantees your complete satisfaction.
1. Engine: We ensure flawless engine starts by meticulously inspecting for any signs of oil leakage and conducting rigorous emissions checks. Issues such as black smoke, blue smoke, and white smoke are diligently scrutinized, ensuring that all emissions adhere to our stringent environmental standards.
Black smoke, blue smoke, and white smoke are meticulously scrutinized, ensuring all emissions comply with our stringent environmental standards.
2. Transmission: We rigorously verify the precision of each transmission gear position, ensuring seamless gear shifting and optimal performance under a variety of driving conditions.
3. Axle: Our thorough inspection includes checking for oil leakage and confirming smooth driving performance, ensuring you a trouble-free experience.
4. Frame: We conduct detailed checks for any deformities in the frame, ensuring the structural integrity and safety of our trucks.
5. Additional Checks: All headlights and wipers are rigorously tested for full functionality, providing you with utmost peace of mind on every journey.
We extend our heartfelt gratitude for choosing the esteemed Jining Huahang International Trade Co., Ltd. Your trust in us is our greatest asset.
Q: What is the expected delivery time for your products?
A: At Jining Huahang International Trade Co., Ltd., we take immense pride in our unparalleled operational efficiency. Most of our robust trucks and precision-engineered machinery are in stock, ensuring swift dispatch within a mere 7 days. For items requiring special orders, we maintain a streamlined production process of around 30 days, ensuring you receive precisely what you need without any compromise on quality.
Q: What is your annual handling capacity for trucks?
A: We are proud to manage an impressive volume, handling nearly 30,000 units annually. With a remarkable monthly turnover of 5,000 units, our extensive capacity and unwavering reliability are a testament to our dedication to excellence.
Q: What measures do you take to ensure product quality?
A: Our factory is equipped with a state-of-the-art production workshop, staffed by a team of highly skilled professionals. We implement a stringent inspection process for each product, ensuring all our trucks and machinery undergo comprehensive reconditioning. This meticulous approach guarantees the highest quality standards in the industry.
Q: Do you accept custom orders, and what is your minimum order quantity (MOQ)?
A: Absolutely, we welcome custom orders meticulously tailored to your specific requirements. Our minimum order quantity (MOQ) is just 1 unit, offering unparalleled convenience and flexibility for our valued clients.
