Customization 480HP Heavy Duty Truck with Tubeless Tire Design and Air Suspension Seat

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

Customization 480HP Heavy Duty Truck with Tubeless Tire Design and Air Suspension Seat

Customization 480HP Heavy Duty Truck with Tubeless Tire Design and Air Suspension Seat
Customization 480HP Heavy Duty Truck with Tubeless Tire Design and Air Suspension Seat Customization 480HP Heavy Duty Truck with Tubeless Tire Design and Air Suspension Seat Customization 480HP Heavy Duty Truck with Tubeless Tire Design and Air Suspension Seat Customization 480HP Heavy Duty Truck with Tubeless Tire Design and Air Suspension Seat Customization 480HP Heavy Duty Truck with Tubeless Tire Design and Air Suspension Seat

Large Image :  Customization 480HP Heavy Duty Truck with Tubeless Tire Design and Air Suspension Seat

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

Customization 480HP Heavy Duty Truck with Tubeless Tire Design and Air Suspension Seat

Description
Model NO.: ZZ4257N3247E1H Power: Diesel
Load Capacity: 31-40t Emission Standard: Euro 5
Drive Wheel: 6×4 Seats: ≤5
Horsepower: 540HP Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: Used Usage: Towing Semi Trailer
Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 6.5x2.5x4m Trademark: Sinotruk
Origin: China Shandong HS Code: 8708991000
Supply Ability: 1000pieces/Year Package Size: 650.00cm * 250.00cm * 400.00cm
Package Gross Weight: 8800.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

480HP Heavy Duty Truck with Air Suspension Seat for Towing

Product Use

1. Definition of Tractor
A tractor is a multi-functional light truck celebrated for its outstanding towing prowess. With one or more pairs of wheels and axles, it reliably tows heavy-duty vehicles like semi-trailers, luxury yachts, and construction equipment. This versatility makes it an indispensable asset in the realm of heavy transport.
2. Structure of the Tractor
A tractor is meticulously designed with fundamental components such as the engine, transmission, tires, and frame. Its enhanced functionality is further amplified by optional features including tow hooks, advanced locking systems, and remote controls, ensuring optimal operation and precision.
3. Tractor Application Fields
1. Transportation: Tractors are integral to long-distance freight, adeptly towing semi-trailers and large trucks. This ensures the safe and efficient delivery of goods to their destinations.
2. Construction: Tractors are crucial for towing various construction machinery such as excavators, bulldozers, and cranes. They facilitate the efficient transport of heavy equipment to construction sites.

Basic Info.

480HP Heavy Duty Truck with Air Suspension Seat for Towing
480HP Heavy Duty Truck with Air Suspension Seat for Towing
480HP Heavy Duty Truck with Air Suspension Seat for Towing

480HP Heavy Duty Truck with Air Suspension Seat for Towing
480HP Heavy Duty Truck with Air Suspension Seat for Towing
480HP Heavy Duty Truck with Air Suspension Seat for Towing

480HP Heavy Duty Truck with Air Suspension Seat for Towing480HP Heavy Duty Truck with Air Suspension Seat for Towing
480HP Heavy Duty Truck with Air Suspension Seat for Towing
480HP Heavy Duty Truck with Air Suspension Seat for Towing
480HP Heavy Duty Truck with Air Suspension Seat for Towing


Basic Information

driver license:
A2
Announcement Model:
ZZ4256V324HE1W
Drive type:
6X4
Wheelbase:
3200+1400mm
engine:
Sinotruk MC13.48-50
Gearbox:
Sinotruk HW25716XSTCL
Rear axle ratio:
3.7
Body length:
6.895 m
Body width:
2.496 m
Ride height:
3.98 m
Front track:
2022mm
Rear track:
1830/1830mm
Vehicle weight:
8.8 tons
Total mass:
25 tons
Total traction mass:
40 tons
Maximum speed:
101km/h
Market segments:
Dangerous Goods Transport
Origin:
Zhangqiu, Shandong
Tonnage level:
Heavy Truck
Version:
Hazardous Chemicals
Fuel Type:
diesel fuel




Engine Parameters

engine model:
Sinotruk MC13.48-50
Engine Brand:
Sinotruk
Number of cylinders:
6 cylinders
Fuel type:
diesel fuel
Cylinder arrangement:
series
Displacement:
12.419L
Emission Standards:
Country Five
Maximum horsepower:
480 hp
Maximum output power:
353kW
Maximum Torque:
2300N·m
Maximum torque speed:
1050-1400rpm
Rated speed:
1900rpm
Technical route:
Common Rail SCR

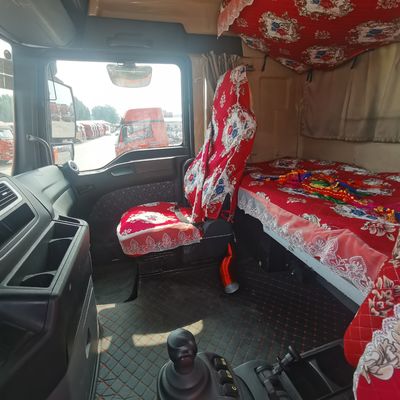

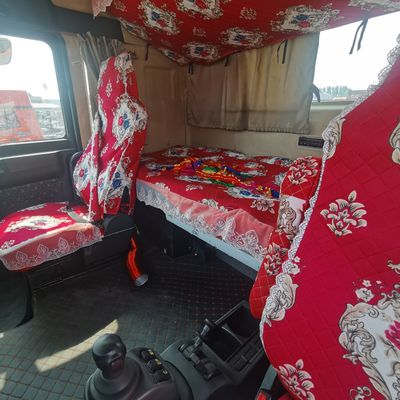

Cab Parameters

Cab:
High Top
Lower berth width:
800mm
Number of passengers allowed:
3 people
Number of Seat Rows:
Half row
Driver's seat type:
Airbag shock absorbing seat




Gearbox Parameters

Gearbox Model:
Sinotruk HW25716XSTCL
Gearbox brand:
Sinotruk
Shifting method:
Manual
Forward gears:
16 levels
Number of downs:
2
Shell Material:
Aluminum Alloy


Tank

Fuel tank/gas tank material:
Aluminum Alloy
Fuel tank capacity:
400L

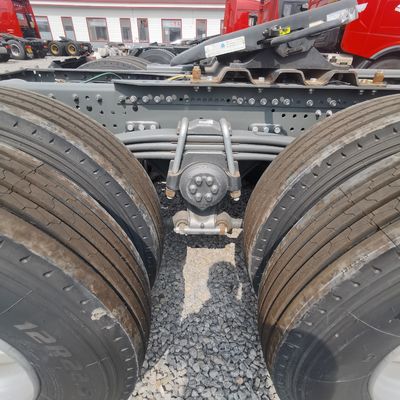

Chassis Parameters

Frame size:
TGA-Bmm
Front axle description:
VPD75ES
Rear Axle Description:
MCY11BES
Permissible load on front axle:
7000kg
Permissible load on rear axle:
18000(two-axle group)kg
Speed ratio:
3.7
Number of springs:
2/-/-
Suspension type (front/rear):
Front three back empty
Aluminum Alloy Wheels:




Tire

Number of tires:
10
Tire specifications:
295/80R22.5,12R22.5



Shipment

We typically ship the truck via RO-RO or bulk vessel but can also use special containers for shipping.
480HP Heavy Duty Truck with Air Suspension Seat for Towing


Original Spare Parts
We provide genuine spare parts along with a comprehensive after-sales service system. Our After-market Division is dedicated to delivering exceptional service with a streamlined supply chain for swift parts delivery.
480HP Heavy Duty Truck with Air Suspension Seat for Towing

Our Product
480HP Heavy Duty Truck with Air Suspension Seat for Towing

Thanks for Choosing Us

Q: How about the delivery time?
A: Most of our trucks and machinery are in stock, facilitating delivery within 7 days. For specially ordered items, the typical production time is around 30 days.

Q: How many units of trucks do you produce per year?
A: We manufacture nearly 30,000 units annually, with approximately 5,000 units updated each month.

Q: How do you control product quality?
A: Our factory features a standardized production workshop with highly trained workers. Each product undergoes a rigorous inspection process to ensure our trucks and machinery meet professional standards.

Q: Do you accept custom orders? What's your MOQ?
A: Yes, we accept custom orders with a minimum order quantity (MOQ) of just 1 unit.
