Discover the extraordinary power and unwavering reliability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Crafted for excellence, this formidable machine offers an impressive 18-25cbm capacity, effortlessly meeting the demands of any heavy-duty task. Engineered for superior performance, it ensures your hauling needs are met with unparalleled precision and power.
Product Description
Our versatile Dump Truck, also known as a Dumper Truck, Tipper Truck, or simply Tipper, is expertly designed to conquer all your heavy-duty hauling needs, effortlessly and efficiently.
Meticulously engineered, our dump trucks feature an exceptionally strong chassis, a spacious tipping box, and a powerful hydraulic cylinder. These components make them ideal for transporting sand, stone, gravel, and more. As a leading supplier, we offer a range of configurations including 4x2, 6x4, and 8x4 models, customized to meet your specific requirements and ensure optimal performance.
Key Advantages of Our Dump Truck:
1. Perfect for transporting earthwork, gravel, bulk materials, and more.
2. Efficient unloading at a specific angle, significantly enhancing production efficiency and reducing downtime.
3. Economical design that helps lower transportation costs, ensuring maximum value for your investment.
4. Customizable design to cater to diverse customer needs, ensuring flexibility and adaptability for various applications.
Dump Truck Description:
The automatic tipping mechanism of the loading carriage allows for unloading at a predetermined angle, saving considerable time and labor. This boosts production efficiency, shortens the transportation cycle, and cuts down on transportation costs, making it essential for specialized transportation and ensuring smooth operations.
1. Appearance-Based Classification: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck.
2. Purpose-Based Classification: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck.
3. Driving Mode-Based Classification: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks.
4. Use-Based Classification: mining dump trucks for transporting coal, sand, and gravel; environmental sanitation and green dump trucks for garbage transportation, etc.
5. Rollover Direction Classification: front lift and rollover dump trucks; two-way side dump trucks primarily used in construction projects.
Detailed Photos
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Main Specifications:

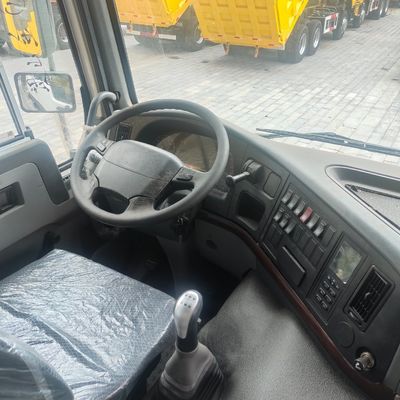

Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System:
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch:
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission:
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle:
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle:
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis:
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System:
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System:
| Capable of maintaining the sound level as low as possible. |
Steering:
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper:
| Installed heavy duty front and rear steel bumpers |
Brake System:
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres:
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System:
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System:
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions:
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Cargo Body:
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed enterprise, Jining Huahang International Trade Co., Ltd., shines as a beacon of expertise in the global exportation of new trucks, pre-owned trucks, state-of-the-art construction machinery, and versatile semitrailers. With over 15 years of unparalleled experience in trailer manufacturing and 8 years of stellar performance in marketing used trucks and machinery, we proudly stand at the forefront of the industry.
Our company prioritizes meticulous attention to every detail of our vehicles. Prior to delivery, each vehicle undergoes a rigorous road test conducted by our skilled engineers to ensure top-notch performance and reliability.
Through our unwavering commitment to excellence, we have honed the perfection of our vehicles, enabling us to guarantee the exceptional quality of our trucks and trailers. We confidently offer our customers a Three-Month Warranty on all trucks and trailers. Our company's ethos, 'Buy Easily, Service Assured,' encapsulates our dedication to customer satisfaction, which remains our highest pursuit.
Year after year, we've proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks, equipped with Hydraulic Steering and Power Assistance, to numerous countries across Africa. This extraordinary achievement underscores our steadfast dedication to delivering unmatched quality and reliability in commercial transportation solutions. With each shipment, we fortify our connections with international partners, ensuring that our trucks propel the success of enterprises across the continent, solidifying our reputation for excellence.
Each premium truck from Jining Huahang International Trade Co., Ltd. undergoes a meticulous and thorough multi-point inspection process before delivery, ensuring top-tier performance and uncompromised safety standards.
1. Engine: Our rigorous checks include verifying that the engine starts seamlessly. We inspect meticulously for any signs of oil leakage and monitor for any emissions of black, blue, or white smoke to guarantee optimal engine health.
Ensuring the absence of black, blue, or white smoke emissions is paramount for both optimal performance and adherence to stringent environmental standards.
2. Transmission: We meticulously verify the precision of transmission gear positions, ensuring smooth and flawless shifting for a superior driving experience.
3. Axle: We conduct thorough inspections to check for any oil leaks and to ensure that the axle functions normally and efficiently during driving.
4. Frame: We perform detailed inspections to detect any signs of deformation, guaranteeing the frame's structural integrity and reliability.
5. Headlights and Wiper: Our detailed inspection ensures that both headlights and wipers are functioning perfectly, guaranteeing safe and reliable operation at all times.
Thank You for Choosing Jining Huahang International Trade Co., Ltd.
Q: How about the delivery time?
A: We pride ourselves on our efficiency and reliability. Most of our trucks and machines are readily available in our inventory, enabling us to deliver within an exceptionally swift 7 days. For custom orders, we typically require about 30 days to meticulously craft a product that meets your precise specifications. Your satisfaction and timely delivery are our top priorities.
Q: How many units of trucks do you produce annually?
A: Our production capabilities are truly remarkable. We achieve an impressive annual output of nearly 30,000 units. Each month, we refresh our stock with around 5,000 new units, underscoring our commitment to continuous innovation, unmatched efficiency, and top-tier quality. This ensures that we can meet the ever-growing demands of our esteemed customers.
Q: How do you control the quality of your products?
A: Quality is our utmost priority and we take it very seriously. Our factory is equipped with a state-of-the-art production workshop, staffed by a team of highly skilled and dedicated professionals. Each truck and machine undergoes a rigorous inspection and comprehensive reconditioning process to ensure it adheres to our stringent quality standards. Our dedication to excellence ensures you receive only the best.
Q: Do you accept custom orders? What is your MOQ?
A: Definitely, we welcome custom orders with open arms. Our minimum order quantity (MOQ) is just 1 unit, offering you unparalleled flexibility and a wide array of customization options tailored to your unique needs. We aim to provide solutions that perfectly align with your specific requirements.
