Unleash the extraordinary power and steadfast reliability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Crafted with precision, this impressive machine boasts an 18-25cbm capacity, effortlessly tackling any heavy-duty task with unparalleled performance and power.
Product Description
Introducing our versatile Dump Truck, also known as a Dumper Truck, Tipper Truck, or simply Tipper. This expertly engineered vehicle is designed to meet all your heavy-duty hauling requirements with ease and efficiency.
Our meticulously engineered dump trucks feature a robust chassis, spacious tipping box, and a powerful hydraulic cylinder, making them ideal for transporting materials like sand, stone, and gravel. As a leading supplier, we offer a variety of configurations including 4x2, 6x4, and 8x4 models, tailored to meet your specific needs and ensure optimal performance.
Key Advantages of Our Dump Truck:
1. Perfectly suited for transporting earthwork, gravel, bulk materials, and more.
2. Efficient unloading at precise angles, significantly boosting production efficiency and minimizing downtime.
3. Economical design that reduces transportation costs, delivering maximum value for your investment.
4. Customizable design to address diverse customer needs, providing flexibility and adaptability for various applications.
Dump Truck Description:
Equipped with an automatic tipping mechanism, the loading carriage allows for unloading at a predetermined angle, saving substantial time and labor. This feature enhances production efficiency, shortens the transportation cycle, and reduces costs, making it indispensable for specialized transportation and seamless operations.
1. Appearance-Based Classification: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck.
2. Purpose-Based Classification: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck.
3. Driving Mode-Based Classification: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks.
4. Use-Based Classification: mining dump trucks for transporting coal, sand, and gravel; environmental sanitation and green dump trucks for garbage transportation, etc.
5. Rollover Direction Classification: front lift and rollover dump trucks; two-way side dump trucks primarily used in construction projects.

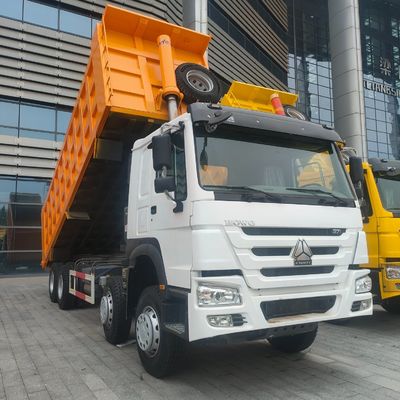

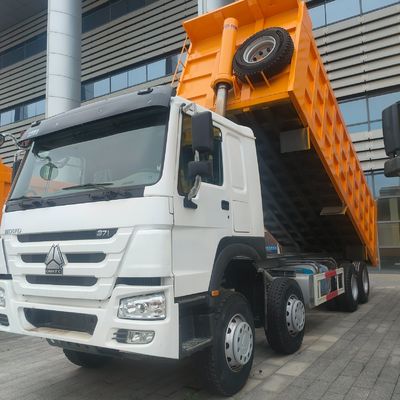

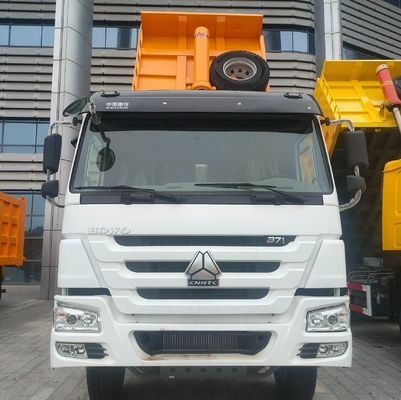

Detailed Photos
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Main Specifications:

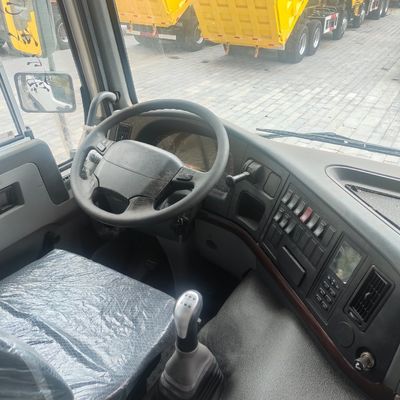

Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System:
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch:
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission:
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle:
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle:
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis:
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System:
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System:
| Capable of maintaining the sound level as low as possible. |
Steering:
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper:
| Installed heavy duty front and rear steel bumpers |
Brake System:
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres:
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System:
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System:
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions:
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |

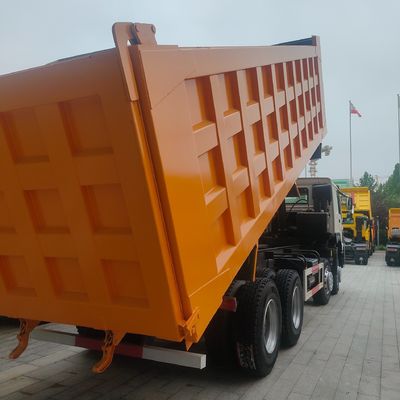

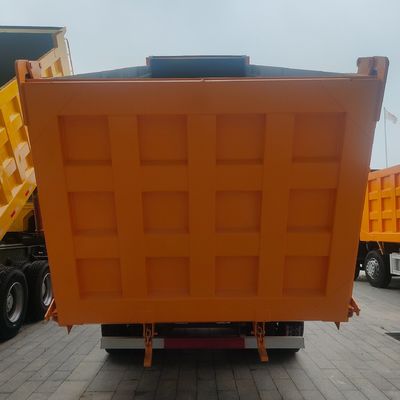

Cargo Body:
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed enterprise, Jining Huahang International Trade Co., Ltd., shines as a beacon of expertise in the global exportation of new trucks, pre-owned trucks, state-of-the-art construction machinery, and versatile semitrailers. With over 15 years of unparalleled experience in trailer manufacturing and 8 years of stellar performance in marketing used trucks and machinery, we proudly stand at the forefront of the industry.
Our company prioritizes meticulous attention to every detail of our vehicles. Prior to delivery, each vehicle undergoes a rigorous road test conducted by our skilled engineers to ensure top-notch performance and reliability.
Through our unwavering commitment to excellence, we have honed the perfection of our vehicles, enabling us to guarantee the exceptional quality of our trucks and trailers. We confidently offer our customers a Three-Month Warranty on all trucks and trailers. Our company's ethos, 'Buy Easily, Service Assured,' encapsulates our dedication to customer satisfaction, which remains our highest pursuit.
Year after year, we've proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks featuring Hydraulic Steering and Power Assistance to numerous countries across Africa, further cementing our reputation for excellence. This extraordinary achievement underscores our steadfast dedication to delivering unmatched quality and reliability in commercial transportation solutions. With each shipment, we fortify our connections with international partners, ensuring that our trucks propel the success of enterprises across the continent.
Each of our premium trucks undergoes a meticulous, multi-point inspection process before delivery, ensuring top-tier performance and uncompromised safety. Our rigorous process guarantees that every vehicle we deliver is of the highest standard.
1. Engine: Our rigorous checks include verifying that the engine starts seamlessly, inspecting for any signs of oil leakage, and monitoring for black, blue, or white smoke emissions. These thorough inspections confirm that the engine operates at peak efficiency.
Ensuring zero emissions of black, blue, or white smoke is paramount for both optimal performance and adherence to stringent environmental standards. This commitment to eco-friendly operations aligns with regulatory compliance and our dedication to sustainability.
2. Transmission: We meticulously verify the precision of transmission gear positions, confirming smooth and flawless shifting without any issues. This ensures a seamless driving experience and prolongs the lifespan of your vehicle.
3. Axle: We conduct thorough inspections to check for any oil leaks and ensure that the axle operates normally and efficiently during driving. Our detailed checks guarantee the reliability and performance of the axle system.
4. Frame: We perform detailed inspections to detect any signs of deformation, ensuring the frame's structural integrity and reliability. This ensures that your vehicle maintains its durability and safety over time.
5. Headlights and Wipers: Our inspection guarantees that both headlights and wipers are functioning perfectly, ensuring safe and reliable operation. We prioritize visibility and safety in all driving conditions.
Thank You for Choosing Jining Huahang International Trade Co., Ltd.
Q: How about the delivery time?
A: We pride ourselves on our efficiency and timely deliveries. With most of our trucks and machines already in-stock, we can deliver within a swift 7 days. For bespoke custom orders, we typically require around 30 days to ensure every detail is tailored to your exact specifications.
Q: How many units of trucks do you produce annually?
A: Our production capabilities are nothing short of extraordinary, boasting an annual output of nearly 30,000 units. Each month, we rejuvenate our inventory with around 5,000 units, reflecting our relentless commitment to innovation and superior quality.
Q: How do you control the quality of your products?
A: Quality is the cornerstone of our operations. Our state-of-the-art production workshop is manned by a team of highly skilled professionals. Every truck and machine undergoes a meticulous inspection and reconditioning process, ensuring it meets our rigorous quality standards.
Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we wholeheartedly welcome custom orders. With a minimum order quantity (MOQ) of just 1 unit, we provide unparalleled flexibility and customization options, tailored precisely to your unique requirements.
