Unleash the unparalleled power and reliability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Engineered for excellence, this behemoth boasts a remarkable 18-25cbm capacity, effortlessly meeting the demands of any heavy-duty application. Built for superior performance, this truck ensures your hauling needs are met with precision and power.
Product Description
Our versatile Dump Truck, also known as a Dumper Truck, Tipper Truck, or simply Tipper, is meticulously crafted to fulfill all your heavy-duty hauling requirements.
Masterfully crafted, our dump trucks feature an exceptionally robust chassis, a commodious tipping box, and a potent hydraulic cylinder. These elements make them perfect for transporting sand, stone, gravel, and more. As a leading supplier, we offer a variety of configurations including 4x2, 6x4, and 8x4 models, tailored to meet your specific needs and ensure optimal performance.
Key Advantages of Our Dump Truck:
1. Perfect for transporting earthwork, gravel, bulk materials, and more.
2. Efficient unloading at a specific angle, significantly boosting production efficiency and reducing downtime.
3. Economical design that helps reduce transportation costs, ensuring maximum value for your investment.
4. Customizable design to cater to diverse customer requirements, ensuring flexibility and adaptability for various applications.
Dump Truck Description:
The automatic tipping mechanism of the loading carriage allows for unloading at a predetermined angle, saving substantial time and labor. This enhances production efficiency, shortens the transportation cycle, and cuts down on transportation costs, making it a staple in specialized transportation and ensuring seamless operations.
1. Appearance-Based Classification: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck.
2. Purpose-Based Classification: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck.
3. Driving Mode-Based Classification: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks.
4. Use-Based Classification: mining dump trucks for transporting coal, sand, and gravel; environmental sanitation and green dump trucks for garbage transportation, etc.
5. Rollover Direction Classification: front lift and rollover dump trucks; two-way side dump trucks primarily used in construction projects.

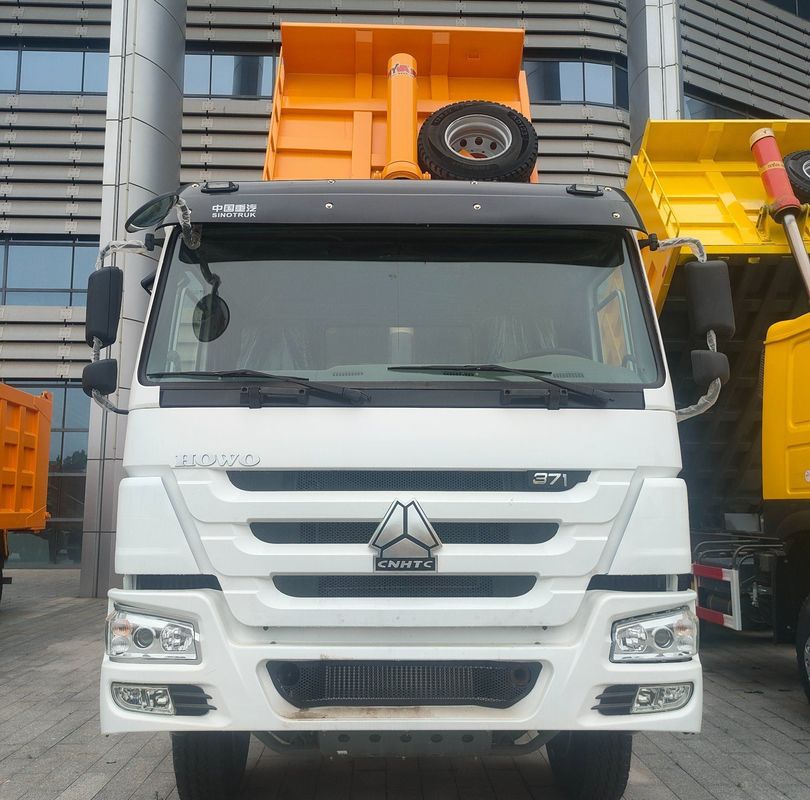

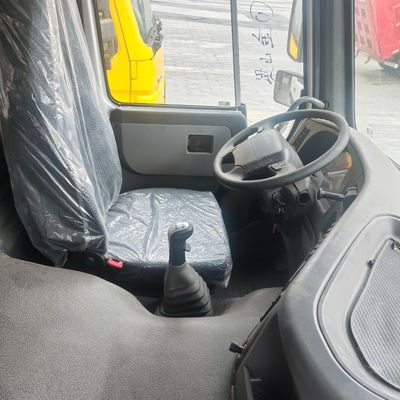

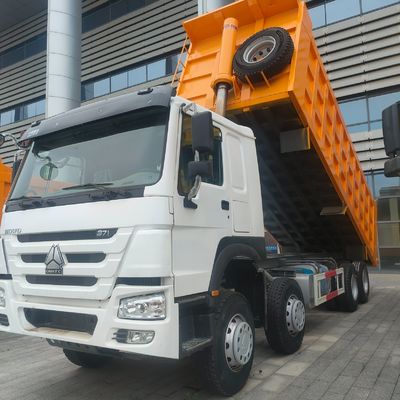

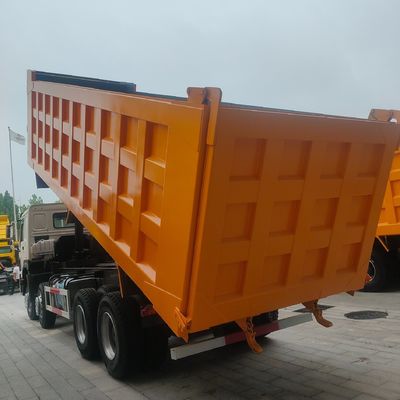

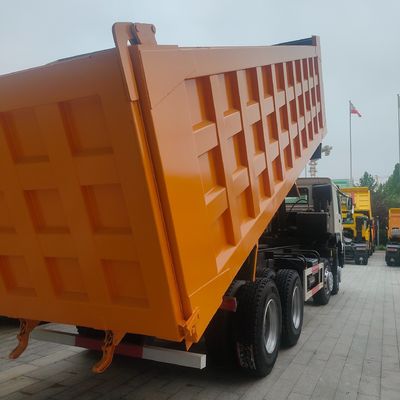

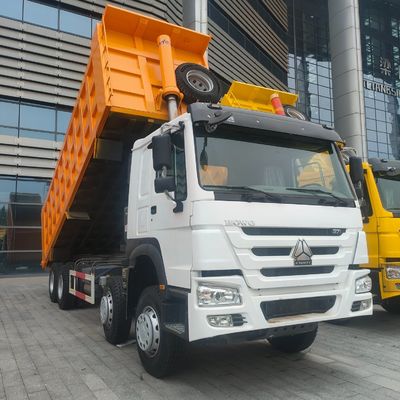

Detailed Photos
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Main Specifications:
Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System:
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch:
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission:
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle:
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle:
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis:
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System:
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System:
| Capable of maintaining the sound level as low as possible. |
Steering:
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper:
| Installed heavy duty front and rear steel bumpers |
Brake System:
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres:
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System:
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System:
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions:
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Cargo Body:
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed enterprise, Jining Huahang International Trade Co., Ltd., shines as a beacon of expertise in the global exportation of new trucks, pre-owned trucks, state-of-the-art construction machinery, and versatile semitrailers. With over 15 years of unparalleled experience in trailer manufacturing and 8 years of stellar performance in marketing used trucks and machinery, we proudly stand at the forefront of the industry.
Our company prioritizes meticulous attention to every detail of our vehicles. Prior to delivery, each vehicle undergoes a rigorous road test conducted by our skilled engineers to ensure top-notch performance and reliability.
Through our unwavering commitment to excellence, we have meticulously honed our processes, ensuring our vehicles exemplify premium quality. Each truck and trailer from our collection comes with a Three-Month Warranty, underscoring our confidence in their durability and superior performance. Our guiding principle, 'Buy Easily, Service Assured,' reflects our relentless dedication to customer satisfaction, which remains our utmost priority.
Year after year, we've proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks with Hydraulic Steering and Power Assistance to various countries across Africa, solidifying our reputation for excellence. This remarkable feat underscores our unwavering commitment to delivering unparalleled quality and reliability in commercial transportation solutions. With each shipment, we strengthen our bonds with international partners, ensuring that our trucks drive the success of businesses across the continent. Our trucks are not just vehicles; they are the engines of growth, moving the wheels of industry and commerce forward with unmatched durability and performance. Experience the pinnacle of efficiency and dependability with our Shacman HOWO 6X4 Cargo Trucks, and be a part of a legacy of excellence that transcends borders and fuels global progress.
Every one of our premium trucks undergoes an exhaustive, multi-point inspection process before delivery. This rigorous approach ensures top-tier performance and uncompromised safety, embodying our unwavering commitment to excellence. Your truck arrives in pristine condition, ready to tackle any challenge with unparalleled reliability.
1. Engine: Our thorough checks involve ensuring the engine starts seamlessly, inspecting for any signs of oil leakage, and monitoring for black, blue, or white smoke emission. These meticulous examinations guarantee the engine's efficient and reliable operation.
Ensuring zero emissions of black, blue, or white smoke is crucial for optimal performance and compliance with stringent environmental standards. Our trucks not only meet but exceed all environmental regulations, fostering a greener future.
2. Transmission: We meticulously verify the precision of transmission gear positions, ensuring smooth and flawless shifting. This detailed attention guarantees a seamless driving experience and enhances the vehicle's overall longevity.
3. Axle: We perform comprehensive inspections to check for oil leaks and ensure the axle operates efficiently during driving. Our rigorous checks promise maximum performance and reliability in all driving conditions.
4. Frame: We carry out detailed inspections to identify any signs of deformation, ensuring the frame's structural integrity and durability. Our stringent standards ensure each truck's frame is robust and resilient, ready to withstand any load.
5. Headlights and Wipers: Our inspections guarantee that both headlights and wipers are functioning perfectly, ensuring safe and reliable operation. Clear visibility and effective weather management are essential for driving safety, and we ensure both are optimized to the highest standards.
Thank You for Choosing Jining Huahang International Trade Co., Ltd.
Q: How about the delivery time?
A: We pride ourselves on fast delivery. Most of our Premium HOWO 371HP heavy-duty dump trucks and other machines are readily available in stock, allowing us to deliver within an impressive 7 days. For custom orders, we require around 30 days to ensure we meet your specific needs perfectly.
Q: How many units of trucks do you produce annually?
A: Our production prowess is unmatched, with nearly 30,000 units manufactured annually. Each month sees the addition of about 5,000 new units, showcasing our dedication to continuous innovation and superior quality.
Q: How do you control the quality of your products?
A: Our state-of-the-art production workshop and highly skilled workforce ensure every product adheres to the highest quality standards. Each dump truck and machine undergoes rigorous inspection and professional reconditioning to guarantee top-notch performance.
Q: Do you accept custom orders? What is your MOQ?
A: Yes, we gladly accept custom orders. With a minimum order quantity (MOQ) of just 1 unit, we offer exceptional flexibility and tailored solutions to meet your unique requirements.
