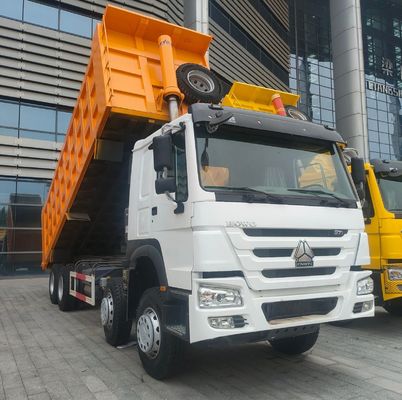

Experience the unrivaled power and dependability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Designed for peak performance, this colossal vehicle features a staggering 18-25cbm capacity, effortlessly accommodating all heavy-duty tasks. Crafted for superior efficiency, this truck delivers unparalleled precision and strength to meet your every hauling need.
Product Description
Our multi-functional Dump Truck, also known as a Dumper Truck, Tipper Truck, or simply Tipper, is meticulously engineered to satisfy all your heavy-duty transport requirements.
Exquisitely designed, our dump trucks boast a highly durable chassis, an expansive tipping box, and a powerful hydraulic cylinder. These attributes make them ideal for transporting sand, stone, gravel, and more. As a premier supplier, we offer a broad range of configurations, including 4x2, 6x4, and 8x4 models, custom-tailored to meet your specific demands and ensure peak performance.
Key Advantages of Our Dump Truck:
1. Optimal for transporting earthwork, gravel, bulk materials, and more.
2. Efficient unloading at an exact angle, significantly enhancing production efficiency and minimizing downtime.
3. Cost-effective design that helps lower transportation expenses, guaranteeing maximum value for your investment.
4. Customizable design to meet diverse customer needs, ensuring versatility and adaptability across various applications.
Dump Truck Description:
The automatic tipping mechanism of the loading carriage facilitates unloading at a designated angle, saving considerable time and labor. This boosts production efficiency, shortens the transportation cycle, and decreases transportation costs, making it indispensable in specialized transport and ensuring smooth operations.
1. Appearance-Based Classification: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck.
2. Purpose-Based Classification: agricultural dump truck, mining dump truck, garbage dump truck, coal transport dump truck, construction machinery dump truck, sludge dump truck.
3. Driving Mode-Based Classification: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks.
4. Usage-Based Classification: mining dump trucks for transporting coal, sand, and gravel; eco-friendly dump trucks for garbage transport, etc.
5. Rollover Direction Classification: front lift and rollover dump trucks; two-way side dump trucks mainly used in construction projects.
Detailed Photos
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Main Specifications:

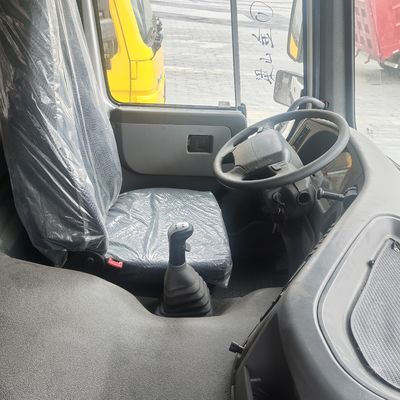

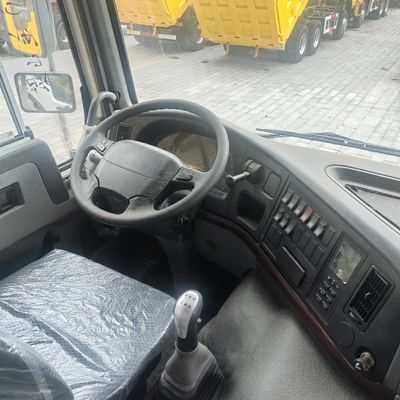

Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System:
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch:
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission:
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle:
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle:
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis:
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System:
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System:
| Capable of maintaining the sound level as low as possible. |
Steering:
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper:
| Installed heavy duty front and rear steel bumpers |
Brake System:
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres:
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System:
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System:
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions:
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |

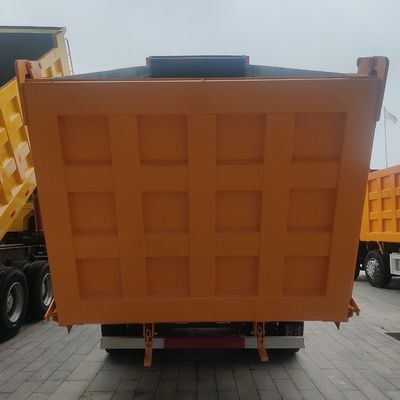

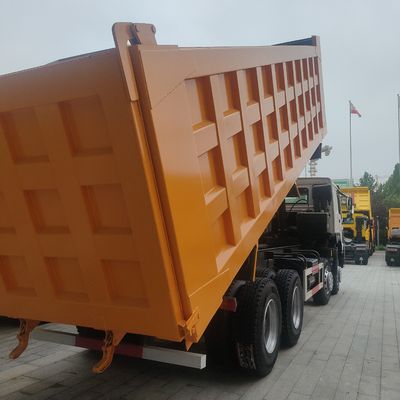

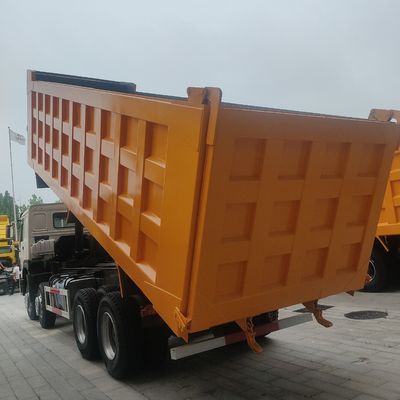

Cargo Body:
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed enterprise, Jining Huahang International Trade Co., Ltd., shines as a beacon of expertise in the global export of new trucks, pre-owned trucks, cutting-edge construction machinery, and versatile semitrailers. With over 15 years of unmatched experience in trailer manufacturing and 8 years of stellar performance in marketing used trucks and machinery, we proudly lead the industry with our extensive knowledge and unwavering commitment to quality.
At Jining Huahang International Trade Co., Ltd., meticulous attention to detail is our hallmark. Every vehicle undergoes a rigorous road test by our skilled engineers before delivery, ensuring top-notch performance and unwavering reliability. This meticulous process underscores our steadfast commitment to excellence.
Relentlessly committed to perfection, we guarantee the exceptional quality of our trucks and trailers. Trusting in our superior offerings, we provide a comprehensive Three-Month Warranty on all trucks and trailers. Our company ethos, 'Buy Easily, Service Assured,' epitomizes our dedication to ultimate customer satisfaction, which stands as our highest pursuit.
Year after year, we've proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks with Hydraulic Steering and Power Assistance to various countries across Africa, solidifying our reputation for excellence. This remarkable feat underscores our unwavering commitment to delivering unparalleled quality and reliability in commercial transportation solutions. With each shipment, we strengthen our bonds with international partners, ensuring that our trucks drive the success of businesses across the continent. As a leading Reliable Dump Truck Dealer Offering Sinotruk Chassis Brand with New Tyres, Jining Huahang International Trade Co., Ltd. continues to set industry standards and pioneer advancements in commercial transportation.
Each of our premium trucks undergoes a meticulous, multi-point inspection process before delivery, ensuring top-tier performance and uncompromised safety.
1. Engine: Our rigorous checks include verifying that the engine starts seamlessly, inspecting for any signs of oil leakage, and monitoring for black, blue, or white smoke emissions-ensuring your vehicle is in prime condition.
Ensuring zero emissions of black, blue, or white smoke is paramount for both optimal performance and adherence to stringent environmental standards, thereby guaranteeing a cleaner and more efficient engine operation.
2. Transmission: We meticulously verify the precision of transmission gear positions, confirming smooth and flawless shifting without any issues, providing you with a seamless driving experience.
3. Axle: We conduct thorough inspections to check for any oil leaks and ensure that the axle operates normally and efficiently during driving, guaranteeing reliability and performance.
4. Frame: Detailed inspections are performed to detect any signs of deformation, ensuring the frame's structural integrity and enduring reliability. This keeps your truck robust under all conditions.
5. Headlights and Wiper: Our thorough inspection guarantees that both headlights and wipers are perfectly functioning, ensuring safe and reliable operation in all weather conditions.
Thank You for Choosing Jining Huahang International Trade Co., Ltd.
Q: How about the delivery time?
A: Most of our trucks and machines are readily available in stock, enabling us to deliver them to you within just 7 days. For specially ordered items, we typically require around 30 days for production, ensuring you get exactly what you need.
Q: How many units of trucks do you produce annually?
A: We take pride in our robust production capabilities, manufacturing almost 30,000 units annually. Each month, nearly 5,000 units are updated, reflecting our commitment to innovation and quality.
Q: How do you control the quality of your products?
A: Our production facilities are equipped with state-of-the-art technology, and our skilled workforce ensures meticulous attention to detail. Each truck and machine undergoes a rigorous inspection process. We professionally recondition our products to adhere to the highest quality standards.
Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we do accept custom orders. Our minimum order quantity (MOQ) is just 1 unit, offering you unparalleled flexibility and customization.
