Prepare to experience unmatched power and reliability with the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Designed to excel, this colossal machine boasts an impressive 18-25cbm capacity, effortlessly fulfilling the demands of any heavy-duty application. Engineered for superior performance, this truck ensures your hauling needs are met with precision and unparalleled power.
Product Description
Our highly versatile Dump Truck, also known as a Dumper Truck, Tipper Truck, or simply Tipper, is meticulously designed to meet all your heavy-duty hauling requirements with precision.
Expertly engineered, our dump trucks feature an extraordinarily robust chassis, a spacious tipping box, and a powerful hydraulic cylinder. These elements make them ideal for transporting sand, stone, gravel, and more. As a leading supplier, we offer a variety of configurations, including 4x2, 6x4, and 8x4 models, tailored to meet your specific needs and ensure optimal performance.
Key Advantages of Our Dump Truck:
1. Ideal for transporting earthwork, gravel, bulk materials, and more.
2. Efficient unloading at a precise angle, significantly boosting production efficiency and reducing downtime.
3. Cost-effective design that helps reduce transportation expenses, ensuring maximum value for your investment.
4. Customizable design to cater to diverse customer requirements, ensuring flexibility and adaptability for various applications.
Dump Truck Description:
The automatic tipping mechanism of the loading carriage allows for unloading at a preset angle, saving substantial time and labor. This enhances production efficiency, shortens the transportation cycle, and reduces transportation costs, making it essential in specialized transportation and ensuring seamless operations.
1. Appearance-Based Classification: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck.
2. Purpose-Based Classification: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck.
3. Driving Mode-Based Classification: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks.
4. Use-Based Classification: mining dump trucks for transporting coal, sand, and gravel; environmental sanitation and green dump trucks for garbage transportation, etc.
5. Rollover Direction Classification: front lift and rollover dump trucks; two-way side dump trucks primarily used in construction projects.

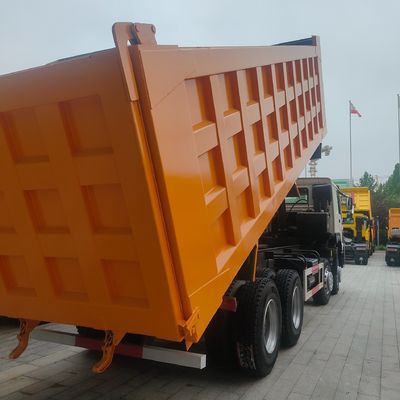

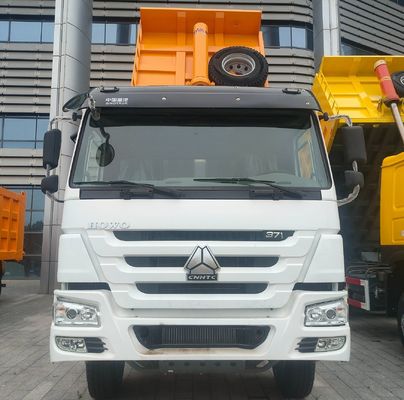

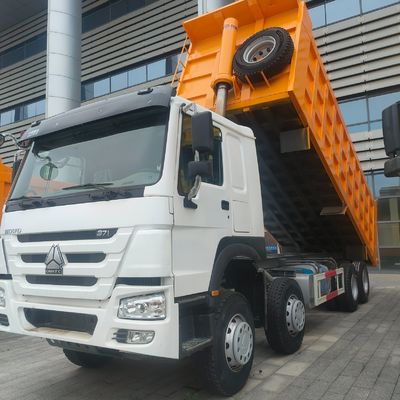

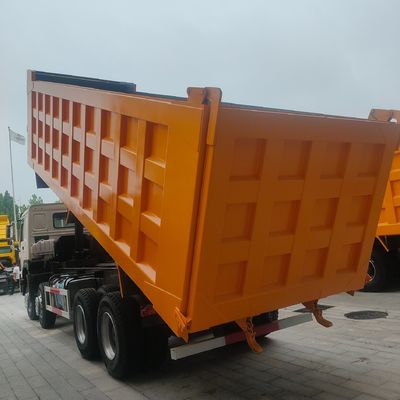

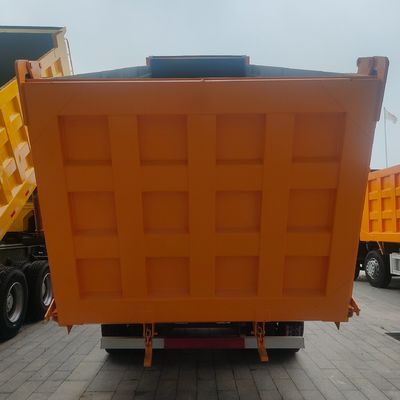

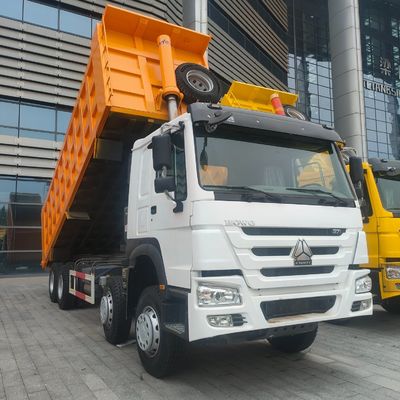

Detailed Photos
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Main Specifications:
Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System:
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch:
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission:
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle:
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle:
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis:
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System:
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System:
| Capable of maintaining the sound level as low as possible. |
Steering:
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper:
| Installed heavy duty front and rear steel bumpers |
Brake System:
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres:
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System:
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System:
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions:
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Cargo Body:
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed enterprise, Jining Huahang International Trade Co., Ltd., stands as a beacon of unparalleled expertise in the global exportation of new and pre-owned trucks, cutting-edge construction machinery, and versatile semitrailers. Boasting over 15 years of unmatched experience in trailer manufacturing and 8 years of exceptional performance in marketing used trucks and machinery, we proudly lead the industry with our extensive knowledge and unwavering commitment to supreme quality.
At our company, meticulous attention to detail is paramount. Each vehicle undergoes a rigorous road test conducted by our highly skilled engineers before delivery, ensuring top-tier performance and steadfast reliability. This thorough process is a testament to our unwavering dedication to excellence.
Through our relentless pursuit of perfection, we guarantee the exceptional quality of our trucks and trailers. Confident in the superiority of our offerings, we provide a comprehensive Three-Month Warranty on all trucks and trailers. Our company ethos, 'Buy Easily, Service Assured,' encapsulates our unwavering dedication to ultimate customer satisfaction, our highest aspiration.
Year after year, Jining Huahang International Trade Co., Ltd. has proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks, equipped with Hydraulic Steering and Power Assistance, to various countries across Africa. This impressive achievement underscores our unwavering commitment to delivering top-tier quality and reliability in commercial transportation solutions. With each successful delivery, we fortify our relationships with international partners, ensuring our trucks drive the success of businesses across the continent. As a leading Reliable Dump Truck Dealer offering Sinotruk Chassis Brand with New Tyres, Jining Huahang International Trade Co., Ltd. continues to set industry standards and pioneer advancements in commercial transportation, reinforcing our reputation for excellence.
Each of our premium trucks undergoes a meticulous, multi-point inspection process before delivery, ensuring top-tier performance and uncompromised safety.
1. Engine: Our rigorous checks include verifying that the engine starts seamlessly, inspecting for any signs of oil leakage, and monitoring for black, blue, or white smoke emissions-ensuring your vehicle is in prime condition.
Ensuring zero emissions of black, blue, or white smoke is paramount for both optimal performance and adherence to stringent environmental standards, thereby guaranteeing a cleaner and more efficient engine operation.
2. Transmission: We meticulously verify the precision of transmission gear positions, confirming smooth and flawless shifting without any issues, providing you with a seamless driving experience.
3. Axle: We conduct thorough inspections to check for any oil leaks and ensure that the axle operates normally and efficiently during driving, guaranteeing reliability and performance.
4. Frame: We perform detailed inspections to detect any signs of deformation, ensuring the frame's structural integrity and enduring reliability, so your truck stays robust under all conditions.
5. Headlights and Wiper: Our inspection guarantees that both headlights and wipers are functioning perfectly, ensuring safe and reliable operation in all weather conditions.
Thank You for Choosing Jining Huahang International Trade Co., Ltd.
Q: How about the delivery time?
A: We pride ourselves on our efficiency. For most of our trucks and machines, we can expedite delivery within just 7 days, as they are readily available in stock. For special orders, we dedicate approximately 30 days to tailor-make your product, ensuring it meets your exact specifications.
Q: How many units of trucks do you produce annually?
A: Boasting formidable production capabilities, we manufacture nearly 30,000 units annually. Our monthly updates of about 5,000 units underscore our relentless commitment to innovation and superior quality.
Q: How do you control the quality of your products?
A: Our cutting-edge production facilities and highly skilled workforce uphold meticulous standards. Each truck and machine is subject to a stringent inspection process. We professionally recondition every product to meet the industry's highest quality benchmarks.
Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we welcome custom orders. Our minimum order quantity (MOQ) is just 1 unit, providing exceptional flexibility and bespoke solutions tailored to your needs.
