Experience the unrivaled power and dependability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Designed for ultimate excellence, this powerhouse showcases an astounding 18-25cbm capacity, seamlessly accommodating the most demanding heavy-duty tasks. Crafted for peak performance, this truck guarantees precision and strength in every haul.
Product Description
Our adaptable Dump Truck, also known as a Dumper Truck, Tipper Truck, or simply Tipper, is meticulously engineered to meet all your heavy-duty hauling needs.
Expertly designed, our dump trucks feature an exceptionally durable chassis, a spacious tipping box, and a powerful hydraulic cylinder. These components make them ideal for transporting sand, stone, gravel, and more. As a leading supplier, we offer numerous configurations, including 4x2, 6x4, and 8x4 models, tailored to your specific requirements to ensure utmost performance.
Key Advantages of Our Dump Truck:
1. Ideal for transporting earthwork, gravel, bulk materials, and more.
2. Efficient unloading at a specific angle significantly enhances production efficiency and reduces downtime.
3. Cost-effective design that minimizes transportation expenses, ensuring maximum return on your investment.
4. Customizable design to meet diverse customer requirements, providing flexibility and adaptability for various applications.
Dump Truck Description:
The automatic tipping mechanism of the loading carriage allows for unloading at a set angle, saving significant time and effort. This boosts production efficiency, shortens transportation cycles, and reduces costs, making it indispensable for specialized transportation and ensuring seamless operations.
1. Appearance-Based Classification: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck.
2. Purpose-Based Classification: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck.
3. Driving Mode-Based Classification: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks.
4. Use-Based Classification: mining dump trucks for transporting coal, sand, and gravel; environmental sanitation and green dump trucks for garbage transportation, etc.
5. Rollover Direction Classification: front lift and rollover dump trucks; two-way side dump trucks primarily used in construction projects.

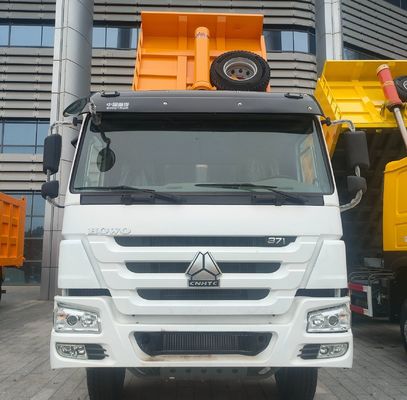

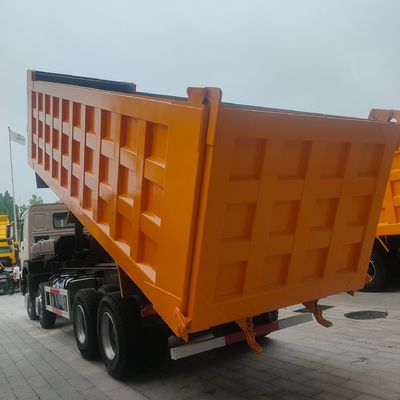

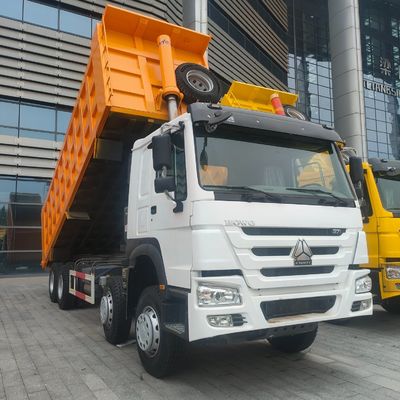

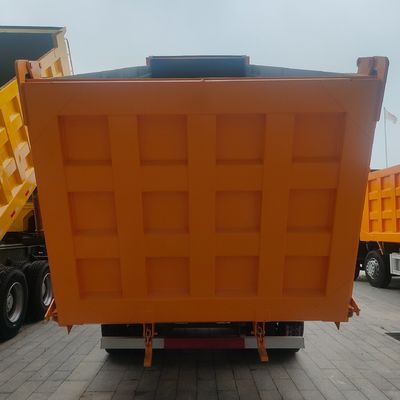

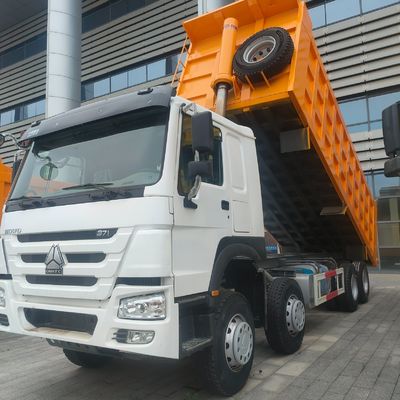

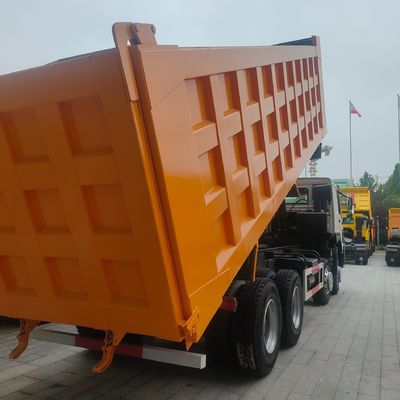

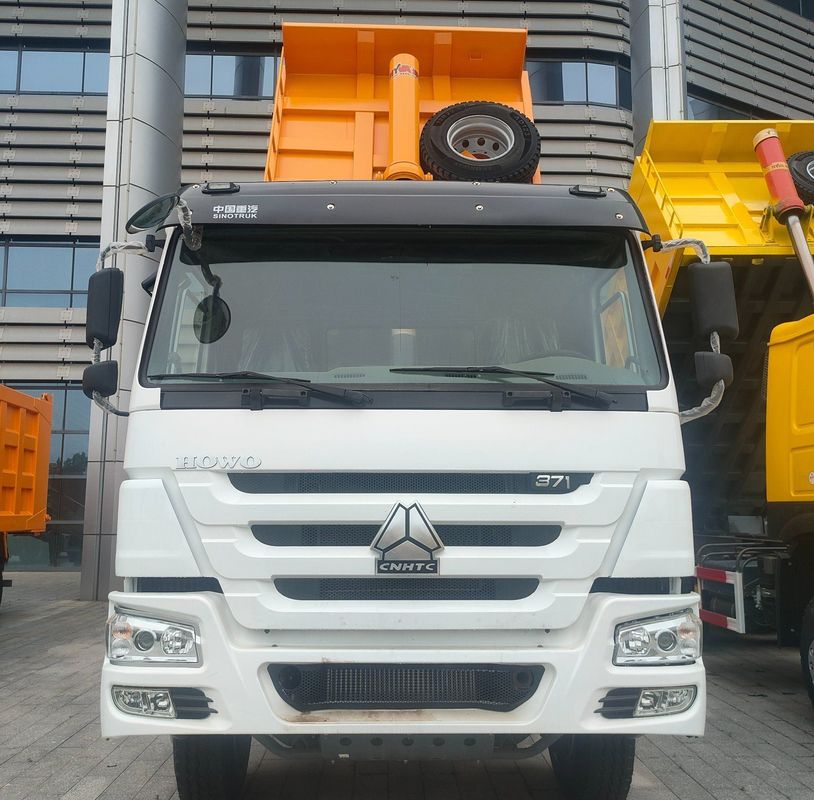

Detailed Photos
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Main Specifications:
Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System:
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch:
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission:
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle:
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle:
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis:
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System:
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System:
| Capable of maintaining the sound level as low as possible. |
Steering:
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper:
| Installed heavy duty front and rear steel bumpers |
Brake System:
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres:
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System:
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System:
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions:
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Cargo Body:
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |
| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed enterprise, Jining Huahang International Trade Co., Ltd., stands as a beacon of expertise in the global exportation of pristine new trucks, meticulously maintained pre-owned trucks, cutting-edge construction machinery, and versatile semitrailers. With an impressive legacy of over 15 years in trailer manufacturing and 8 years excelling in the marketing of used trucks and machinery, we proudly lead the industry with our extensive knowledge and unwavering commitment to unparalleled quality.
At our company, meticulous attention to detail is paramount. Every vehicle undergoes a rigorous road test by our highly skilled engineers before delivery, ensuring optimum performance and steadfast reliability. This thorough process epitomizes our unwavering dedication to excellence.
With our relentless commitment to perfection, we ensure the exceptional quality of our trucks and trailers. Confident in our offerings, we provide an all-encompassing Three-Month Warranty on all trucks and trailers. Our company ethos, 'Buy Easily, Service Assured,' embodies our dedication to ultimate customer satisfaction, which remains our highest pursuit.
Year after year, we've proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks with Hydraulic Steering and Power Assistance to various countries across Africa, solidifying our reputation for excellence. This remarkable feat underscores our unwavering commitment to delivering unparalleled quality and reliability in commercial transportation solutions. With each shipment, we strengthen our bonds with international partners, ensuring that our trucks drive the success of businesses across the continent. As a leading Reliable Dump Truck Dealer Offering Sinotruk Chassis Brand with New Tyres, Jining Huahang International Trade Co., Ltd. continues to set industry standards and pioneer advancements in commercial transportation.
Each of our premium trucks undergoes a meticulous, multi-point inspection process before delivery, ensuring top-tier performance and uncompromised safety.
1. Engine: Our rigorous checks include verifying that the engine starts seamlessly, inspecting for any signs of oil leakage, and monitoring for black, blue, or white smoke emissions-ensuring your vehicle is in prime condition.
Ensuring zero emissions of black, blue, or white smoke is paramount for both optimal performance and adherence to stringent environmental standards, thereby guaranteeing a cleaner and more efficient engine operation.
2. Transmission: We meticulously verify the precision of transmission gear positions, confirming smooth and flawless shifting without any issues, providing you with a seamless driving experience.
3. Axle: We conduct thorough inspections to check for any oil leaks and ensure that the axle operates normally and efficiently during driving, guaranteeing reliability and performance.
4. Frame: We perform detailed inspections to detect any signs of deformation, ensuring the frame's structural integrity and enduring reliability, so your truck stays robust under all conditions.
5. Headlights and Wiper: Our inspection guarantees that both headlights and wipers are functioning perfectly, ensuring safe and reliable operation in all weather conditions.
Thank You for Choosing Jining Huahang International Trade Co., Ltd.
Q: What is the estimated delivery time?
A: Most of our trucks and machines are readily available in stock, enabling us to deliver them to you within a swift 7 days. For specially ordered items, we typically require approximately 30 days for production, ensuring you receive exactly what you need with the utmost precision.
Q: What is your annual production capacity for trucks?
A: We take immense pride in our robust production capabilities, manufacturing an impressive 30,000 units annually. Each month, nearly 5,000 units are updated, showcasing our relentless commitment to innovation and top-tier quality.
Q: How do you ensure the quality of your products?
A: Our state-of-the-art production facilities, combined with our highly skilled workforce, ensure meticulous attention to detail. Every truck and machine undergoes a rigorous inspection process. We professionally recondition our products to adhere to the highest quality standards, guaranteeing exceptional performance and reliability.
Q: Do you accept custom orders, and what is your minimum order quantity (MOQ)?
A: Absolutely, we accept custom orders. Our minimum order quantity (MOQ) is just 1 unit, providing you with unmatched flexibility and customization options to meet your specific needs.
