Experience the unrivaled might and dependability of the Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Designed with engineering brilliance, this colossal machine features an impressive 18-25cbm capacity, seamlessly handling the rigors of any demanding heavy-duty task. Crafted for outstanding performance, this truck ensures your hauling challenges are met with unmatched precision and power.
Product Description
Our highly adaptable Dump Truck, also referred to as a Dumper Truck, Tipper Truck, or simply Tipper, is expertly designed to meet all your heavy-duty hauling needs.
Exquisitely engineered, our dump trucks boast an exceptionally sturdy chassis, a spacious tipping box, and a powerful hydraulic cylinder. These components make them ideal for transporting sand, stone, gravel, and more. As a leading provider, we offer a range of configurations, including 4x2, 6x4, and 8x4 models, meticulously customized to meet your unique requirements and guarantee superior performance.
Key Advantages of Our Dump Truck:
1. Ideal for transporting earthwork, gravel, bulk materials, and more.
2. Efficient unloading at a specific angle, significantly enhancing production efficiency and minimizing downtime.
3. Cost-effective design that helps lower transportation expenses, ensuring maximum return on your investment.
4. Customizable design to meet diverse customer needs, ensuring versatility and adaptability for a wide range of applications.
Dump Truck Description:
The automatic tipping mechanism of the loading carriage allows for unloading at a predetermined angle, saving significant time and labor. This boosts production efficiency, shortens the transportation cycle, and reduces transportation costs, making it indispensable for specialized transportation and ensuring seamless operations.
1. Appearance-Based Classification: single-axle dump truck, double-axle dump truck, flat-head dump truck, pointed tip dump truck, front four-back eight dump truck, double-axle semi-trailer dump truck, three-axle semi-trailer dump truck.
2. Purpose-Based Classification: agricultural dump truck, mining dump truck, garbage dump truck, coal transportation dump truck, construction machinery dump truck, sludge dump truck.
3. Driving Mode-Based Classification: 6x4, 8x4 unloading dump trucks, and semi-trailer dump trucks.
4. Use-Based Classification: mining dump trucks for transporting coal, sand, and gravel; environmental sanitation and green dump trucks for garbage transportation, etc.
5. Rollover Direction Classification: front lift and rollover dump trucks; two-way side dump trucks primarily used in construction projects.

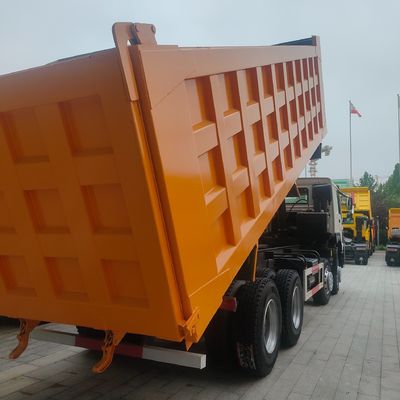

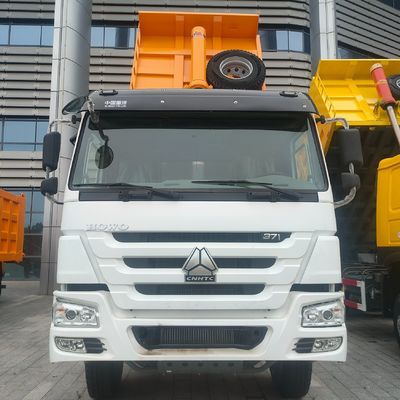

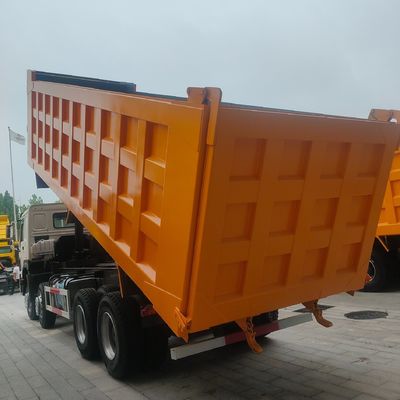

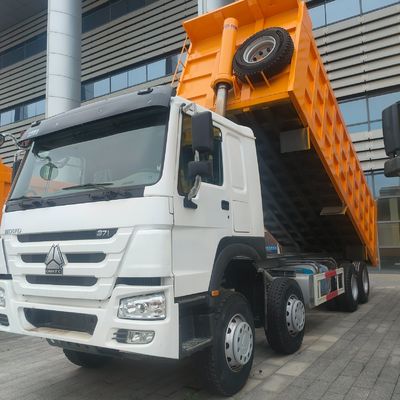

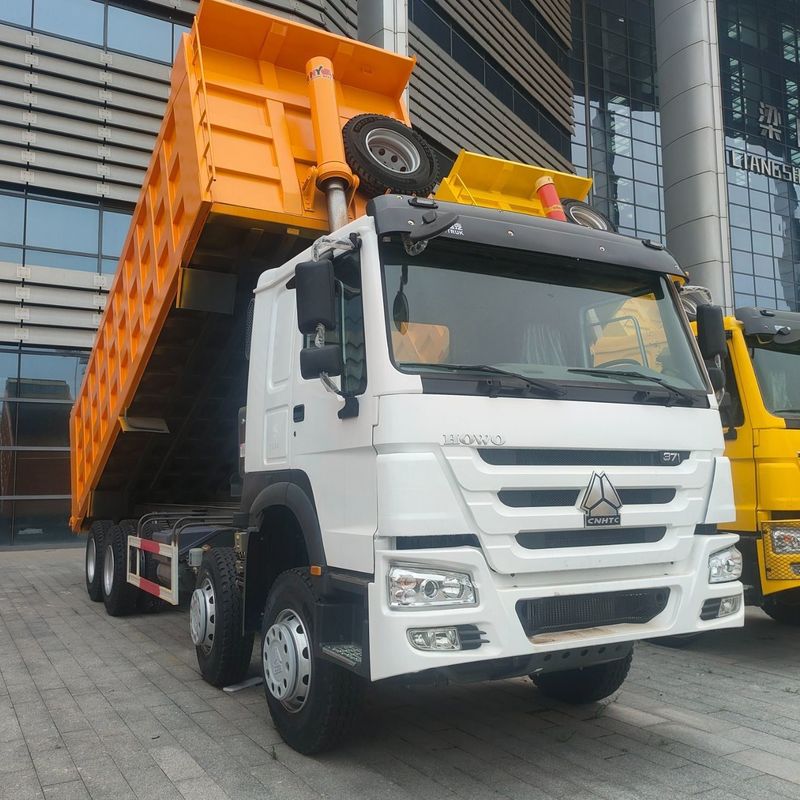

Detailed Photos
| Horsepower | 371 |
| Gearbox type | FAST12JS160T |
| Emission Standards | Euro2/Euro3/Euro4 |
| Fuel | Diesel |
| Displacement | 9.726L |
| Size:Length * width * height | 8.5X2.6X3.6M |
| Total weight | 12100kg |
| Color | optional |
| Engine | WP10.340E32 |
| Fuel tank capacity | 380L |
| Number of springs | 10/12 |
| Power | 250KW |
| Number of tires | 10 |
| Tire specifications | 12.00R20 |
| Cabin | Flat |
| Production Year | 2024 |
Main Specifications:
Driver's Cab:(One sleeper with A/C)
| Model | HW76 Cab, with one sleeper beds, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60o |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging |
| Seats | 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed |
| Seat belts | For driver & passenger |
| Glass | Tempered safety glass |
| Sun visors | Dual, adjustable |
| Mirrors | Large, truck type convex |
| Wind screen wiper | 3 arm wind screen wiper system with 3 speeds |
| Entertainment system | FM/AM/SW, 4 band radio with cassette player, two speaker and antenna |
| Steering wheel | Adjustable steering wheel |
| Horn | Air horn |
| Panel | LCD Panel with LED light |
Engine:
| Engine brand | SINOTRUK |
| Engine model | WD615.47, 380hp |
| Emission Standard | EURO III |
| Engine type | Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling |
| Displacement | 9.726 liters |
| Max. Output | 400hp@2200rpm |
| Max. torque | 1250Nm @1100-1600 rpm |
| Bore/Stroke | 126/130mm |
| Compression ratio | 17:1 |
| Specific fuel consumption | ≤193g/kW.h |
Cooling System:
| Medium | Water |
| Radiator | heavy duty type |
| Cooling fan | Visco static fan tropical type |
| Thermostat | Opening at 70-80ºC |
| Warning device | Audible & visual |
Clutch:
| Type | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
Transmission:
| | Type | Heavy duty, manual fuller type |
| | Model | HW19712 |
| | No of speeds | 12 forward + 2 reverse |
| | |
| Model | Torque(Nm) | Gear Ratios | Oiling
(L) | |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | R1 | R2 | |
| HW19710 | 1900 | 14.28 | 10.62 | 7.87 | 5.88 | 4.38 | 3.27 | 2.43 | 1.80 | 1.34 | 1.00 | 13.91 | 3.18 | 12 | |
| | | | | | | | | | | | | | | | | | |
Front Axle:
| Type | HF9 tons steering with double T-cross section beam |
| Capacity | 9000kg |
Rear Axle:
| Type | HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) |
| Capacity | 16T |
Chassis:
| Frame | Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm) |
| Front suspension | semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm |
| Rear suspension | semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm |
Air Intake System:
| Air cleaner type | Heavy duty type |
| Pre filter | Cyclone |
Exhaust System:
| Capable of maintaining the sound level as low as possible. |
Steering:
| Location | Left hand |
| Model | ZF 8098 (Made in Germany) hydraulic steering with power assistance |
| Variable ratios | 22.2-26.2, 17.0-20.0 |
| Max. pressure | 170+10 bar |
| Max. output torque | 7618 Nm |
| Weight | 42 kg |
Bumper:
| Installed heavy duty front and rear steel bumpers |
Brake System:
| Service brake | Dual circuit compressed air brake. |
| Parking brake | Spring energy, compressed air operating on rear wheels |
| Assistant brake | Engine exhaust valve brake |
Wheels & Tyres:
| Wheels | Single front and dual rear |
| Tyres | Double Coin brand,12.00R20 |
| Quantity | 13 |
Air Supply System:
| Warning device | Audible & visual |
| Air line | Heavy duty steel pipes |
Electrical System:
| Operating Voltage | 24V, Negative grounded; Starter 24V, 7.5KW |
| Battery type | 2x12V, 165Ah/180Ah |
| Alternator | 28V, 1500W |
| Cigar | Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp |
Dimensions:
| Wheel base | 4800mm+1350 |
| Overall length | 9775mm |
| Overall width | 2496mm |
| Overall height | 3730mm |
Cargo Body:
| Internal Size | 6400x2300x1800mm |
| Thickness of body steel | Side 6mm & bottom 8mm |

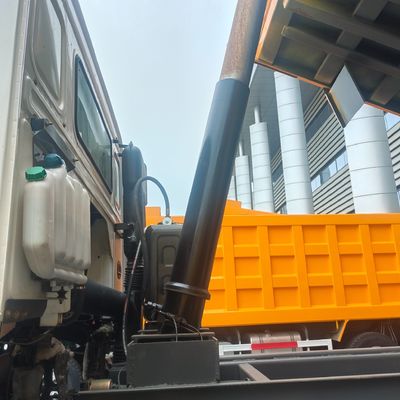

| Tipping type | Front lift type with hydraulic system (HYVA hydraulic cylinder) |
| |
Our esteemed enterprise, Jining Huahang International Trade Co., Ltd., shines as a beacon of expertise in the global exportation of new trucks, pre-owned trucks, state-of-the-art construction machinery, and versatile semitrailers. With over 15 years of unparalleled experience in trailer manufacturing and 8 years of stellar performance in marketing used trucks and machinery, we proudly stand at the forefront of the industry.
Our company prioritizes meticulous attention to every detail of our vehicles. Prior to delivery, each vehicle undergoes a rigorous road test conducted by our skilled engineers to ensure top-notch performance and reliability.
Through our unwavering commitment to excellence, we have perfected our vehicles, enabling us to guarantee exceptional quality in all our trucks and trailers. We confidently offer our customers a Three-Month Warranty on all trucks and trailers. Our company ethos, 'Buy Easily, Service Assured,' encapsulates our dedication to customer satisfaction, which remains our highest pursuit.
Year after year, we've proudly shipped over 1,000 of our robust Shacman HOWO 6X4 Cargo Trucks with Hydraulic Steering and Power Assistance to various countries across Africa, solidifying our reputation for excellence. This remarkable feat underscores our unwavering commitment to delivering unparalleled quality and reliability in commercial transportation solutions. With each shipment, we strengthen our bonds with international partners, ensuring that our trucks drive the success of businesses across the continent. Our trucks are not just vehicles; they are the engines of growth, moving the wheels of industry and commerce forward with unmatched durability and performance. Experience the pinnacle of efficiency and dependability with our Shacman HOWO 6X4 Cargo Trucks, and be a part of a legacy of excellence that transcends borders and fuels global progress.
Each of our premium Sinotruk Chassis HOWO 371HP heavy-duty dump trucks undergoes a meticulous, multi-point inspection process before delivery, ensuring top-tier performance and uncompromised safety. Our unwavering commitment to excellence guarantees that every truck is delivered in pristine condition, ready to conquer any challenge with unparalleled reliability.
1. Engine: Our rigorous checks include verifying that the engine starts seamlessly, inspecting for any signs of oil leakage, and monitoring for black, blue, or white smoke emission. These thorough examinations guarantee that the engine operates efficiently and reliably, promising robust performance in all conditions.
Ensuring zero emissions of black, blue, or white smoke is paramount for both optimal performance and adherence to stringent environmental standards. Our trucks not only meet but exceed all environmental regulations, contributing to a cleaner and greener future for all.
2. Transmission: We meticulously verify the precision of transmission gear positions, confirming smooth and flawless shifting without any issues. This thorough attention to detail ensures a seamless and efficient driving experience, significantly enhancing overall vehicle longevity and reliability.
3. Axle: We conduct thorough inspections to check for any oil leaks and ensure that the axle operates efficiently and reliably during driving. Our comprehensive checks guarantee maximum performance and steadfast reliability under all driving conditions.
4. Frame: We perform detailed inspections to detect any signs of deformation, ensuring the frame's structural integrity and reliability. Our stringent standards ensure that every truck's frame is robust, resilient, and ready to endure the toughest tasks.
5. Headlights and Wiper: Our inspection guarantees that both headlights and wipers are functioning perfectly, ensuring safe and reliable operation. Clear visibility and effective weather management are essential for driving safety, and we meticulously ensure both are optimized for peak performance.
Thank You for Choosing Jining Huahang International Trade Co., Ltd.
Q: How about the delivery time?
A: Most of our Sinotruk Chassis HOWO 371HP heavy-duty dump trucks and machinery are readily available in stock, allowing us to deliver within an impressive timeframe of just 7 days. For specially ordered items, we typically require around 30 days for production, ensuring you receive precisely what you need.
Q: How many units of trucks do you produce annually?
A: We take immense pride in our robust production capabilities, manufacturing nearly 30,000 units annually. Each month, approximately 5,000 units are updated as part of our commitment to continuous innovation and quality.
Q: How do you control the quality of your products?
A: Our factory boasts a state-of-the-art production workshop, staffed by exceptionally skilled workers. Each product undergoes an exhaustive inspection process. We professionally recondition our trucks and machines to ensure they meet the highest standards of quality and reliability.
Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we welcome custom orders. Our minimum order quantity (MOQ) is just 1 unit, offering you unparalleled flexibility and a high degree of customization to meet your specific needs.
