US Currency Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining Towing Semi Trailer

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

US Currency Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining Towing Semi Trailer

US Currency Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining Towing Semi Trailer
US Currency Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining Towing Semi Trailer US Currency Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining Towing Semi Trailer US Currency Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining Towing Semi Trailer US Currency Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining Towing Semi Trailer US Currency Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining Towing Semi Trailer US Currency Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining Towing Semi Trailer

Large Image :  US Currency Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining Towing Semi Trailer

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

US Currency Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining Towing Semi Trailer

Description
Model NO.: BJ3319Y6GRL-01 Power: Diesel
Load Capacity: 31-40t Emission Standard: Euro 6
Drive Wheel: 8×4 Seats: ≤5
Horsepower: 351-450hp Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: New Usage: Towing Semi Trailer
Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 8.76x2.55x3.65 Trademark: Futian
Origin: China Liangshan HS Code: 87019090
Supply Ability: 1000pieces/Year Package Size: 876.00cm * 255.00cm * 365.00cm
Package Gross Weight: 15500.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining

Product Use

1. Definition of Tractor
A tractor is an exceptionally versatile and durable light truck, expertly designed for the purpose of towing vehicles or handling heavy loads effortlessly along highways. With its multiple pairs of wheels and axles, this powerful machine serves as an invaluable resource for the transportation of semi-trailers, luxury yachts, construction equipment, and more. As a vital component of heavy transport logistics, it seamlessly integrates into a wide array of industries, proving essential for their operations.
2. The Structure of the Tractor
A tractor is comprised of numerous critical components, including the engine, transmission, tires, and sturdy frame. Additionally, it can be augmented with auxiliary devices such as tow hooks, sophisticated locking systems, and advanced remote controls, all of which significantly enhance its operational efficiency and ensure unparalleled control, leading to superior performance.
3. Tractor Application Fields
1. Transportation: Within the realm of long-distance freight, tractors are indispensable for towing semi-trailers and large trucks, ensuring the safe and reliable delivery of goods to their final destinations. Their dependability and strength are unmatched, providing consistent service.
2. Construction Field: Tractors are pivotal in towing a wide spectrum of construction machinery, including excavators, bulldozers, and cranes. They enable the seamless and precise transportation of heavy equipment to construction sites, ensuring operations proceed smoothly and efficiently.

Basic Info.

Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining
Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining
Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining



Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining
Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining
Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining
Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining
Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining
Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining
Foton Ouman 8X4 Heavy-Duty Dump Truck for MiningFoton Ouman 8X4 Heavy-Duty Dump Truck for Mining

Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining
Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining
Foton Ouman 8X4 Heavy-Duty Dump Truck for MiningFoton Ouman 8X4 Heavy-Duty Dump Truck for MiningFoton Ouman 8X4 Heavy-Duty Dump Truck for MiningFoton Ouman 8X4 Heavy-Duty Dump Truck for Mining
Basic Information
Driving license: A1,A2,B2 Announcement Model: BJ3319Y6GRL-01
Drive type: 8X4 Wheelbase: 2100+2300+1400mm
engine: Foton DaimlerX12NS6B410 Gearbox: Fast 12JSD240A
Rear axle ratio: 5.92 Body length: 8.76 m
Body width: 2.55 m Ride height: 3.65 m
Front track: 2020/2020mm Rear track: 1880/1880mm
Vehicle weight: 15.5 tons Rated load: 15.37 tons
Total mass: 31 tons Tonnage level: Heavy Truck
Approach Angle: 18 degrees Departure angle: 16 degrees
Origin: Beijing Huairou Market Segments: Urban construction waste
Department: 9 Series Version: Basic
Fuel Type: diesel fuel
Engine parameters
Engine Model: Foton Daimler engineX12NS6B410 Engine Brand: Foton Daimler
Number of cylinders: 6 cylinders Fuel Type: diesel fuel
Displacement: 11.8L Emission standards: National VI
Maximum horsepower: 410 hp Maximum output power: 301kW
Maximum Torque: 2100Nm Maximum torque speed: 1000-1300rpm
Rated speed: 1900rpm
Cargo box parameters
Length of cargo box: 5.6 m Cargo box width: 2.35 m
Cargo box height: 1.5 m Cargo box form: Rear dump type
Cab parameters
Cab width: 2490mm
Gearbox parameters
Gearbox Model: Fast 12JSD240A Gearbox brand: Fast
Forward gears: 12 gears Reverse gear number: 2
tank

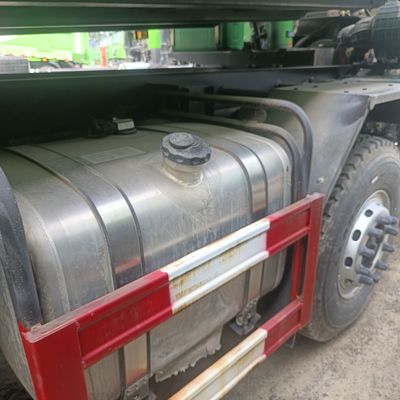

Fuel tank material: Aluminum Alloy Fuel tank capacity: 300L
Chassis parameters
Front axle description: 7.5T Permissible load on front axle: 6500/6500kg
Rear Axle Description: 16T Mercedes Benz Permissible load on rear axle: 18000(two-axle group)kg
Speed €atio: 5.92 Number of springs: 2010/10/12
tire
Tire specifications: 12.00R20 18PR Number of tires: 12
Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining


Shipment

We excel in shipping trucks primarily through RO-RO vessels or bulk vessels, prioritizing both safety and efficiency. Additionally, we offer shipping via special containers, catering to diverse logistical needs with the utmost convenience and ease.
Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining


Original Spare Parts
Our commitment to delivering genuine spare parts is complemented by a superior after-sales service system. Our dedicated After-Market Division ensures exceptional service and the prompt delivery of parts through an efficient and streamlined supply chain system.
Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining

Our Product
Foton Ouman 8X4 Heavy-Duty Dump Truck for Mining

Thank You for Choosing Us

Q: How about the delivery time?
A: We take pride in the availability of the majority of our trucks and machines, allowing for remarkably swift delivery times, often within just 7 days. For specially ordered items, our meticulous and carefully managed production process typically requires about 30 days, ensuring that quality and excellence are consistently upheld.

Q: How many units of truck do you produce per year?
A: Showcasing our robust manufacturing capabilities, we produce approximately 30,000 units annually. With around 5,000 units either updated or manufactured each month, we maintain a dynamic, efficient, and responsive production schedule.

Q: How do you control the quality of the product?
A: Quality stands as our highest priority. Our factory is equipped with a state-of-the-art production workshop and a team of highly-trained workers. Every product undergoes a comprehensive inspection process, ensuring top-notch quality. Furthermore, we meticulously recondition our trucks and machines on a specialized production line to maintain superior standards.

Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we welcome custom orders designed to meet your specific requirements. Our minimum order quantity (MOQ) is just 1 unit, highlighting our flexibility and unwavering commitment to customer satisfaction.
