Carbon Steel Cargo Box Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

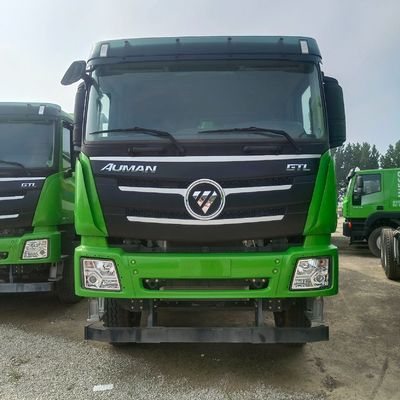

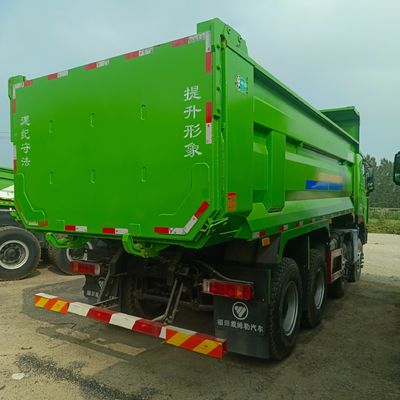

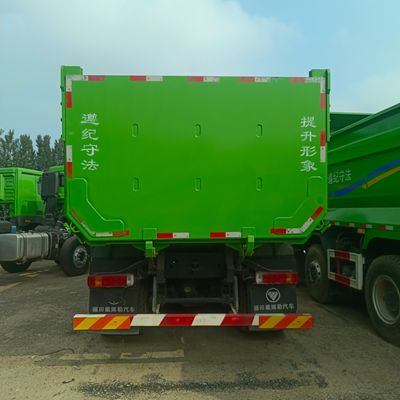

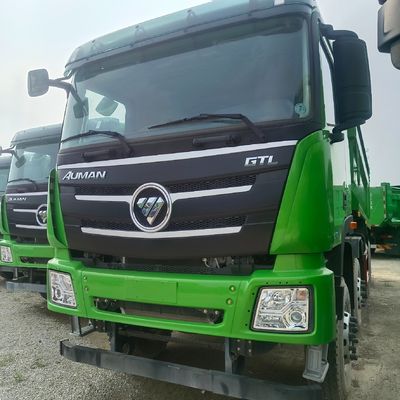

Carbon Steel Cargo Box Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation

Carbon Steel Cargo Box Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation
Carbon Steel Cargo Box Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation Carbon Steel Cargo Box Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation Carbon Steel Cargo Box Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation Carbon Steel Cargo Box Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation Carbon Steel Cargo Box Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation Carbon Steel Cargo Box Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation

Large Image :  Carbon Steel Cargo Box Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

Carbon Steel Cargo Box Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation

Description
Model NO.: BJ3319Y6GRL-01 Power: Diesel
Load Capacity: 31-40t Emission Standard: Euro 6
Drive Wheel: 8×4 Seats: ≤5
Horsepower: 351-450hp Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: New Usage: Towing Semi Trailer
Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 8.76x2.55x3.65 Trademark: Futian
Origin: China Liangshan HS Code: 87019090
Supply Ability: 1000pieces/Year Package Size: 876.00cm * 255.00cm * 365.00cm
Package Gross Weight: 15500.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck

Product Use

1. Definition of Tractor
A tractor is an incredibly versatile and robust light truck, expertly engineered to tow vehicles or heavy loads with efficiency and ease along highways. Featuring multiple pairs of wheels and axles, it is an indispensable asset for transporting semi-trailers, luxury yachts, construction equipment, and more. As a cornerstone of heavy transport logistics, this remarkable machine plays a pivotal role across a diverse range of industries.
2. The Structure of the Tractor
A tractor is composed of several essential components, including the engine, transmission, tires, and frame. It can be further enhanced with auxiliary devices such as tow hooks, locking systems, and remote controls, all meticulously designed to boost its operational efficiency and ensure optimal control for exceptional performance.
3. Tractor Application Fields
1. Transportation: In the realm of long-distance freight, tractors are indispensable for towing semi-trailers and large trucks, ensuring the safe and reliable delivery of goods to their intended destinations with unwavering dependability.
2. Construction Field: Tractors are crucial for towing a broad array of construction machinery, including excavators, bulldozers, and cranes, facilitating the seamless transport of heavy equipment to job sites with effortless precision and reliability.

Basic Info.

Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck
Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck
Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck



Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck
Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck
Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck
Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck
Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck
Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck
Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump TruckOuman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck

Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck
Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck
Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump TruckOuman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump TruckOuman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump TruckOuman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck
Basic Information
Driving license: A1,A2,B2 Announcement Model: BJ3319Y6GRL-01
Drive type: 8X4 Wheelbase: 2100+2300+1400mm
engine: Foton DaimlerX12NS6B410 Gearbox: Fast 12JSD240A
Rear axle ratio: 5.92 Body length: 8.76 m
Body width: 2.55 m Ride height: 3.65 m
Front track: 2020/2020mm Rear track: 1880/1880mm
Vehicle weight: 15.5 tons Rated load: 15.37 tons
Total mass: 31 tons Tonnage level: Heavy Truck
Approach Angle: 18 degrees Departure angle: 16 degrees
Origin: Beijing Huairou Market Segments: Urban construction waste
Department: 9 Series Version: Basic
Fuel Type: diesel fuel
Engine parameters
Engine Model: Foton Daimler engineX12NS6B410 Engine Brand: Foton Daimler
Number of cylinders: 6 cylinders Fuel Type: diesel fuel
Displacement: 11.8L Emission standards: National VI
Maximum horsepower: 410 hp Maximum output power: 301kW
Maximum Torque: 2100Nm Maximum torque speed: 1000-1300rpm
Rated speed: 1900rpm
Cargo box parameters
Length of cargo box: 5.6 m Cargo box width: 2.35 m
Cargo box height: 1.5 m Cargo box form: Rear dump type
Cab parameters
Cab width: 2490mm
Gearbox parameters
Gearbox Model: Fast 12JSD240A Gearbox brand: Fast
Forward gears: 12 gears Reverse gear number: 2
tank
Fuel tank material: Aluminum Alloy Fuel tank capacity: 300L
Chassis parameters
Front axle description: 7.5T Permissible load on front axle: 6500/6500kg
Rear Axle Description: 16T Mercedes Benz Permissible load on rear axle: 18000(two-axle group)kg
Speed €atio: 5.92 Number of springs: 2010/10/12
tire
Tire specifications: 12.00R20 18PR Number of tires: 12
Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck


Shipment

We specialize in shipping trucks primarily via RO-RO vessel or bulk vessel, ensuring utmost safety and efficiency. Additionally, we provide shipping through specialized containers that cater to a wide range of logistical needs with exceptional convenience and ease.
Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck


Original Spare Parts
We are dedicated to delivering genuine spare parts, complemented by an unmatched after-sales service system. Our specialized After-Market Division ensures exemplary service and prompt delivery of parts through an efficient and streamlined supply chain.
Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck

Our Product
Ouman 6X4 8X4 10/12 Wheel Dump Truck for Mining Transportation and Dump Truck

Thank You for Choosing Us

Q: How about the delivery time?
A: We are proud to offer most of our trucks and machines with rapid delivery, available in just 7 days. For specially ordered items, our meticulous production process typically requires about 30 days, ensuring that quality and excellence are always upheld.

Q: How many units of truck do you produce per year?
A: Illustrating our impressive manufacturing capabilities, we produce approximately 30,000 units annually. With about 5,000 units either updated or manufactured each month, we maintain a dynamic and efficient production schedule.

Q: How do you control the quality of the product?
A: Quality is our paramount priority. Our factory boasts a standard production workshop and a team of highly-trained workers. Every product undergoes a meticulous inspection process, ensuring impeccable quality. Additionally, we recondition our trucks and machines on a specialized production line to maintain superior standards.

Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we welcome custom orders to accommodate your unique requirements. Our minimum order quantity (MOQ) is just 1 unit, underscoring our flexibility and commitment to customer satisfaction.
