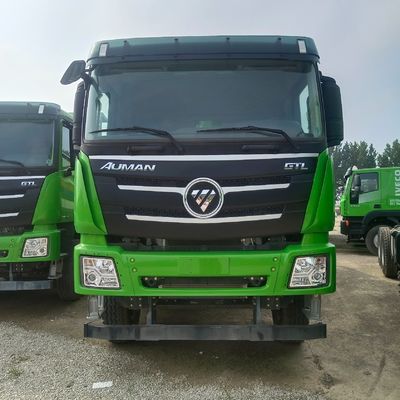

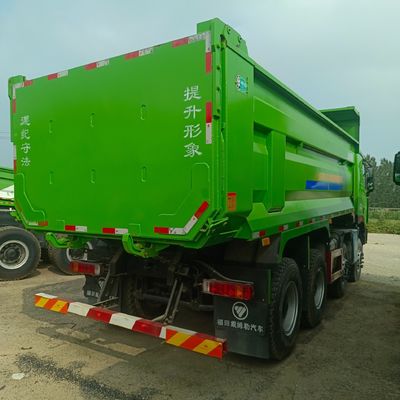

Foton Ouman Transport Dump Truck 8X4 Euro 6 with 1000L Fuel Tank and GCC Certification

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

Foton Ouman Transport Dump Truck 8X4 Euro 6 with 1000L Fuel Tank and GCC Certification

Foton Ouman Transport Dump Truck 8X4 Euro 6 with 1000L Fuel Tank and GCC Certification
Foton Ouman Transport Dump Truck 8X4 Euro 6 with 1000L Fuel Tank and GCC Certification Foton Ouman Transport Dump Truck 8X4 Euro 6 with 1000L Fuel Tank and GCC Certification Foton Ouman Transport Dump Truck 8X4 Euro 6 with 1000L Fuel Tank and GCC Certification Foton Ouman Transport Dump Truck 8X4 Euro 6 with 1000L Fuel Tank and GCC Certification Foton Ouman Transport Dump Truck 8X4 Euro 6 with 1000L Fuel Tank and GCC Certification Foton Ouman Transport Dump Truck 8X4 Euro 6 with 1000L Fuel Tank and GCC Certification

Large Image :  Foton Ouman Transport Dump Truck 8X4 Euro 6 with 1000L Fuel Tank and GCC Certification

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

Foton Ouman Transport Dump Truck 8X4 Euro 6 with 1000L Fuel Tank and GCC Certification

Description
Model NO.: BJ3319Y6GRL-01 Power: Diesel
Load Capacity: 31-40t Emission Standard: Euro 6
Drive Wheel: 8×4 Seats: ≤5
Horsepower: 351-450hp Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: New Usage: Towing Semi Trailer
Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 8.76x2.55x3.65 Trademark: Futian
Origin: China Liangshan HS Code: 87019090
Supply Ability: 1000pieces/Year Package Size: 876.00cm * 255.00cm * 365.00cm
Package Gross Weight: 15500.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

New Foton Ouman Transport Dump Truck 8X4 Euro 6

Product Use

1. Definition of Tractor
A tractor is an exceptionally versatile and robust light truck, masterfully designed to tow vehicles or heavy loads on highways. With its multiple pairs of wheels and axles, it becomes an indispensable asset for hauling semi-trailers, luxury yachts, construction equipment, and more. Standing as a cornerstone of heavy transport, it plays a pivotal role across a myriad of industries, ensuring versatility and reliability in every application.
2. The Structure of the Tractor
A tractor is comprised of several vital components: the engine, transmission, tires, and frame. It might also be equipped with auxiliary devices such as tow hooks, locking systems, and remote controls, all designed to amplify its efficiency and control, ensuring peak performance and reliability in every operation.
3. Tractor Application Fields
1. Transportation: In the realm of long-distance freight, tractors are absolutely indispensable for towing semi-trailers and large trucks, guaranteeing the secure and timely delivery of goods to their ultimate destinations.
2. Construction Field: Tractors are vital in towing a diverse array of construction machinery, including excavators, bulldozers, and cranes, effortlessly facilitating the transport of heavy equipment to various job sites.

Basic Info.

New Foton Ouman Transport Dump Truck 8X4 Euro 6
New Foton Ouman Transport Dump Truck 8X4 Euro 6
New Foton Ouman Transport Dump Truck 8X4 Euro 6



New Foton Ouman Transport Dump Truck 8X4 Euro 6
New Foton Ouman Transport Dump Truck 8X4 Euro 6
New Foton Ouman Transport Dump Truck 8X4 Euro 6
New Foton Ouman Transport Dump Truck 8X4 Euro 6
New Foton Ouman Transport Dump Truck 8X4 Euro 6
New Foton Ouman Transport Dump Truck 8X4 Euro 6


New Foton Ouman Transport Dump Truck 8X4 Euro 6New Foton Ouman Transport Dump Truck 8X4 Euro 6

New Foton Ouman Transport Dump Truck 8X4 Euro 6
New Foton Ouman Transport Dump Truck 8X4 Euro 6
New Foton Ouman Transport Dump Truck 8X4 Euro 6New Foton Ouman Transport Dump Truck 8X4 Euro 6New Foton Ouman Transport Dump Truck 8X4 Euro 6New Foton Ouman Transport Dump Truck 8X4 Euro 6
Basic Information
Driving license: A1,A2,B2 Announcement Model: BJ3319Y6GRL-01
Drive type: 8X4 Wheelbase: 2100+2300+1400mm
engine: Foton DaimlerX12NS6B410 Gearbox: Fast 12JSD240A
Rear axle ratio: 5.92 Body length: 8.76 m
Body width: 2.55 m Ride height: 3.65 m
Front track: 2020/2020mm Rear track: 1880/1880mm
Vehicle weight: 15.5 tons Rated load: 15.37 tons
Total mass: 31 tons Tonnage level: Heavy Truck
Approach Angle: 18 degrees Departure angle: 16 degrees
Origin: Beijing Huairou Market Segments: Urban construction waste
Department: 9 Series Version: Basic
Fuel Type: diesel fuel
Engine parameters
Engine Model: Foton Daimler engineX12NS6B410 Engine Brand: Foton Daimler
Number of cylinders: 6 cylinders Fuel Type: diesel fuel
Displacement: 11.8L Emission standards: National VI
Maximum horsepower: 410 hp Maximum output power: 301kW
Maximum Torque: 2100Nm Maximum torque speed: 1000-1300rpm
Rated speed: 1900rpm
Cargo box parameters
Length of cargo box: 5.6 m Cargo box width: 2.35 m
Cargo box height: 1.5 m Cargo box form: Rear dump type
Cab parameters
Cab width: 2490mm
Gearbox parameters
Gearbox Model: Fast 12JSD240A Gearbox brand: Fast
Forward gears: 12 gears Reverse gear number: 2
tank
Fuel tank material: Aluminum Alloy Fuel tank capacity: 300L
Chassis parameters
Front axle description: 7.5T Permissible load on front axle: 6500/6500kg
Rear Axle Description: 16T Mercedes Benz Permissible load on rear axle: 18000(two-axle group)kg
Speed €atio: 5.92 Number of springs: 2010/10/12
tire
Tire specifications: 12.00R20 18PR Number of tires: 12
New Foton Ouman Transport Dump Truck 8X4 Euro 6
