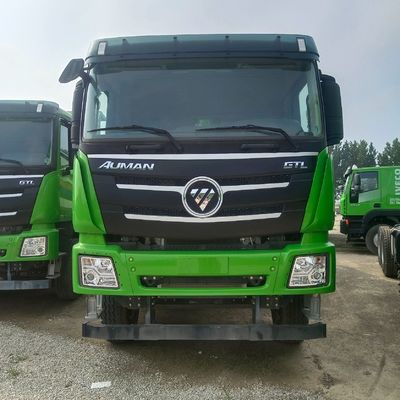

31-40t Manual Transmission Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat 2024

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

31-40t Manual Transmission Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat 2024

31-40t Manual Transmission Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat 2024
31-40t Manual Transmission Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat 2024 31-40t Manual Transmission Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat 2024 31-40t Manual Transmission Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat 2024 31-40t Manual Transmission Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat 2024 31-40t Manual Transmission Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat 2024 31-40t Manual Transmission Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat 2024

Large Image :  31-40t Manual Transmission Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat 2024

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

31-40t Manual Transmission Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat 2024

Description
Model NO.: BJ3319Y6GRL-01 Power: Diesel
Load Capacity: 31-40t Emission Standard: Euro 6
Drive Wheel: 8×4 Seats: ≤5
Horsepower: 351-450hp Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: New Usage: Towing Semi Trailer
Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 8.76x2.55x3.65 Trademark: Futian
Origin: China Liangshan HS Code: 87019090
Supply Ability: 1000pieces/Year Package Size: 876.00cm * 255.00cm * 365.00cm
Package Gross Weight: 15500.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat

Product Use

1. Definition of Tractor
A tractor is an extraordinary marvel of engineering, known for its exceptional versatility and robustness. Specifically designed to tow vehicles or handle heavyweight loads, these light trucks navigate highways with grace and strength. With multiple pairs of wheels and axles, they become indispensable to logistics, effortlessly transporting semi-trailers, opulent yachts, hefty construction equipment, and more. As the backbone of heavy transport, tractors are pivotal in various industries, underpinning their operational success.
2. The Structure of the Tractor
The intricately designed tractor comprises crucial components such as the engine, transmission, tires, and frame. Enhanced with additional features like tow hooks, locking systems, and remote controls, it ensures heightened efficiency and supreme command over each journey, resulting in unparalleled performance.
3. Tractor Application Fields
1. Transportation: In the realm of long-distance freight, tractors are vital for towing semi-trailers and substantial trucks, ensuring the secure and dependable delivery of goods to their intended destinations, maintaining reliability without fail.
2. Construction Field: Tractors are indispensable in towing various construction machinery, such as excavators, bulldozers, and cranes, seamlessly facilitating the transportation of heavy equipment to job sites with remarkable accuracy and ease.

Basic Info.

2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat
2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat
2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat



2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat
2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat
2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat
2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat
2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat
2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat
2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat

2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat
2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat
2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat
Basic Information
Driving license: A1,A2,B2 Announcement Model: BJ3319Y6GRL-01
Drive type: 8X4 Wheelbase: 2100+2300+1400mm
engine: Foton DaimlerX12NS6B410 Gearbox: Fast 12JSD240A
Rear axle ratio: 5.92 Body length: 8.76 m
Body width: 2.55 m Ride height: 3.65 m
Front track: 2020/2020mm Rear track: 1880/1880mm
Vehicle weight: 15.5 tons Rated load: 15.37 tons
Total mass: 31 tons Tonnage level: Heavy Truck
Approach Angle: 18 degrees Departure angle: 16 degrees
Origin: Beijing Huairou Market Segments: Urban construction waste
Department: 9 Series Version: Basic
Fuel Type: diesel fuel
Engine parameters
Engine Model: Foton Daimler engineX12NS6B410 Engine Brand: Foton Daimler
Number of cylinders: 6 cylinders Fuel Type: diesel fuel
Displacement: 11.8L Emission standards: National VI
Maximum horsepower: 410 hp Maximum output power: 301kW
Maximum Torque: 2100Nm Maximum torque speed: 1000-1300rpm
Rated speed: 1900rpm
Cargo box parameters
Length of cargo box: 5.6 m Cargo box width: 2.35 m
Cargo box height: 1.5 m Cargo box form: Rear dump type
Cab parameters
Cab width: 2490mm
Gearbox parameters
Gearbox Model: Fast 12JSD240A Gearbox brand: Fast
Forward gears: 12 gears Reverse gear number: 2
tank
Fuel tank material: Aluminum Alloy Fuel tank capacity: 300L
Chassis parameters
Front axle description: 7.5T Permissible load on front axle: 6500/6500kg
Rear Axle Description: 16T Mercedes Benz Permissible load on rear axle: 18000(two-axle group)kg
Speed €atio: 5.92 Number of springs: 2010/10/12
tire
Tire specifications: 12.00R20 18PR Number of tires: 12
2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat


Shipment

With a focus on safety and efficiency, we specialize in shipping trucks through RO-RO vessels or bulk vessels. Additionally, we offer specialized container shipping that caters to an extensive range of logistical requirements, ensuring convenience and simplicity at every step.
2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat


Original Spare Parts
Our commitment to excellence extends to delivering authentic spare parts backed by an unparalleled after-sales service system. Our dedicated After-Market Division guarantees outstanding service and prompt delivery of parts through a streamlined and efficient supply chain.
2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat

Our Product
2024 New Foton Auman 8X4 Dump Truck with Air Suspension Driver Seat

Thank You for Choosing Us

Q: How about the delivery time?
A: Our trucks and machines are usually available for delivery with impressive swiftness, often within just 7 days. For special orders, our meticulous production process typically requires around 30 days, ensuring that quality and excellence are flawlessly maintained.

Q: How many units of truck do you produce per year?
A: Our formidable manufacturing prowess allows us to produce approximately 30,000 units annually. With about 5,000 units updated or manufactured monthly, our production schedule is both dynamic and highly efficient.

Q: How do you control the quality of the product?
A: Quality is our highest priority. Our state-of-the-art factory hosts a standard production workshop manned by a team of highly-trained professionals. Every product is subjected to a rigorous inspection process to ensure top-tier quality, with an additional reconditioning line dedicated to maintaining exceptional standards.

Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we welcome custom orders tailored to your specific needs. Our minimum order quantity (MOQ) is just 1 unit, highlighting our flexibility and unwavering commitment to customer satisfaction.
