Carbon Steel 30 Ton Ouman 6X4 8X4 Dump Truck for Performance Euro 6 Emission Standard

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

Carbon Steel 30 Ton Ouman 6X4 8X4 Dump Truck for Performance Euro 6 Emission Standard

Carbon Steel 30 Ton Ouman 6X4 8X4 Dump Truck for Performance Euro 6 Emission Standard
Carbon Steel 30 Ton Ouman 6X4 8X4 Dump Truck for Performance Euro 6 Emission Standard Carbon Steel 30 Ton Ouman 6X4 8X4 Dump Truck for Performance Euro 6 Emission Standard Carbon Steel 30 Ton Ouman 6X4 8X4 Dump Truck for Performance Euro 6 Emission Standard Carbon Steel 30 Ton Ouman 6X4 8X4 Dump Truck for Performance Euro 6 Emission Standard Carbon Steel 30 Ton Ouman 6X4 8X4 Dump Truck for Performance Euro 6 Emission Standard Carbon Steel 30 Ton Ouman 6X4 8X4 Dump Truck for Performance Euro 6 Emission Standard

Large Image :  Carbon Steel 30 Ton Ouman 6X4 8X4 Dump Truck for Performance Euro 6 Emission Standard

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

Carbon Steel 30 Ton Ouman 6X4 8X4 Dump Truck for Performance Euro 6 Emission Standard

Description
Model NO.: BJ3319Y6GRL-01 Power: Diesel
Load Capacity: 31-40t Emission Standard: Euro 6
Drive Wheel: 8×4 Seats: ≤5
Horsepower: 351-450hp Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: New Usage: Towing Semi Trailer
Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 8.76x2.55x3.65 Trademark: Futian
Origin: China Liangshan HS Code: 87019090
Supply Ability: 1000pieces/Year Package Size: 876.00cm * 255.00cm * 365.00cm
Package Gross Weight: 15500.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck

Product Use

1. Definition of Tractor
A tractor is a versatile and robust light truck, meticulously designed to tow vehicles or carry heavy loads over highways with ease. Featuring multiple pairs of wheels and axles, it is an indispensable asset for transporting semi-trailers, luxury yachts, and construction equipment. This cornerstone of heavy transport plays a pivotal role across numerous industries.
2. The Structure of the Tractor
A tractor consists of several vital components: the engine, transmission, tires, and frame. It may also be equipped with auxiliary devices such as tow hooks, locking systems, and remote controls. These additions enhance its efficiency and control, guaranteeing superior performance and dependability.
3. Tractor Application Fields
1. Transportation: In the domain of long-distance freight, tractors are essential for towing semi-trailers and large trucks, ensuring the safe and reliable delivery of goods to their ultimate destinations.
2. Construction Field: Tractors are vital for towing a wide array of construction machinery, including excavators, bulldozers, and cranes. They facilitate the effortless transport of heavy equipment to job sites, enhancing project efficiency.

Basic Info.

30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck



30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck


30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck

30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
Basic Information
Driving license: A1,A2,B2 Announcement Model: BJ3319Y6GRL-01
Drive type: 8X4 Wheelbase: 2100+2300+1400mm
engine: Foton DaimlerX12NS6B410 Gearbox: Fast 12JSD240A
Rear axle ratio: 5.92 Body length: 8.76 m
Body width: 2.55 m Ride height: 3.65 m
Front track: 2020/2020mm Rear track: 1880/1880mm
Vehicle weight: 15.5 tons Rated load: 15.37 tons
Total mass: 31 tons Tonnage level: Heavy Truck
Approach Angle: 18 degrees Departure angle: 16 degrees
Origin: Beijing Huairou Market Segments: Urban construction waste
Department: 9 Series Version: Basic
Fuel Type: diesel fuel
Engine parameters
Engine Model: Foton Daimler engineX12NS6B410 Engine Brand: Foton Daimler
Number of cylinders: 6 cylinders Fuel Type: diesel fuel
Displacement: 11.8L Emission standards: National VI
Maximum horsepower: 410 hp Maximum output power: 301kW
Maximum Torque: 2100Nm Maximum torque speed: 1000-1300rpm
Rated speed: 1900rpm
Cargo box parameters
Length of cargo box: 5.6 m Cargo box width: 2.35 m
Cargo box height: 1.5 m Cargo box form: Rear dump type
Cab parameters
Cab width: 2490mm
Gearbox parameters
Gearbox Model: Fast 12JSD240A Gearbox brand: Fast
Forward gears: 12 gears Reverse gear number: 2
tank
Fuel tank material: Aluminum Alloy Fuel tank capacity: 300L

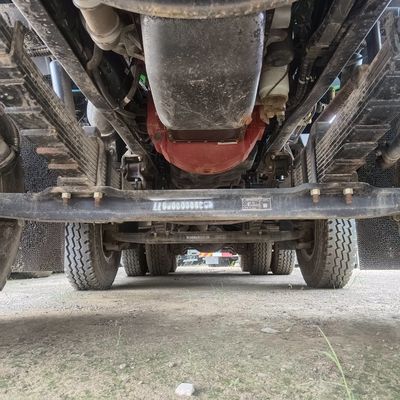

Chassis parameters
Front axle description: 7.5T Permissible load on front axle: 6500/6500kg
Rear Axle Description: 16T Mercedes Benz Permissible load on rear axle: 18000(two-axle group)kg
Speed €atio: 5.92 Number of springs: 2010/10/12
tire
Tire specifications: 12.00R20 18PR Number of tires: 12
30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck


Shipment

We specialize in shipping trucks primarily via RO-RO vessels or bulk vessels, ensuring both safety and efficiency. Additionally, we offer shipping through special containers, catering to a diverse range of logistical needs with utmost convenience and simplicity.
30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck


Original Spare Parts
We are committed to delivering genuine spare parts, complemented by a comprehensive and unparalleled after-sales service system. Our dedicated After-Market Division ensures exceptional service and prompt delivery of parts through an efficient and streamlined supply chain.
30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck

Our Product
30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck

Thank You for Choosing Us

Q: How about the delivery time?
A: We take pride in the availability of most of our trucks and machines, which allows for delivery within an impressively swift 7 days. For custom-ordered items, our meticulous production process generally requires about 30 days, ensuring quality and excellence are never compromised.

Q: How many units of truck do you produce per year?
A: Demonstrating our robust manufacturing capabilities, we produce nearly 30,000 units annually. With approximately 5,000 units either updated or manufactured each month, we maintain a dynamic and efficient production schedule.

Q: How do you control the quality of the product?
A: Quality is our highest priority. Our factory is equipped with a state-of-the-art production workshop and a team of highly-trained workers. Every product undergoes a stringent inspection process to ensure top-notch quality. Additionally, we recondition our trucks and machines on a specialized production line to uphold superior standards.

Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we welcome custom orders to fulfill your unique requirements. Our minimum order quantity (MOQ) is merely 1 unit, underscoring our flexibility and commitment to customer satisfaction.
