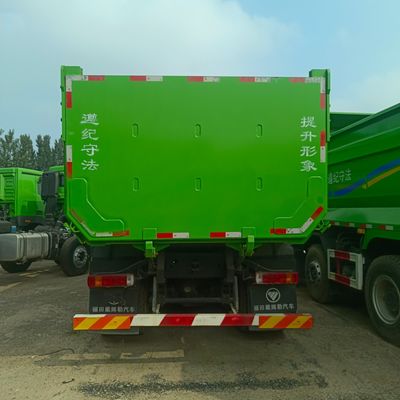

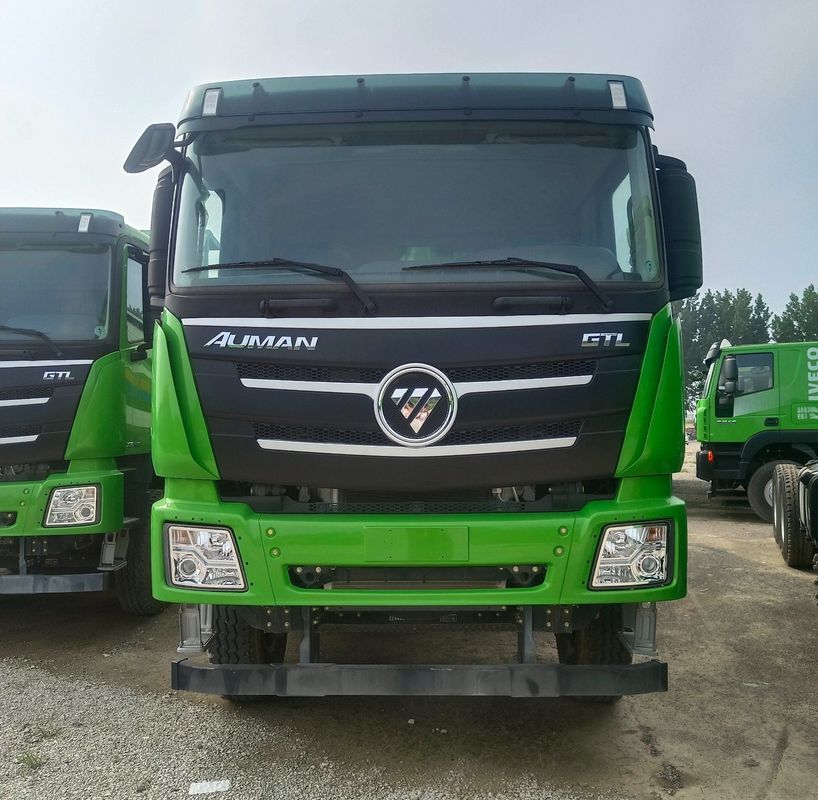

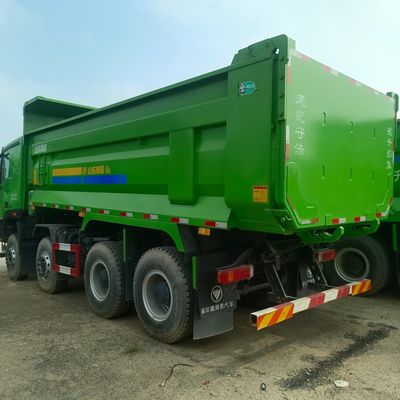

BJ3319Y6GRL-01 2024 Ouman 30 Ton 6X4 Dump Truck Customization Customized Request

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

BJ3319Y6GRL-01 2024 Ouman 30 Ton 6X4 Dump Truck Customization Customized Request

BJ3319Y6GRL-01 2024 Ouman 30 Ton 6X4 Dump Truck Customization Customized Request
BJ3319Y6GRL-01 2024 Ouman 30 Ton 6X4 Dump Truck Customization Customized Request BJ3319Y6GRL-01 2024 Ouman 30 Ton 6X4 Dump Truck Customization Customized Request BJ3319Y6GRL-01 2024 Ouman 30 Ton 6X4 Dump Truck Customization Customized Request BJ3319Y6GRL-01 2024 Ouman 30 Ton 6X4 Dump Truck Customization Customized Request BJ3319Y6GRL-01 2024 Ouman 30 Ton 6X4 Dump Truck Customization Customized Request BJ3319Y6GRL-01 2024 Ouman 30 Ton 6X4 Dump Truck Customization Customized Request

Large Image :  BJ3319Y6GRL-01 2024 Ouman 30 Ton 6X4 Dump Truck Customization Customized Request

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

BJ3319Y6GRL-01 2024 Ouman 30 Ton 6X4 Dump Truck Customization Customized Request

Description
Model NO.: BJ3319Y6GRL-01 Power: Diesel
Load Capacity: 31-40t Emission Standard: Euro 6
Drive Wheel: 8×4 Seats: ≤5
Horsepower: 351-450hp Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: New Usage: Towing Semi Trailer
Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 8.76x2.55x3.65 Trademark: Futian
Origin: China Liangshan HS Code: 87019090
Supply Ability: 1000pieces/Year Package Size: 876.00cm * 255.00cm * 365.00cm
Package Gross Weight: 15500.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck

Product Use

1. Definition of Tractor
A tractor is a marvel of versatility and power in the realm of light trucks, meticulously designed to tow vehicles and heavy loads with unparalleled precision on highways. Equipped with multiple pairs of wheels and axles, it stands as an indispensable resource for transporting a wide array of loads, including semi-trailers, luxury yachts, and construction equipment. As a linchpin in heavy transport, it plays an invaluable role across diverse industries.
2. The Structure of the Tractor
A tractor is an engineering masterpiece comprising vital components such as the engine, transmission, tires, and a robust frame. It may also be outfitted with auxiliary devices like tow hooks, locking systems, and remote controls, which substantially boost its efficiency and control, ensuring exceptional performance.
3. Tractor Application Fields
1. Transportation: In the realm of long-distance freight, tractors are absolutely essential for towing semi-trailers and large trucks, ensuring the safe and timely delivery of goods to their destined locations with utmost reliability.
2. Construction Field: Tractors serve as critical partners in towing an extensive variety of construction machinery, including excavators, bulldozers, and cranes, seamlessly facilitating the transport of massive equipment to construction sites.

Basic Info.

2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck



2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck


2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck

2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck
Basic Information
Driving license: A1,A2,B2 Announcement Model: BJ3319Y6GRL-01
Drive type: 8X4 Wheelbase: 2100+2300+1400mm
engine: Foton DaimlerX12NS6B410 Gearbox: Fast 12JSD240A
Rear axle ratio: 5.92 Body length: 8.76 m
Body width: 2.55 m Ride height: 3.65 m
Front track: 2020/2020mm Rear track: 1880/1880mm
Vehicle weight: 15.5 tons Rated load: 15.37 tons
Total mass: 31 tons Tonnage level: Heavy Truck
Approach Angle: 18 degrees Departure angle: 16 degrees
Origin: Beijing Huairou Market Segments: Urban construction waste
Department: 9 Series Version: Basic
Fuel Type: diesel fuel
Engine parameters
Engine Model: Foton Daimler engineX12NS6B410 Engine Brand: Foton Daimler
Number of cylinders: 6 cylinders Fuel Type: diesel fuel
Displacement: 11.8L Emission standards: National VI
Maximum horsepower: 410 hp Maximum output power: 301kW
Maximum Torque: 2100Nm Maximum torque speed: 1000-1300rpm
Rated speed: 1900rpm
Cargo box parameters
Length of cargo box: 5.6 m Cargo box width: 2.35 m
Cargo box height: 1.5 m Cargo box form: Rear dump type
Cab parameters
Cab width: 2490mm
Gearbox parameters
Gearbox Model: Fast 12JSD240A Gearbox brand: Fast
Forward gears: 12 gears Reverse gear number: 2
tank
Fuel tank material: Aluminum Alloy Fuel tank capacity: 300L
Chassis parameters
Front axle description: 7.5T Permissible load on front axle: 6500/6500kg
Rear Axle Description: 16T Mercedes Benz Permissible load on rear axle: 18000(two-axle group)kg
Speed €atio: 5.92 Number of springs: 2010/10/12
tire
Tire specifications: 12.00R20 18PR Number of tires: 12
2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck


Shipment

We are leaders in shipping trucks, predominantly utilizing RO-RO vessels or bulk vessels to guarantee safety and efficiency. Additionally, we provide shipping through special containers, catering to a diverse spectrum of logistical requirements with ultimate ease and efficiency.
2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck


Original Spare Parts
We are committed to delivering genuine spare parts complemented by a comprehensive and unparalleled after-sales service system. Our dedicated After-Market Division ensures exceptional service and rapid delivery of parts via an efficient and streamlined supply chain.
2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck

Our Product
2024, 30 Ton Ouman 6X4, 8X4 Dump Truck, 12 Wheel Dump Truck

Thank You for Choosing Us

Q: How about the delivery time?
A: We take pride in the prompt availability of the majority of our trucks and machinery, which can be delivered within an impressively short span of 7 days. For items that are custom ordered, our thorough production process typically takes around 30 days, ensuring that quality and excellence are never sacrificed.

Q: How many units of truck do you produce per year?
A: Demonstrating our formidable manufacturing capabilities, we produce nearly 30,000 units annually. With around 5,000 units being updated or manufactured each month, we maintain a dynamic and efficient production schedule.

Q: How do you control the quality of the product?
A: Quality is our utmost priority. Our factory boasts a standard production workshop and a team of highly-trained workers. Each product undergoes a stringent inspection process to ensure superior quality. Additionally, we recondition our trucks and machinery on a specialized production line to uphold high standards.

Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we embrace custom orders to meet your unique needs. Our minimum order quantity (MOQ) is a mere 1 unit, underscoring our flexibility and commitment to customer satisfaction.
