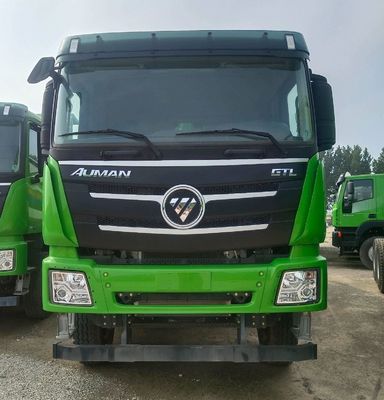

Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck with Hyva Front Lift Construction Vehicle

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck with Hyva Front Lift Construction Vehicle

Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck with Hyva Front Lift Construction Vehicle
Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck with Hyva Front Lift Construction Vehicle Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck with Hyva Front Lift Construction Vehicle Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck with Hyva Front Lift Construction Vehicle Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck with Hyva Front Lift Construction Vehicle Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck with Hyva Front Lift Construction Vehicle Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck with Hyva Front Lift Construction Vehicle

Large Image :  Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck with Hyva Front Lift Construction Vehicle

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck with Hyva Front Lift Construction Vehicle

Description
Model NO.: BJ3319Y6GRL-01 Power: Diesel
Load Capacity: 31-40t Emission Standard: Euro 6
Drive Wheel: 8×4 Seats: ≤5
Horsepower: 351-450hp Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: New Usage: Towing Semi Trailer
Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 8.76x2.55x3.65 Trademark: Futian
Origin: China Liangshan HS Code: 87019090
Supply Ability: 1000pieces/Year Package Size: 876.00cm * 255.00cm * 365.00cm
Package Gross Weight: 15500.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift

Product Use

1. Definition of Tractor
A tractor is a beacon of versatility and power, masterfully designed as a light truck capable of towing vehicles or heavy loads on highways. Equipped with several pairs of wheels and axles, it is indispensable for transporting semi-trailers, luxury yachts, and construction machinery. As a cornerstone of heavy transport logistics, its role is crucial to the success of various industries, offering unmatched reliability and stellar performance.
2. The Structure of the Tractor
A tractor is a marvel of engineering, composed of vital components such as the engine, transmission, tires, and frame. With additional devices like tow hooks, locking mechanisms, and remote controls, it ensures heightened operational efficiency and superior command, guaranteeing peak performance in every task.
3. Tractor Application Fields
1. Transportation: In long-distance freight, tractors play an essential role in towing semi-trailers and large trucks, ensuring the safe and reliable delivery of goods to their destinations with unwavering performance.
2. Construction Field: Tractors are critical in towing a variety of construction machinery like excavators, bulldozers, and cranes. They facilitate seamless transport of heavy equipment to job sites with precision, enhancing the efficiency of construction operations.

Basic Info.

China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift
China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift
China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift



China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift
China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift
China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift
China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift
China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift
China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift
China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front LiftChina Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift

China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift
China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift
China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front LiftChina Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front LiftChina Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front LiftChina Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift
Basic Information
Driving license: A1,A2,B2 Announcement Model: BJ3319Y6GRL-01
Drive type: 8X4 Wheelbase: 2100+2300+1400mm
engine: Foton DaimlerX12NS6B410 Gearbox: Fast 12JSD240A
Rear axle ratio: 5.92 Body length: 8.76 m
Body width: 2.55 m Ride height: 3.65 m
Front track: 2020/2020mm Rear track: 1880/1880mm
Vehicle weight: 15.5 tons Rated load: 15.37 tons
Total mass: 31 tons Tonnage level: Heavy Truck
Approach Angle: 18 degrees Departure angle: 16 degrees
Origin: Beijing Huairou Market Segments: Urban construction waste
Department: 9 Series Version: Basic
Fuel Type: diesel fuel
Engine parameters
Engine Model: Foton Daimler engineX12NS6B410 Engine Brand: Foton Daimler
Number of cylinders: 6 cylinders Fuel Type: diesel fuel
Displacement: 11.8L Emission standards: National VI
Maximum horsepower: 410 hp Maximum output power: 301kW
Maximum Torque: 2100Nm Maximum torque speed: 1000-1300rpm
Rated speed: 1900rpm
Cargo box parameters
Length of cargo box: 5.6 m Cargo box width: 2.35 m
Cargo box height: 1.5 m Cargo box form: Rear dump type
Cab parameters
Cab width: 2490mm
Gearbox parameters
Gearbox Model: Fast 12JSD240A Gearbox brand: Fast
Forward gears: 12 gears Reverse gear number: 2
tank
Fuel tank material: Aluminum Alloy Fuel tank capacity: 300L
Chassis parameters
Front axle description: 7.5T Permissible load on front axle: 6500/6500kg
Rear Axle Description: 16T Mercedes Benz Permissible load on rear axle: 18000(two-axle group)kg
Speed €atio: 5.92 Number of springs: 2010/10/12
tire
Tire specifications: 12.00R20 18PR Number of tires: 12
China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift


Shipment

Our shipping expertise is unrivaled, utilizing RO-RO vessels or bulk vessels for maximum safety and efficiency. We also offer shipping in special containers, adeptly meeting a wide range of logistical needs with ultimate convenience and ease.
China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift


Original Spare Parts
We are dedicated to providing genuine spare parts, supported by an outstanding after-sales service system. Our committed After-Market Division ensures exceptional service and swift delivery of parts through an efficient supply chain.
China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift

Our Product
China Foton Ouman 6X4 8X4 10/12 Wheel Dump Truck Dump Truck with Hyva Front Lift

Thank You for Choosing Us

Q: How about the delivery time?
A: We take pride in our rapid delivery, with most trucks and machines ready within just 7 days. For specially ordered items, our meticulous production process generally spans around 30 days, reflecting our commitment to quality and excellence.

Q: How many units of truck do you produce per year?
A: Our robust manufacturing capability is demonstrated by our annual production of about 30,000 units. We maintain a dynamic schedule, updating or manufacturing around 5,000 units each month.

Q: How do you control the quality of the product?
A: Quality is our top priority. Our factory features a state-of-the-art production workshop and a team of expertly trained workers. Every product undergoes thorough inspections, ensuring top-tier quality. We also recondition trucks and machines on specialized production lines to uphold superior standards.

Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we welcome custom orders to meet your specific requirements. Our minimum order quantity (MOQ) is just 1 unit, reflecting our flexibility and commitment to customer satisfaction.
