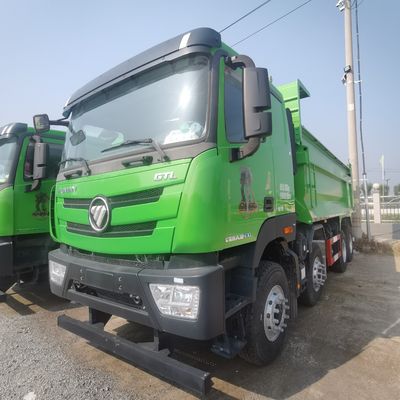

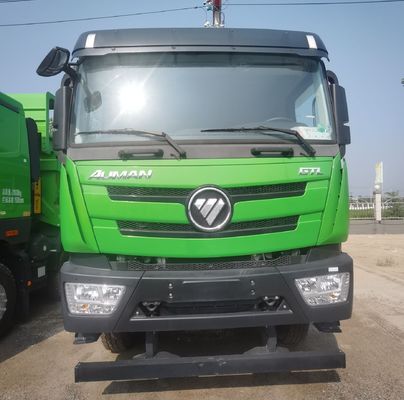

Manual Transmission Type Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

Manual Transmission Type Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity

Manual Transmission Type Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity
Manual Transmission Type Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity Manual Transmission Type Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity Manual Transmission Type Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity Manual Transmission Type Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity Manual Transmission Type Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity Manual Transmission Type Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity

Large Image :  Manual Transmission Type Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

Manual Transmission Type Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity

Description
Model NO.: BJ3319Y6GRL-01 Power: Diesel
Load Capacity: 31-40t Emission Standard: Euro 6
Drive Wheel: 8×4 Seats: ≤5
Horsepower: 351-450hp Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: New Usage: Towing Semi Trailer
Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 8.76x2.55x3.65 Trademark: Futian
Origin: China Liangshan HS Code: 87019090
Supply Ability: 1000pieces/Year Package Size: 876.00cm * 255.00cm * 365.00cm
Package Gross Weight: 15500.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity

Product Use

1. Definition of Tractor
A tractor is a powerhouse of versatility and strength, expertly engineered as a light truck to excel in the demanding role of towing vehicles or heavy cargo over expansive distances. Featuring multiple wheels and axles, it is instrumental in transporting semi-trailers, luxury yachts, and heavy-duty construction machinery. Essential to heavy transport logistics, tractors are vital across numerous industries, offering exceptional dependability and high performance.
2. The Structure of the Tractor
Comprising pivotal elements like a powerful engine, advanced transmission, resilient tires, and a robust frame, a tractor is an engineering marvel. It is further enhanced by features such as sturdy tow hooks, sophisticated locking mechanisms, and user-friendly remote controls, ensuring outstanding efficiency and precise handling, thus guaranteeing optimal performance in every task.
3. Tractor Application Fields
1. Transportation: In long-distance freight, tractors play a crucial role in towing semi-trailers and large trucks. They ensure goods are delivered safely and reliably to their destinations, consistently displaying unmatched performance.
2. Construction Field: Tractors are essential for towing construction equipment like excavators, bulldozers, and cranes. They facilitate seamless transport to job sites, significantly boosting construction efficiency.

Basic Info.

Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity
Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity
Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity



Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity
Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity
Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity
Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity
Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity
Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity


Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity
Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity
Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity
Basic Information
Driving license: A1,A2,B2 Announcement Model: BJ3319Y6GRL-01
Drive type: 8X4 Wheelbase: 2100+2300+1400mm
engine: Foton DaimlerX12NS6B410 Gearbox: Fast 12JSD240A
Rear axle ratio: 5.92 Body length: 8.76 m
Body width: 2.55 m Ride height: 3.65 m
Front track: 2020/2020mm Rear track: 1880/1880mm
Vehicle weight: 15.5 tons Rated load: 15.37 tons
Total mass: 31 tons Tonnage level: Heavy Truck
Approach Angle: 18 degrees Departure angle: 16 degrees
Origin: Beijing Huairou Market Segments: Urban construction waste
Department: 9 Series Version: Basic
Fuel Type: diesel fuel
Engine parameters
Engine Model: Foton Daimler engineX12NS6B410 Engine Brand: Foton Daimler
Number of cylinders: 6 cylinders Fuel Type: diesel fuel
Displacement: 11.8L Emission standards: National VI
Maximum horsepower: 410 hp Maximum output power: 301kW
Maximum Torque: 2100Nm Maximum torque speed: 1000-1300rpm
Rated speed: 1900rpm

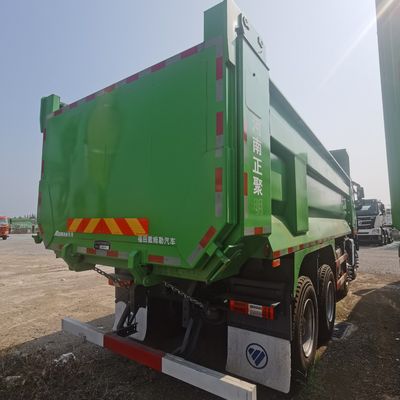

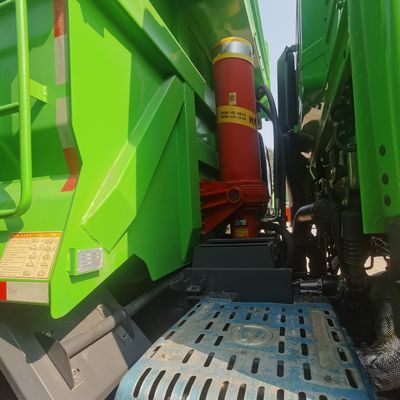

Cargo box parameters
Length of cargo box: 5.6 m Cargo box width: 2.35 m
Cargo box height: 1.5 m Cargo box form: Rear dump type

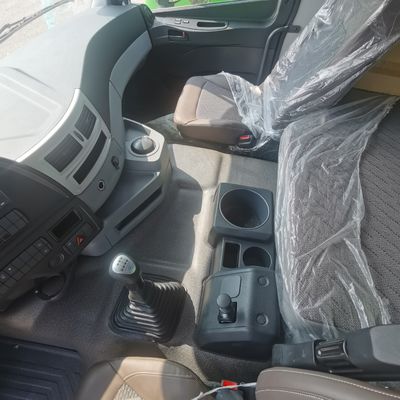

Cab parameters
Cab width: 2490mm
Gearbox parameters
Gearbox Model: Fast 12JSD240A Gearbox brand: Fast
Forward gears: 12 gears Reverse gear number: 2
tank
Fuel tank material: Aluminum Alloy Fuel tank capacity: 300L
Chassis parameters
Front axle description: 7.5T Permissible load on front axle: 6500/6500kg

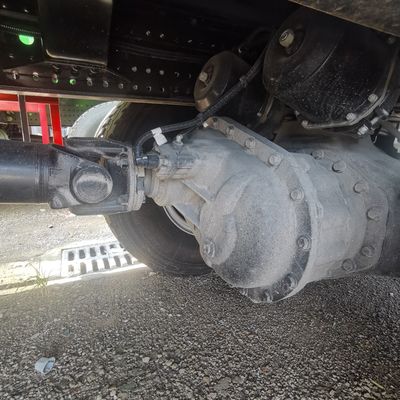

Rear Axle Description: 16T Mercedes Benz Permissible load on rear axle: 18000(two-axle group)kg
Speed €atio: 5.92 Number of springs: 2010/10/12
tire
Tire specifications: 12.00R20 18PR Number of tires: 12
Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity


Shipment

We excel in the sophisticated art of truck shipping, utilizing cutting-edge RO-RO and bulk vessels for maximum safety and efficiency. Our comprehensive container shipping services meticulously cater to diverse logistical demands with exceptional ease.
Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity


Original Spare Parts
Our unwavering commitment to authenticity is showcased in our genuine spare parts, backed by a stellar after-sales service system. Our dedicated After-Market Division ensures exemplary service and prompt parts delivery through an efficient supply chain.
Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity

Our Product
Used Dump Truck with Air Suspension and 400L Fuel Tank Capacity

Thank You for Choosing Us

Q: How about the delivery time?
A: We take pride in our rapid delivery capabilities, with most trucks and machinery prepared within just 7 days. Custom orders, adhering to a meticulous production process, are completed in 30 days, ensuring unmatched quality and excellence.

Q: How many units of truck do you produce per year?
A: Our impressive manufacturing capacity achieves an annual production of around 30,000 units, with approximately 5,000 units updated or produced monthly, maintaining a dynamic and highly efficient operational schedule.

Q: How do you control the quality of the product?
A: Quality is paramount. Our facility boasts a state-of-the-art production workshop manned by expertly trained professionals. Every product undergoes rigorous inspection to ensure superior quality. We also refurbish trucks and machinery on specialized production lines to uphold exceptional standards.

Q: Do you accept custom orders? What is your MOQ?
A: Certainly, we eagerly embrace custom orders to meet your unique needs. Our minimum order quantity (MOQ) is just 1 unit, reflecting our flexibility and unwavering dedication to customer satisfaction.
