Foton Dump Hauler for Heavy Duty Engine Capacity>8L Package Gross Weight 15500.000kg

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

Foton Dump Hauler for Heavy Duty Engine Capacity>8L Package Gross Weight 15500.000kg

Foton Dump Hauler for Heavy Duty Engine Capacity>8L Package Gross Weight 15500.000kg
Foton Dump Hauler for Heavy Duty Engine Capacity>8L Package Gross Weight 15500.000kg Foton Dump Hauler for Heavy Duty Engine Capacity>8L Package Gross Weight 15500.000kg Foton Dump Hauler for Heavy Duty Engine Capacity>8L Package Gross Weight 15500.000kg Foton Dump Hauler for Heavy Duty Engine Capacity>8L Package Gross Weight 15500.000kg Foton Dump Hauler for Heavy Duty Engine Capacity>8L Package Gross Weight 15500.000kg Foton Dump Hauler for Heavy Duty Engine Capacity>8L Package Gross Weight 15500.000kg

Large Image :  Foton Dump Hauler for Heavy Duty Engine Capacity>8L Package Gross Weight 15500.000kg

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

Foton Dump Hauler for Heavy Duty Engine Capacity>8L Package Gross Weight 15500.000kg

Description
Model NO.: BJ3319Y6GRL-01 Power: Diesel
Load Capacity: 31-40t Emission Standard: Euro 6
Drive Wheel: 8×4 Seats: ≤5
Horsepower: 351-450hp Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: New Usage: Towing Semi Trailer
Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 8.76x2.55x3.65 Trademark: Futian
Origin: China Liangshan HS Code: 87019090
Supply Ability: 1000pieces/Year Package Size: 876.00cm * 255.00cm * 365.00cm
Package Gross Weight: 15500.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension

Product Use

1. Definition of Tractor
A tractor is the epitome of robust versatility and unmatched power, artfully engineered as a light truck for the demanding task of towing vehicles or heavy loads over expansive highways. With a sophisticated assembly of multiple wheels and axles, it plays an integral role in transporting semi-trailers, opulent yachts, and hefty construction equipment. This essential component of heavy transport logistics is vital to myriad industries, offering impressive reliability and superior performance.
2. The Structure of the Tractor
Crafted from essential elements like a potent engine, advanced transmission system, resilient tires, and a solid frame, a tractor stands as a testament to engineering brilliance. Its additional features, such as enduring tow hooks, cutting-edge locking systems, and user-friendly remote controls, streamline its operational efficiency and precision, ensuring peak performance in every endeavor.
3. Tractor Application Fields
1. Transportation: Within the sphere of long-distance freight, tractors are indispensable for towing semi-trailers and large trucks, ensuring the flawless and dependable delivery of goods to their destinations with steadfast performance.
2. Construction Field: Tractors are pivotal in towing diverse construction machinery, such as excavators, bulldozers, and cranes, facilitating the effortless movement of heavy equipment to construction sites and significantly bolstering the efficiency of construction operations.

Basic Info.

Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension
Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension
Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension



Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension
Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension
Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension
Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension
Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension
Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension


Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension
Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension
Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension
Basic Information
Driving license: A1,A2,B2 Announcement Model: BJ3319Y6GRL-01
Drive type: 8X4 Wheelbase: 2100+2300+1400mm
engine: Foton DaimlerX12NS6B410 Gearbox: Fast 12JSD240A
Rear axle ratio: 5.92 Body length: 8.76 m
Body width: 2.55 m Ride height: 3.65 m
Front track: 2020/2020mm Rear track: 1880/1880mm
Vehicle weight: 15.5 tons Rated load: 15.37 tons
Total mass: 31 tons Tonnage level: Heavy Truck
Approach Angle: 18 degrees Departure angle: 16 degrees
Origin: Beijing Huairou Market Segments: Urban construction waste
Department: 9 Series Version: Basic
Fuel Type: diesel fuel
Engine parameters
Engine Model: Foton Daimler engineX12NS6B410 Engine Brand: Foton Daimler
Number of cylinders: 6 cylinders Fuel Type: diesel fuel
Displacement: 11.8L Emission standards: National VI
Maximum horsepower: 410 hp Maximum output power: 301kW
Maximum Torque: 2100Nm Maximum torque speed: 1000-1300rpm
Rated speed: 1900rpm
Cargo box parameters
Length of cargo box: 5.6 m Cargo box width: 2.35 m
Cargo box height: 1.5 m Cargo box form: Rear dump type

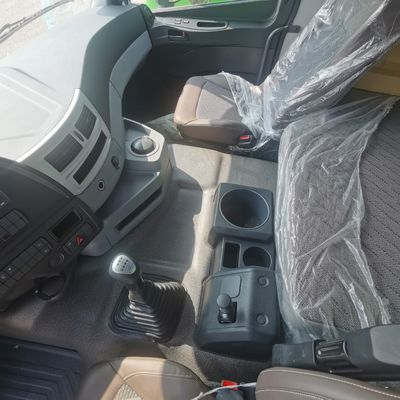

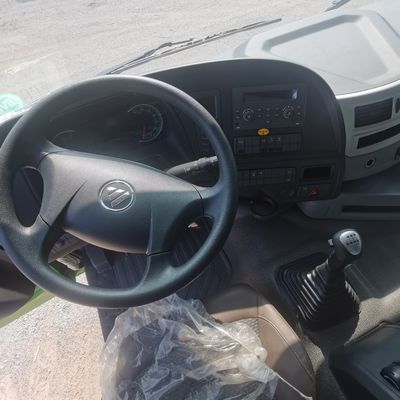

Cab parameters
Cab width: 2490mm
Gearbox parameters
Gearbox Model: Fast 12JSD240A Gearbox brand: Fast
Forward gears: 12 gears Reverse gear number: 2
tank
Fuel tank material: Aluminum Alloy Fuel tank capacity: 300L
Chassis parameters
Front axle description: 7.5T Permissible load on front axle: 6500/6500kg
Rear Axle Description: 16T Mercedes Benz Permissible load on rear axle: 18000(two-axle group)kg
Speed €atio: 5.92 Number of springs: 2010/10/12
tire
Tire specifications: 12.00R20 18PR Number of tires: 12
Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension


Shipment

Our mastery in the realm of truck shipping is unmatched, utilizing cutting-edge RO-RO vessels or bulk vessels to guarantee supreme safety and efficiency. We also provide specialized container shipping, meticulously catering to a wide array of logistical needs with absolute convenience.
Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension


Original Spare Parts
Our dedication lies in offering genuine spare parts, backed by an exceptional after-sales service system. Our devoted After-Market Division ensures remarkable service and swift parts delivery through an exceptionally efficient supply chain.
Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension

Our Product
Foton Dump Hauler, Heavy Duty Used Dump Truck with Air Suspension

Thank You for Choosing Us

Q: How about the delivery time?
A: We are proud of our rapid delivery capabilities, with most trucks and machinery ready within a brief 7 days. For bespoke orders, our precise production process typically takes up to 30 days, ensuring unmatched quality and excellence.

Q: How many units of truck do you produce per year?
A: Our impressive manufacturing capacity is demonstrated by our annual production of approximately 30,000 units, with around 5,000 units updated or produced monthly, maintaining a vibrant and highly efficient schedule.

Q: How do you control the quality of the product?
A: Quality is our paramount concern. Our facility boasts a state-of-the-art production workshop staffed by highly trained professionals. Each product undergoes meticulous inspection to ensure premier quality. We also refurbish trucks and machinery on specialized production lines to maintain superior standards.

Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we wholeheartedly embrace custom orders tailored to your unique needs. Our minimum order quantity (MOQ) is merely 1 unit, underscoring our flexibility and unwavering dedication to customer satisfaction.
