Air Suspension Dump Truck for Tough Jobs 31-40t Load Capacity and Efficiency Combined

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

Air Suspension Dump Truck for Tough Jobs 31-40t Load Capacity and Efficiency Combined

Air Suspension Dump Truck for Tough Jobs 31-40t Load Capacity and Efficiency Combined
Air Suspension Dump Truck for Tough Jobs 31-40t Load Capacity and Efficiency Combined Air Suspension Dump Truck for Tough Jobs 31-40t Load Capacity and Efficiency Combined Air Suspension Dump Truck for Tough Jobs 31-40t Load Capacity and Efficiency Combined Air Suspension Dump Truck for Tough Jobs 31-40t Load Capacity and Efficiency Combined Air Suspension Dump Truck for Tough Jobs 31-40t Load Capacity and Efficiency Combined Air Suspension Dump Truck for Tough Jobs 31-40t Load Capacity and Efficiency Combined

Large Image :  Air Suspension Dump Truck for Tough Jobs 31-40t Load Capacity and Efficiency Combined

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

Air Suspension Dump Truck for Tough Jobs 31-40t Load Capacity and Efficiency Combined

Description
Model NO.: BJ3319Y6GRL-01 Power: Diesel
Load Capacity: 31-40t Emission Standard: Euro 6
Drive Wheel: 8×4 Seats: ≤5
Horsepower: 351-450hp Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: New Usage: Towing Semi Trailer
Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 8.76x2.55x3.65 Trademark: Futian
Origin: China Liangshan HS Code: 87019090
Supply Ability: 1000pieces/Year Package Size: 876.00cm * 255.00cm * 365.00cm
Package Gross Weight: 15500.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Air Suspension Dump Foton Used Dump Truck for Tough Jobs

Product Use

1. Definition of Tractor
A tractor, the epitome of robust versatility and unmatched power, is a masterfully engineered light truck born for the difficult mission of towing vehicles or heavy loads across extensive highways. Equipped with an impressive range of wheels and axles, it plays a pivotal role in the transportation of semi-trailers, luxury yachts, and substantial construction equipment. As a cornerstone of heavy transport logistics, the tractor is essential to numerous industries, consistently delivering outstanding reliability and superior performance.
2. The Structure of the Tractor
Engineered from vital components such as a powerful engine, advanced transmission system, long-lasting tires, and a robust frame, a tractor is a testament to innovative engineering. Further enhanced with features like strong tow hooks, cutting-edge locking systems, and user-friendly remote controls, it ensures impressive operational efficiency and precision, guaranteeing peak performance in every task.
3. Tractor Application Fields
1. Transportation: In the domain of long-haul freight, tractors are essential for towing semi-trailers and large trucks, ensuring the secure and reliable delivery of goods to their destinations with steadfast performance.
2. Construction Field: Tractors act as essential tools in towing various construction machinery, such as excavators, bulldozers, and cranes, facilitating the efficient transport of heavy equipment to job sites and significantly boosting construction operations' productivity.

Basic Info.

Air Suspension Dump Foton Used Dump Truck for Tough Jobs
Air Suspension Dump Foton Used Dump Truck for Tough Jobs
Air Suspension Dump Foton Used Dump Truck for Tough Jobs



Air Suspension Dump Foton Used Dump Truck for Tough Jobs
Air Suspension Dump Foton Used Dump Truck for Tough Jobs
Air Suspension Dump Foton Used Dump Truck for Tough Jobs
Air Suspension Dump Foton Used Dump Truck for Tough Jobs
Air Suspension Dump Foton Used Dump Truck for Tough Jobs
Air Suspension Dump Foton Used Dump Truck for Tough Jobs


Air Suspension Dump Foton Used Dump Truck for Tough Jobs
Air Suspension Dump Foton Used Dump Truck for Tough Jobs
Air Suspension Dump Foton Used Dump Truck for Tough Jobs
Basic Information
Driving license: A1,A2,B2 Announcement Model: BJ3319Y6GRL-01
Drive type: 8X4 Wheelbase: 2100+2300+1400mm
engine: Foton DaimlerX12NS6B410 Gearbox: Fast 12JSD240A
Rear axle ratio: 5.92 Body length: 8.76 m
Body width: 2.55 m Ride height: 3.65 m
Front track: 2020/2020mm Rear track: 1880/1880mm
Vehicle weight: 15.5 tons Rated load: 15.37 tons
Total mass: 31 tons Tonnage level: Heavy Truck
Approach Angle: 18 degrees Departure angle: 16 degrees
Origin: Beijing Huairou Market Segments: Urban construction waste
Department: 9 Series Version: Basic
Fuel Type: diesel fuel

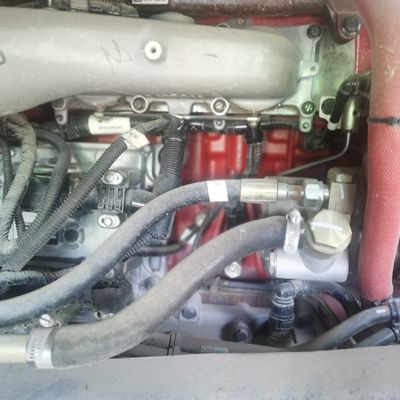

Engine parameters
Engine Model: Foton Daimler engineX12NS6B410 Engine Brand: Foton Daimler
Number of cylinders: 6 cylinders Fuel Type: diesel fuel
Displacement: 11.8L Emission standards: National VI
Maximum horsepower: 410 hp Maximum output power: 301kW
Maximum Torque: 2100Nm Maximum torque speed: 1000-1300rpm
Rated speed: 1900rpm

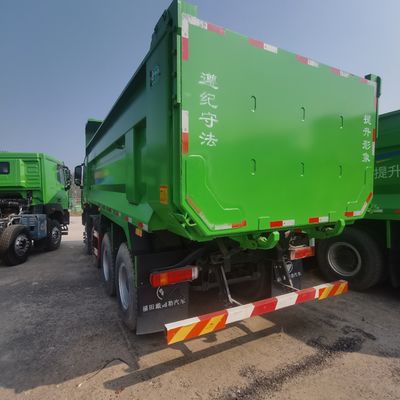

Cargo box parameters
Length of cargo box: 5.6 m Cargo box width: 2.35 m
Cargo box height: 1.5 m Cargo box form: Rear dump type
Cab parameters
Cab width: 2490mm
Gearbox parameters
Gearbox Model: Fast 12JSD240A Gearbox brand: Fast
Forward gears: 12 gears Reverse gear number: 2
tank
Fuel tank material: Aluminum Alloy Fuel tank capacity: 300L

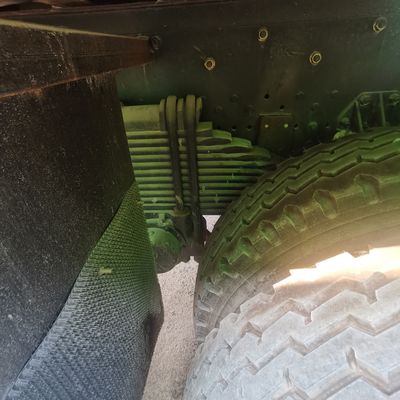

Chassis parameters
Front axle description: 7.5T Permissible load on front axle: 6500/6500kg
Rear Axle Description: 16T Mercedes Benz Permissible load on rear axle: 18000(two-axle group)kg
Speed €atio: 5.92 Number of springs: 2010/10/12
tire
Tire specifications: 12.00R20 18PR Number of tires: 12
Air Suspension Dump Foton Used Dump Truck for Tough Jobs


Shipment

Our unmatched expertise in the intricate art of truck shipping utilizes state-of-the-art RO-RO vessels or bulk carriers to ensure maximum safety and efficiency. Additionally, we provide specialized container shipping, carefully satisfying a wide array of logistical needs with the highest level of convenience.
Air Suspension Dump Foton Used Dump Truck for Tough Jobs


Original Spare Parts
We are committed to delivering genuine spare parts, backed by an exceptional after-sales service system. Our dedicated After-Market Division guarantees excellent service and prompt parts delivery through an exceptionally efficient supply chain.
Air Suspension Dump Foton Used Dump Truck for Tough Jobs

Our Product
Air Suspension Dump Foton Used Dump Truck for Tough Jobs

Thank You for Choosing Us

Q: How about the delivery time?
A: We pride ourselves on rapid delivery capabilities, with most trucks and machinery ready in just 7 days. For custom orders, our thorough production process typically takes up to 30 days, ensuring unmatched quality and excellence.

Q: How many units of truck do you produce per year?
A: Our impressive manufacturing capabilities are demonstrated by our annual production capacity of approximately 30,000 units, with an estimated 5,000 units updated or manufactured monthly, maintaining a highly dynamic and efficient schedule.

Q: How do you control the quality of the product?
A: Quality is our top priority. Our facility boasts a state-of-the-art production workshop staffed by highly skilled professionals. Each product undergoes rigorous inspection to ensure top-notch quality. We also recondition trucks and machinery on specialized production lines to maintain superior standards.

Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we warmly welcome custom orders to meet your specific needs. Our minimum order quantity (MOQ) is just 1 unit, highlighting our flexibility and steadfast commitment to customer satisfaction.
