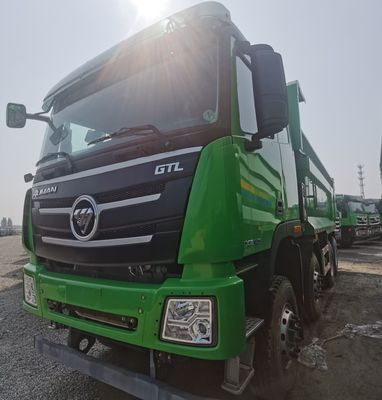

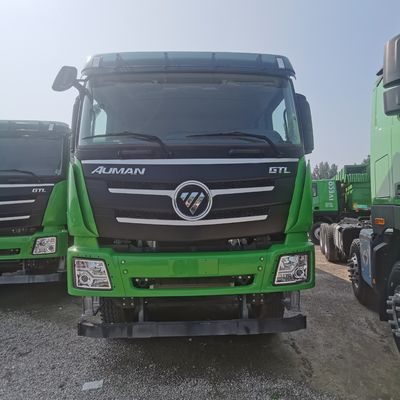

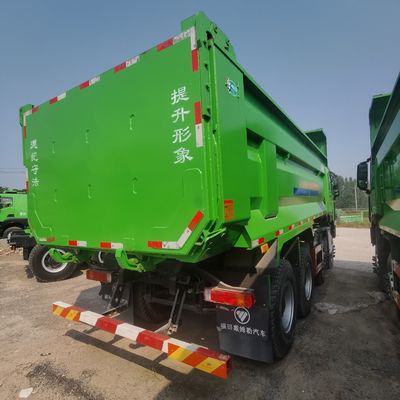

Towing Semi Trailer Foton Used Dump Truck with Air Suspension and Heavy Duty Build

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

Towing Semi Trailer Foton Used Dump Truck with Air Suspension and Heavy Duty Build

Towing Semi Trailer Foton Used Dump Truck with Air Suspension and Heavy Duty Build
Towing Semi Trailer Foton Used Dump Truck with Air Suspension and Heavy Duty Build Towing Semi Trailer Foton Used Dump Truck with Air Suspension and Heavy Duty Build Towing Semi Trailer Foton Used Dump Truck with Air Suspension and Heavy Duty Build Towing Semi Trailer Foton Used Dump Truck with Air Suspension and Heavy Duty Build Towing Semi Trailer Foton Used Dump Truck with Air Suspension and Heavy Duty Build Towing Semi Trailer Foton Used Dump Truck with Air Suspension and Heavy Duty Build

Large Image :  Towing Semi Trailer Foton Used Dump Truck with Air Suspension and Heavy Duty Build

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

Towing Semi Trailer Foton Used Dump Truck with Air Suspension and Heavy Duty Build

Description
Model NO.: BJ3319Y6GRL-01 Power: Diesel
Load Capacity: 31-40t Emission Standard: Euro 6
Drive Wheel: 8×4 Seats: ≤5
Horsepower: 351-450hp Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: New Usage: Towing Semi Trailer
Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 8.76x2.55x3.65 Trademark: Futian
Origin: China Liangshan HS Code: 87019090
Supply Ability: 1000pieces/Year Package Size: 876.00cm * 255.00cm * 365.00cm
Package Gross Weight: 15500.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Foton Used Dump Truck with Air Suspension and Heavy Duty Build

Product Use

1. Definition of Tractor
A tractor epitomizes robust versatility and extraordinary power. This meticulously engineered light truck is designed for the formidable task of towing vehicles or heavy loads across expansive highways. Equipped with an array of multiple wheels and axles, it is vital in transporting semi-trailers, luxury yachts, and hefty construction equipment. As a cornerstone of heavy transport logistics, the tractor is essential to numerous industries, delivering remarkable reliability and exceptional performance.
2. The Structure of the Tractor
A tractor is a masterpiece of engineering, comprised of critical components like a powerful engine, sophisticated transmission system, durable tires, and a sturdy frame. Enhanced with auxiliary features such as robust tow hooks, advanced locking systems, and intuitive remote controls, it ensures superior operational efficiency and precision control, guaranteeing optimal performance in every task it undertakes.
3. Tractor Application Fields
1. Transportation: In the realm of long-distance freight, tractors are indispensable for towing semi-trailers and large trucks, ensuring the safe and reliable delivery of goods to their intended destinations. Their unwavering performance makes them a cornerstone of transportation logistics.
2. Construction Field: Tractors are vital in towing various construction machinery, including excavators, bulldozers, and cranes. They enable the seamless transportation of heavy equipment to job sites, significantly enhancing the efficiency of construction operations.

Basic Info.

Foton Used Dump Truck with Air Suspension and Heavy Duty Build
Foton Used Dump Truck with Air Suspension and Heavy Duty Build
Foton Used Dump Truck with Air Suspension and Heavy Duty Build



Foton Used Dump Truck with Air Suspension and Heavy Duty Build
Foton Used Dump Truck with Air Suspension and Heavy Duty Build
Foton Used Dump Truck with Air Suspension and Heavy Duty Build
Foton Used Dump Truck with Air Suspension and Heavy Duty Build
Foton Used Dump Truck with Air Suspension and Heavy Duty Build
Foton Used Dump Truck with Air Suspension and Heavy Duty Build


Foton Used Dump Truck with Air Suspension and Heavy Duty Build
Foton Used Dump Truck with Air Suspension and Heavy Duty Build
Foton Used Dump Truck with Air Suspension and Heavy Duty Build
Basic Information
Driving license: A1,A2,B2 Announcement Model: BJ3319Y6GRL-01
Drive type: 8X4 Wheelbase: 2100+2300+1400mm
engine: Foton DaimlerX12NS6B410 Gearbox: Fast 12JSD240A
Rear axle ratio: 5.92 Body length: 8.76 m
Body width: 2.55 m Ride height: 3.65 m
Front track: 2020/2020mm Rear track: 1880/1880mm
Vehicle weight: 15.5 tons Rated load: 15.37 tons
Total mass: 31 tons Tonnage level: Heavy Truck
Approach Angle: 18 degrees Departure angle: 16 degrees
Origin: Beijing Huairou Market Segments: Urban construction waste
Department: 9 Series Version: Basic
Fuel Type: diesel fuel

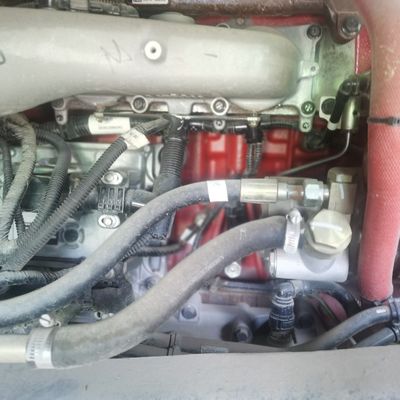

Engine parameters
Engine Model: Foton Daimler engineX12NS6B410 Engine Brand: Foton Daimler
Number of cylinders: 6 cylinders Fuel Type: diesel fuel
Displacement: 11.8L Emission standards: National VI
Maximum horsepower: 410 hp Maximum output power: 301kW
Maximum Torque: 2100Nm Maximum torque speed: 1000-1300rpm
Rated speed: 1900rpm

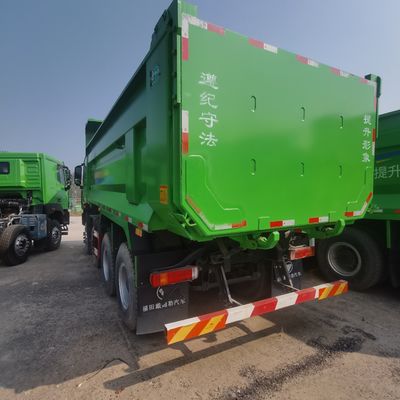

Cargo box parameters
Length of cargo box: 5.6 m Cargo box width: 2.35 m
Cargo box height: 1.5 m Cargo box form: Rear dump type

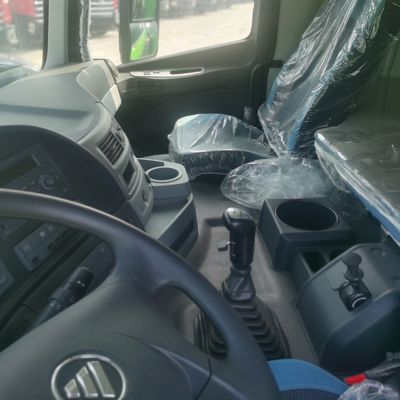

Cab parameters
Cab width: 2490mm
Gearbox parameters
Gearbox Model: Fast 12JSD240A Gearbox brand: Fast
Forward gears: 12 gears Reverse gear number: 2
tank
Fuel tank material: Aluminum Alloy Fuel tank capacity: 300L
Chassis parameters
Front axle description: 7.5T Permissible load on front axle: 6500/6500kg
Rear Axle Description: 16T Mercedes Benz Permissible load on rear axle: 18000(two-axle group)kg
Speed €atio: 5.92 Number of springs: 2010/10/12
tire
Tire specifications: 12.00R20 18PR Number of tires: 12
Foton Used Dump Truck with Air Suspension and Heavy Duty Build


Shipment

Our expertise in truck shipping is unparalleled. We employ state-of-the-art RO-RO vessels or bulk vessels to ensure optimal safety and efficiency. Additionally, we offer specialized container shipping, meticulously meeting a broad spectrum of logistical requirements with utmost convenience.
Foton Used Dump Truck with Air Suspension and Heavy Duty Build


Original Spare Parts
We are dedicated to providing authentic spare parts, bolstered by an exemplary after-sales service system. Our committed After-Market Division ensures outstanding service and rapid parts delivery through a highly efficient supply chain.
Foton Used Dump Truck with Air Suspension and Heavy Duty Build

Our Product
Foton Used Dump Truck with Air Suspension and Heavy Duty Build

Thank You for Choosing Us

Q: How about the delivery time?
A: We take pride in our swift delivery capabilities, with the majority of trucks and machinery ready within just 7 days. For custom orders, our meticulous production process extends to 30 days, ensuring unparalleled quality and excellence.

Q: How many units of truck do you produce per year?
A: Our formidable manufacturing prowess is evident in our annual production capacity of approximately 30,000 units. With an estimated 5,000 units updated or manufactured monthly, we maintain a dynamic and highly efficient schedule.

Q: How do you control the quality of the product?
A: Quality is our paramount priority. Our facility boasts a cutting-edge production workshop staffed by expertly trained professionals. Each product undergoes thorough inspection to ensure top-tier quality. We also recondition trucks and machinery on specialized production lines to uphold superior standards.

Q: Do you accept custom orders? What is your MOQ?
A: Absolutely, we enthusiastically welcome custom orders to fulfill your unique requirements. Our minimum order quantity (MOQ) is just 1 unit, showcasing our adaptability and unwavering commitment to customer satisfaction.
