BJ3319Y6GRL-01 Daimler Foton Tipper Used Dump Truck for Construction Projects Guaranteed

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

BJ3319Y6GRL-01 Daimler Foton Tipper Used Dump Truck for Construction Projects Guaranteed

BJ3319Y6GRL-01 Daimler Foton Tipper Used Dump Truck for Construction Projects Guaranteed
BJ3319Y6GRL-01 Daimler Foton Tipper Used Dump Truck for Construction Projects Guaranteed BJ3319Y6GRL-01 Daimler Foton Tipper Used Dump Truck for Construction Projects Guaranteed BJ3319Y6GRL-01 Daimler Foton Tipper Used Dump Truck for Construction Projects Guaranteed BJ3319Y6GRL-01 Daimler Foton Tipper Used Dump Truck for Construction Projects Guaranteed BJ3319Y6GRL-01 Daimler Foton Tipper Used Dump Truck for Construction Projects Guaranteed BJ3319Y6GRL-01 Daimler Foton Tipper Used Dump Truck for Construction Projects Guaranteed

Large Image :  BJ3319Y6GRL-01 Daimler Foton Tipper Used Dump Truck for Construction Projects Guaranteed

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

BJ3319Y6GRL-01 Daimler Foton Tipper Used Dump Truck for Construction Projects Guaranteed

Description
Model NO.: BJ3319Y6GRL-01 Power: Diesel
Load Capacity: 31-40t Emission Standard: Euro 6
Drive Wheel: 8×4 Seats: ≤5
Horsepower: 351-450hp Engine Capacity: >8L
Tire Certification: ECE, GCC, ISO, DOT Tire Design: Tubeless
Condition: New Usage: Towing Semi Trailer
Fuel Tank: 400L, 600L, 1000L Driver Seat: Air Suspension Seat
Color: Customized Cargo Box Material: Carbon Steel
Steering System: Hydraulic Steering With Power Assistance Transport Package: Nude Packing
Specification: 8.76x2.55x3.65 Trademark: Futian
Origin: China Liangshan HS Code: 87019090
Supply Ability: 1000pieces/Year Package Size: 876.00cm * 255.00cm * 365.00cm
Package Gross Weight: 15500.000kg After-sales Service: 6 Months
Warranty: 6 Months Transmission Type: Manual
Customization: Available | Customized Request Shipping Cost : About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Daimler Foton Tipper Used Dump Truck for Construction Projects

Product Use

1. Definition of Tractor
A tractor, the epitome of extraordinary versatility and unrivaled power, is a precision-engineered light truck that excels in the demanding task of towing vehicles or hefty loads across expansive networks of highways. Featuring a sophisticated configuration of multiple wheels and axles, it plays a pivotal role in the transportation of semi-trailers, opulent yachts, and massive construction equipment. As a cornerstone of heavy transport logistics, the tractor is indispensable across various industries, delivering exceptional reliability and unparalleled performance.
2. The Structure of the Tractor
Crafted with pivotal components such as a robust engine, an advanced transmission system, enduring tires, and a resilient frame, the tractor stands as a marvel of engineering brilliance. Augmented with auxiliary elements like sturdy tow hooks, cutting-edge locking systems, and intuitive remote controls, it guarantees outstanding operational efficacy and precision control, ensuring optimal performance in every task it undertakes.
3. Tractor Application Fields
1. Transportation: In the domain of long-distance freight, tractors are indispensable for towing semi-trailers and large trucks, guaranteeing the secure and dependable delivery of goods to their intended destinations with unfaltering performance.
2. Construction Field: Tractors are crucial instruments in towing various construction machinery, including excavators, bulldozers, and cranes, facilitating the effortless transportation of heavy equipment to job sites and significantly boosting the efficiency of construction operations.

Basic Info.

Daimler Foton Tipper Used Dump Truck for Construction Projects
Daimler Foton Tipper Used Dump Truck for Construction Projects
Daimler Foton Tipper Used Dump Truck for Construction Projects



Daimler Foton Tipper Used Dump Truck for Construction Projects
Daimler Foton Tipper Used Dump Truck for Construction Projects
Daimler Foton Tipper Used Dump Truck for Construction Projects
Daimler Foton Tipper Used Dump Truck for Construction Projects
Daimler Foton Tipper Used Dump Truck for Construction Projects
Daimler Foton Tipper Used Dump Truck for Construction Projects


Daimler Foton Tipper Used Dump Truck for Construction Projects
Daimler Foton Tipper Used Dump Truck for Construction Projects
Daimler Foton Tipper Used Dump Truck for Construction Projects
Basic Information
Driving license: A1,A2,B2 Announcement Model: BJ3319Y6GRL-01
Drive type: 8X4 Wheelbase: 2100+2300+1400mm
engine: Foton DaimlerX12NS6B410 Gearbox: Fast 12JSD240A
Rear axle ratio: 5.92 Body length: 8.76 m
Body width: 2.55 m Ride height: 3.65 m
Front track: 2020/2020mm Rear track: 1880/1880mm
Vehicle weight: 15.5 tons Rated load: 15.37 tons
Total mass: 31 tons Tonnage level: Heavy Truck
Approach Angle: 18 degrees Departure angle: 16 degrees
Origin: Beijing Huairou Market Segments: Urban construction waste
Department: 9 Series Version: Basic
Fuel Type: diesel fuel
Engine parameters
Engine Model: Foton Daimler engineX12NS6B410 Engine Brand: Foton Daimler
Number of cylinders: 6 cylinders Fuel Type: diesel fuel
Displacement: 11.8L Emission standards: National VI
Maximum horsepower: 410 hp Maximum output power: 301kW
Maximum Torque: 2100Nm Maximum torque speed: 1000-1300rpm
Rated speed: 1900rpm

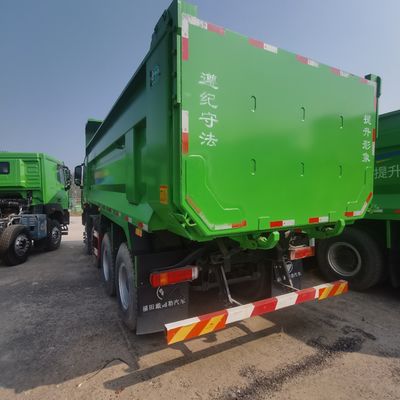

Cargo box parameters
Length of cargo box: 5.6 m Cargo box width: 2.35 m
Cargo box height: 1.5 m Cargo box form: Rear dump type

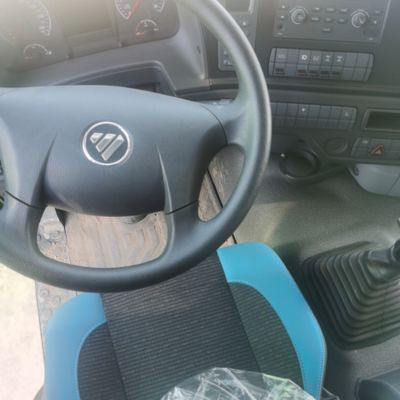

Cab parameters
Cab width: 2490mm
Gearbox parameters
Gearbox Model: Fast 12JSD240A Gearbox brand: Fast
Forward gears: 12 gears Reverse gear number: 2
tank
Fuel tank material: Aluminum Alloy Fuel tank capacity: 300L
Chassis parameters
Front axle description: 7.5T Permissible load on front axle: 6500/6500kg

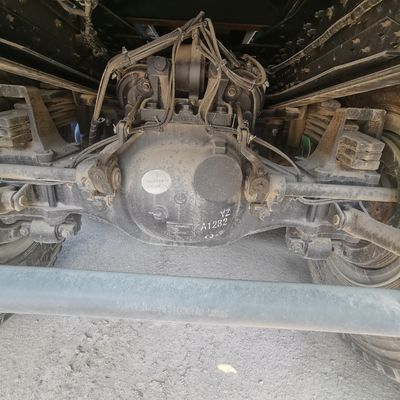

Rear Axle Description: 16T Mercedes Benz Permissible load on rear axle: 18000(two-axle group)kg
Speed €atio: 5.92 Number of springs: 2010/10/12
tire
Tire specifications: 12.00R20 18PR Number of tires: 12
Daimler Foton Tipper Used Dump Truck for Construction Projects


Shipment

Our mastery in the domain of truck shipping is unparalleled, leveraging state-of-the-art RO-RO vessels or bulk vessels to guarantee optimal safety and efficiency. We also provide specialized container shipping, meticulously tailored to meet a broad array of logistical requirements with utmost convenience.
Daimler Foton Tipper Used Dump Truck for Construction Projects


Original Spare Parts
Our commitment lies in offering genuine spare parts, backed by an exceptional after-sales service system. Our dedicated After-Market Division assures outstanding service and rapid parts delivery through a highly efficient supply chain.
Daimler Foton Tipper Used Dump Truck for Construction Projects

Our Product
Daimler Foton Tipper Used Dump Truck for Construction Projects

Thank You for Choosing Us

Q: How about the delivery time?
A: We take immense pride in our swift delivery capabilities, with the majority of trucks and machinery available within a remarkable 7 days. For custom orders, our meticulous production process generally extends to 30 days, ensuring unmatched quality and excellence.

Q: How many units of truck do you produce per year?
A: Our impressive manufacturing prowess is evidenced by our annual production capacity of approximately 30,000 units, with an estimated 5,000 units updated or manufactured monthly, maintaining a dynamic and highly efficient schedule.

Q: How do you control the quality of the product?
A: Quality is our paramount priority. Our facility boasts an avant-garde production workshop equipped with expertly trained professionals. Each product undergoes rigorous inspection to ensure superior quality. We also refurbish trucks and machinery on specialized production lines to uphold the highest standards.

Q: Do you accept custom orders? What is your MOQ?
A: Without a doubt, we eagerly welcome custom orders to cater to your unique specifications. Our minimum order quantity (MOQ) is a mere 1 unit, reflecting our flexibility and steadfast commitment to customer satisfaction.
