Product use The mixer truck, a specialized vehicle designed for transporting concrete, is commonly referred to as a field snail car or olive car due to its unique shape. Equipped with cylindrical mixers, these trucks ensure the safe and efficient delivery of mixed concrete to construction sites.
To maintain the quality of the concrete during transport, the mixing drum remains in constant rotation, preventing the concrete from setting. Post-delivery, the drum is typically washed with water to remove any residual concrete, thereby maintaining its volume capacity and ensuring optimal performance for future loads.
Basic Info. | Model NO | ZZ1257N3647N1 | | Productivity | 180m²/h |
| Feeding Height | 1380mm | | Vibrating Amplitude | 0.9mm |
| Certification | ISO9001: 2000 | | Condition | Used |
| Color | White | | Cbm | 10/12cbm |
| Customlize | Support Customlize | | Water Tank | 450L |
| Overall Dimension | 9000*2550*3950 mm | | Transmission | Hw19710, 10f & 2r with Pto |
| Transport Package | Nude | | Specification | 8800x2550x3800mm |
| Trademark | HOWO | | Origin | Shandong |
| Production Capacity | 200/months | | | |
Product Description

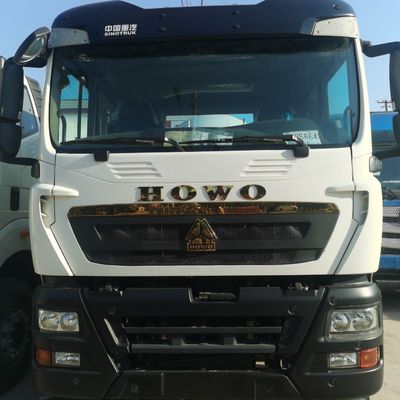

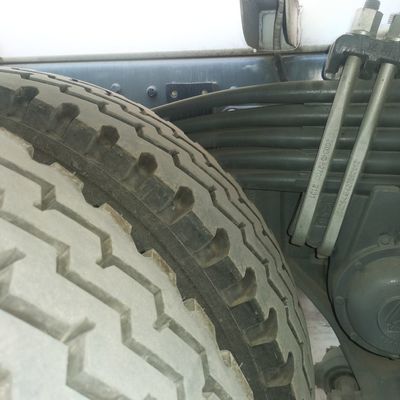

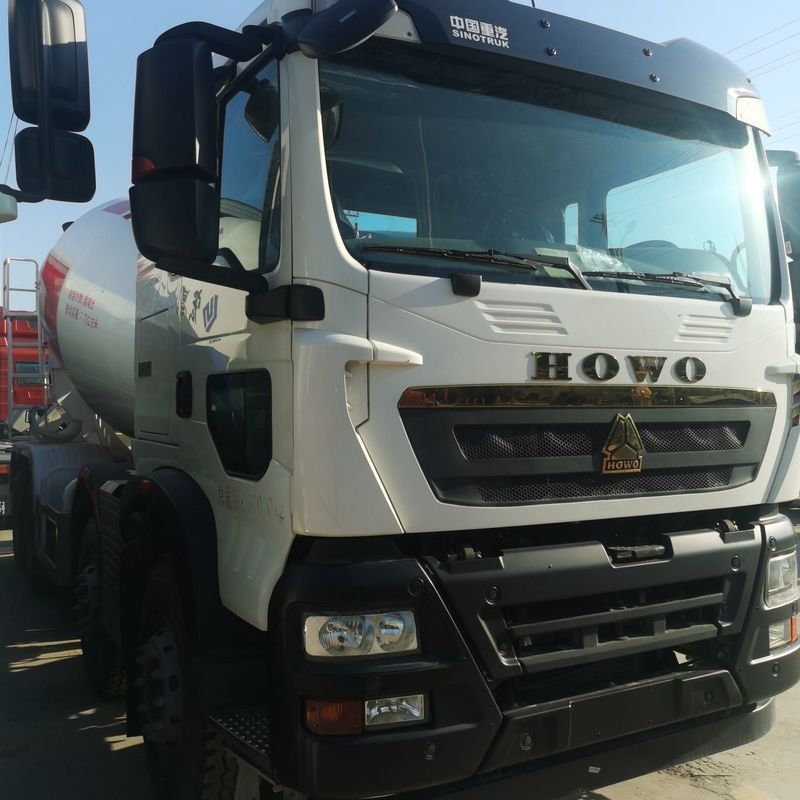

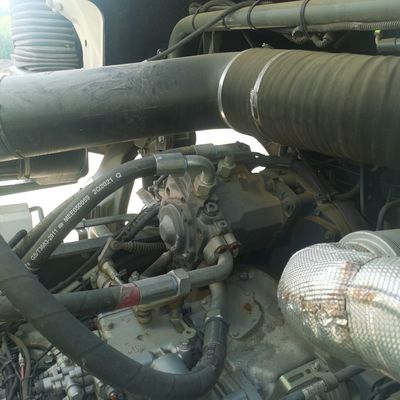

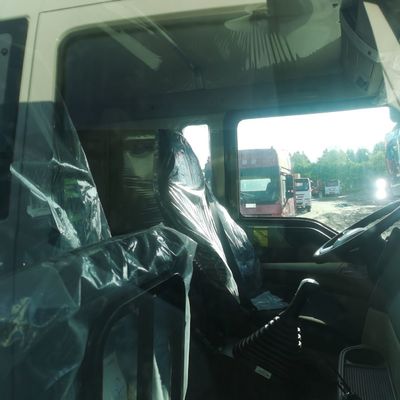

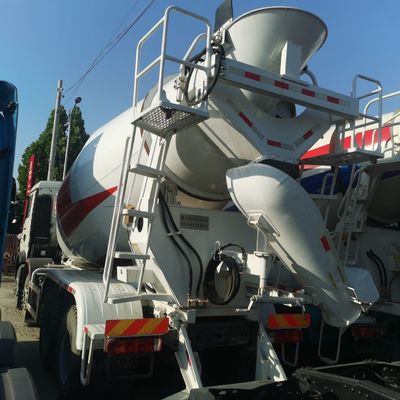

Detailed Pictures for SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck
| brand | Sinotruk Howo |
| Cabin | Driving type 6x4, LHD |
|
| HW76 single bed |
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245x2496x3450 |
| Wheel base (mm) | 3600+1350 |
| Wheel track (front/rear) (mm) | 2022/2022 |
| Approach/Departure angle(°) | 16/24 |
| Max. driving speed(km/h) | 90 |
| Engine | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Model | WD615.47 |
| Horse Power(HP) | 371 |
| Emission standard | Euro II |
| Gearbox | 10 forwards & 2 reverse |
| Steering | Left hand drive |
| Tire | 12R22.5 tubeless tires with one spare |
| Mixer Drum | Mixer Capacity | 16 cubic meters |
| Drum thickness | 6mm |
| Blade thickness | 4mm |
| Tanker Material: | 16MnQ345 Carbon Steel |
| Filling Rate(%) | 59 |
| Input Speed (m3/min) | ≥2.8 |
| Output Speed (m3/min) | ≥1.2 |
| Surplus Ratio | ≤0.5 |
| | Tanker Rotate Speed(rpm) | 0~17 |
| | Hydraulic Pump | Italy Brand: PMP |
| Drum Drive System | Hydraulic Motor | Italy Brand: PMP |
| | Speed Reducer | Germany Brand |
| | Radiator | KAITONG |
| | Water Tank Volume(L) | 400 |
We offer a diverse array of used tipper trucks,tractor trucks, and concrete mixer trucks, ranging from the year 2013 to the present. All vehicles are in excellent condition and offered at competitive prices!For additional photos and detailed information, please contact us.
Matters needing attention
1. Carefully inspect all mechanical system parts before starting the vehicle, ensuring everything is in optimal condition before operation.
2. Before initiating the process, place the mixing lever in the 'neutral' position.
3. After starting the vehicle, switch the mixing lever to the 'discharge' position to remove any water from the cylinder.
4. When loading, position the stirring operating rod in the 'loading' position.
5. Prior to transportation, secure the discharge groove in the 'traveling' position to prevent any unwanted movement.
6. When maneuvering the joystick, ensure it remains in the 'neutral' position briefly before moving to the next function.
7. Adhere to proper construction practices and avoid random disposal of excess materials from the bucket. After unloading, thoroughly clean the mixing drum, tank, roller, and other parts. When manual cleaning within the cylinder is required, ensure the vehicle is off, the key is removed, and a person outside supervises the process.
Our Factory
Shipment
We typically ship trucks via RO-RO vessel or bulk vessel, but can also use special containers for shipment.
Original Spare Parts
We provide genuine spare parts. Our comprehensive after-sales service system ensures exceptional service, supported by an efficient supply chain for swift parts delivery.
Our Product
Thank You for Choosing Us
Q: How about the delivery time?
A: Most of our trucks and machinery are in stock and can be delivered within 7 days. For specially ordered items, production typically takes around 30 days.
Q: How many units of trucks do you handle annually?
A: We handle nearly 30,000 units annually, with about 5,000 units updated monthly.
Q: How do you ensure product quality?
A: Our factory boasts a state-of-the-art production workshop and highly trained staff. Each product undergoes a stringent inspection process, and trucks and machines are reconditioned on a professional line.
Q: Do you accept custom orders? What is your MOQ?
A: Yes, we accept custom orders with a minimum order quantity (MOQ) of 1 unit.
