| Model NO.: | ZZ1257N3647N1 | Payload: | 30T |
|---|---|---|---|
| Fuel: | Diesel | Drive Mode: | 6x4 |
| Maximum Horsepower: | >400hp | Condition: | Used |
| Tyre: | New | Steering System: | Hydraulic Steering With Power Assistance |
| Chassis Brand: | Sinotruk Chassis | Color: | Customized |
| Cab: | Air Conditioner | Cargo Box Material: | Carbon Steel |
| Electric System: | Battery:2X12V/165ah; Alternator:28V-1500 Kw; Sta | Transport Package: | Naked Packing |
| Specification: | 10245x2496x3450m | Trademark: | JAC |
| Origin: | China | Supply Ability: | 1000pieces/Year |
| After-sales Service: | 6 Months | Warranty: | 6 Months |
| Certification: | ISO9000, CCC, TS16949, EEC, RoHS, CE | Transmission Type: | Manual |
| Emission Standard: | Euro 3 | Displacement: | 8 |
| Customization: | Available | Customized Request |
| Model NO | ZZ1257N3647N1 | Productivity | 180m²/h | |
| Feeding Height | 1380mm | Vibrating Amplitude | 0.9mm | |
| Certification | ISO9001: 2000 | Condition | Used | |
| Color | White | Cbm | 10/12cbm | |
| Customlize | Support Customlize | Water Tank | 450L | |
| Overall Dimension | 9000*2550*3950 mm | Transmission | Hw19710, 10f & 2r with Pto | |
| Transport Package | Nude | Specification | 8800x2550x3800mm | |
| Trademark | JAC | Origin | Shandong | |
| Production Capacity | 200/months |

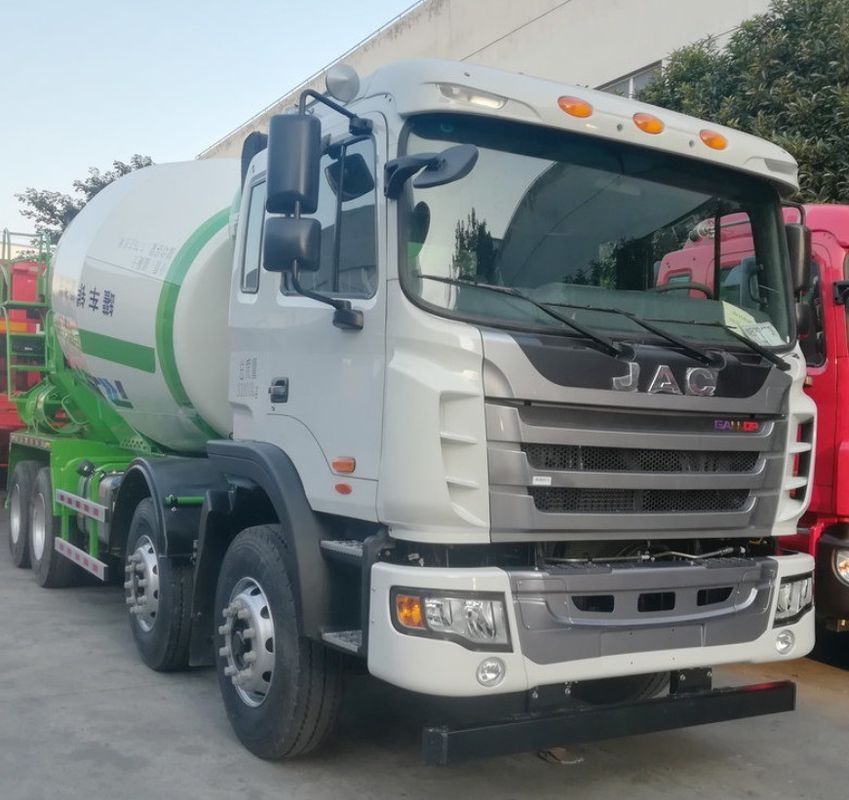

| 10m3Concrete Mixer Truck Specification | ||
| Truck model | CA5250GJBP66K2L1T1E | |
| Produced by | JAC | |
| Drive wheel | 6x4 | |
| GVW | 25 Tons | |
| Cabin | J6P, Automatic Air Conditioner, Electric windows, Electric lifting, Steel bumper | |

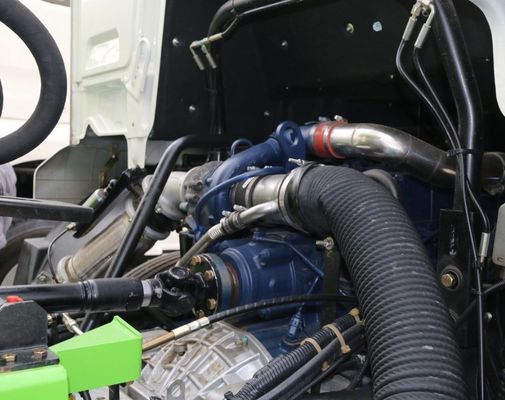

| Engine | Model | CA6DL2-35E3F, 350HP |
| Manufacturer | FAW | |
| Air filter | Desert type air filter | |
| Emission standard | Euro III, EGR tech | |
| No. of cylinder | 6 cylinder in-line,watercooling,turbo-charge | |
| Transmission | CA10TA160M2, 10 forward speed, Manual type | |
| Clutch | Ф430mmdry type | |
| Steering | LHD, power-assistant | |
| Front Axle | D2020, 9 tons | |
| Rear Axle | LC300,16 tons (rate:5.921) | |
| Brakes | Drum type | |
| Chassis | 400L Fuel tank, steel tanker. | |

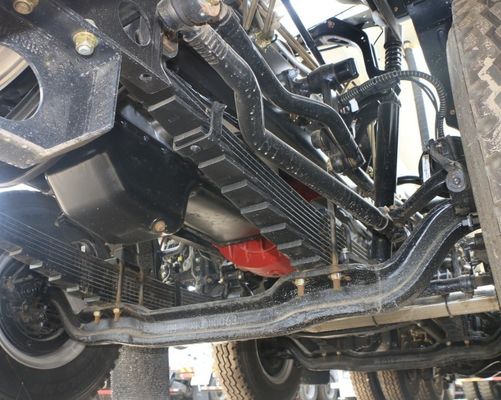

| Suspension | Leaf spring type, Front 12/ Rear 12 Pieces | |
| Frame | 300*80*(8+8)mm | |
| Wheel Base | 3800+1350mm | |

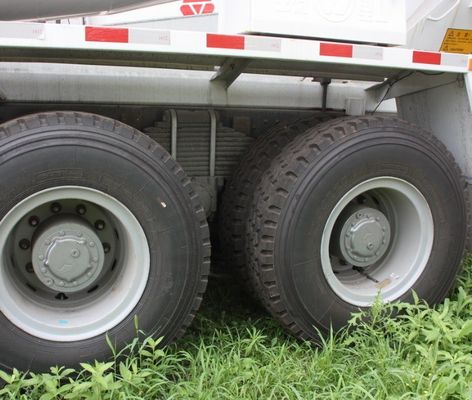

| Wheel&Tire | Tire: 12.00R20-18 Radial | |
| Electric system | Operating voltage | 24v |
| Starter, Alternator | China brand | |
| Overall Dimension | Overall Length | 9848mm |
| Overall Width | 2550mm | |
| Overall Height | 3930mm | |

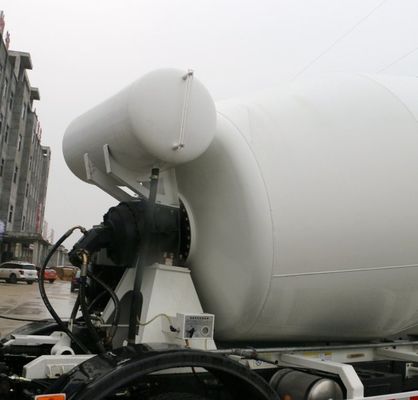

| Mixer system | Mixer tank volume | 10m3 |
| Material & thickness | 520JJ. HARDOX is optional. Thickness 5mm/ 6mm | |

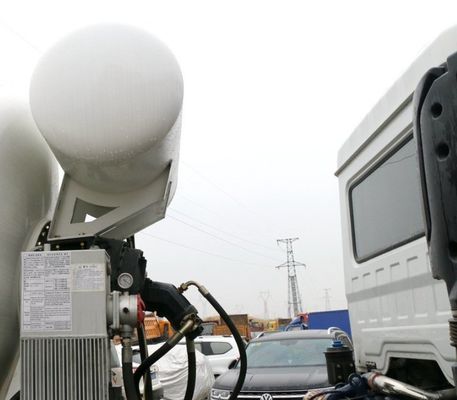

| Hydraulic system | ARK, TOP UNION is standard. REXROTH/ PMP/ EATON/ ZF/BONFIGLIOLIare optional. | |
| Others | Cleaning water tank, mechanical discharge hopper. | |
| Max.speed | 85 km/h | |
| Lead time | 30 working days | |
| Typical truck model | ZZ5257GJBN3641W | ZZ5257GJBN3841W | ZZ5257GJBN4041W | ZZ5257GJBN4341W | |||
| Cab | Model | HW76 | |||||
| Type | HW76 extend cab, one berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt. | ||||||
| Engine | Model | WD615.87 | WD615.69 | WD615.47 | |||
| Rated power | 290HP(213Kw/rpm) | 336HP(247Kw/rpm) | 371HP(273Kw/rpm) | ||||
| Displacement | 4 stroke direct injection diesel engine | ||||||
| Type | 6 cylinder in-line with water cooling, turbo-charging & intercooling | ||||||
| Wheelbase | 3600+1400mm | 3800+1400mm | 4000+1400mm | 4300+1400mm | |||
| Mixer tanker size | 8CBM | 9CBM | 10CBM | 12CBM | |||
| Clutch | Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance | ||||||
| Transmission | SINOTRUKHW series 10/12/16 speed transmission, 10 forward and 2 reverse | ||||||
| Front axle | Steering axle with double T-cross section HF9 | ||||||
| Drive axle | Pressed axle housing, central single reduction HC16 Ratio:5.73 | ||||||
| Chassis | Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Spare wheel carrier: with one spare wheel Aluminum fuel tank: with 400 L fuel tank with locking fuel cap | ||||||
| Steering | Germany , hydraulic steering with power assistance | ||||||
| Brakes | Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Option: ABS | ||||||
| Wheel & Types | Rims: 8.0-20, 10 hole-steel Types 11.00-20 tube; Option: 12.00-20 tube, 12.00R20 tube | ||||||
| Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW Alternator: 28V, 1540W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp | ||||||
