Heavy-Duty Cement Mixer Truck with Maximum Horsepower 300-400hp Electric System Sta

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

Heavy-Duty Cement Mixer Truck with Maximum Horsepower 300-400hp Electric System Sta

Heavy-Duty Cement Mixer Truck with Maximum Horsepower 300-400hp Electric System Sta
Heavy-Duty Cement Mixer Truck with Maximum Horsepower 300-400hp Electric System Sta Heavy-Duty Cement Mixer Truck with Maximum Horsepower 300-400hp Electric System Sta Heavy-Duty Cement Mixer Truck with Maximum Horsepower 300-400hp Electric System Sta Heavy-Duty Cement Mixer Truck with Maximum Horsepower 300-400hp Electric System Sta Heavy-Duty Cement Mixer Truck with Maximum Horsepower 300-400hp Electric System Sta Heavy-Duty Cement Mixer Truck with Maximum Horsepower 300-400hp Electric System Sta

Large Image :  Heavy-Duty Cement Mixer Truck with Maximum Horsepower 300-400hp Electric System Sta

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

Heavy-Duty Cement Mixer Truck with Maximum Horsepower 300-400hp Electric System Sta

Description
Model NO.: ZZ1257N3647N1 Transmission Type: Manual
Emission Standard: Euro 3 Displacement: 8
Payload: 30T Fuel: Diesel
Drive Mode: 6x4 Maximum Horsepower: 300-400hp
Condition: Used Tyre: New
Steering System: Hydraulic Steering With Power Assistance Chassis Brand: Sinotruk Chassis
Color: Customized Cab: Air Conditioner
Cargo Box Material: Carbon Steel Electric System: Battery:2X12V/165ah; Alternator:28V-1500 Kw; Sta
Transport Package: Naked Packing Specification: 10245x2496x3450m
Trademark: Sinotruk Origin: China
HS Code: 8704109000 Supply Ability: 1000pieces/Year
After-sales Service: 6 Months Warranty: 6 Months
Certification: ISO9000, CCC, TS16949, EEC, RoHS, CE Customization: Available | Customized Request
Shipping Cost : About Shipping Cost And Estimated Delivery Time.  : Initial Payment Full Payment
Currency: US$ Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

New Heavy-Duty Cement Mixer Truck

Product Use

The Heavy Duty Cement Mixer Truck with New Tyres is an essential vehicle tailored for transporting concrete to construction sites. Its iconic design has earned it nicknames like the 'field snail car' and 'olive car.' These trucks boast cylindrical mixers, ensuring the concrete remains fresh and ready-to-use during transit.
The mixing drum on our cement mixer truck continuously rotates throughout transportation, keeping the concrete from setting. Post-delivery, the drum undergoes a thorough water wash to prevent hardened residue, thus maintaining the drum's capacity and efficiency.

Basic Information
Model NO ZZ1257N3647N1   Productivity 180m²/h
Feeding Height 1380mm   Vibrating Amplitude 0.9mm
Certification ISO9001: 2000   Condition Used
Color White   Cbm 10/12cbm
Customlize Support Customlize   Water Tank 450L
Overall Dimension 9000*2550*3950 mm   Transmission Hw19710, 10f & 2r with Pto
Transport Package Nude   Specification 8800x2550x3800mm
Trademark HOWO   Origin Shandong
Production Capacity 200/months

New Heavy-Duty Cement Mixer Truck
New Heavy-Duty Cement Mixer Truck
New Heavy-Duty Cement Mixer Truck


Product Description

Detailed Pictures for SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck

brand
Sinotruk Howo
Cabin
Driving type 6x4, LHD
HW76 single bed
Vehicle Main Dimensions
Overall dimensions (L x W x H)mm
10245x2496x3450
Wheel base (mm)
3600+1350
Wheel track (front/rear) (mm)
2022/2022
Approach/Departure angle(°)
16/24
Max. driving speed(km/h)
90

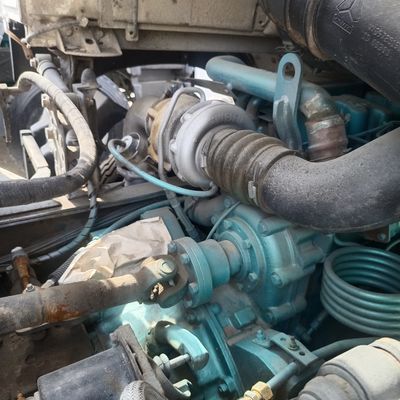

Engine
Type
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Model
WD615.47
Horse Power(HP)
371
Emission standard
Euro II
Gearbox
10 forwards & 2 reverse
Steering
Left hand drive
Tire
12R22.5 tubeless tires with one spare

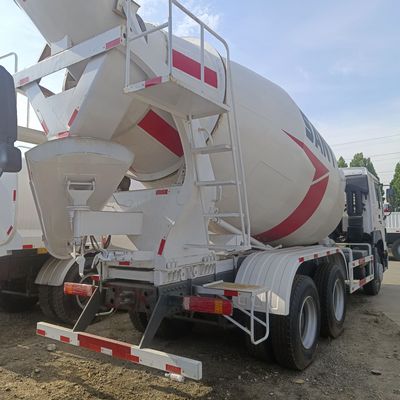

Mixer Drum
Mixer Capacity
16 cubic meters
Drum thickness
6mm
Blade thickness
4mm
Tanker Material:
16MnQ345 Carbon Steel
Filling Rate(%)
59
Input Speed (m3/min)
≥2.8
Output Speed (m3/min)
≥1.2
Surplus Ratio
≤0.5

Tanker Rotate Speed(rpm)
0~17

Hydraulic Pump
Italy Brand: PMP
Drum Drive System
Hydraulic Motor
Italy Brand: PMP

Speed Reducer
Germany Brand

Radiator
KAITONG

Water Tank Volume(L)
400

New Heavy-Duty Cement Mixer TruckNew Heavy-Duty Cement Mixer TruckNew Heavy-Duty Cement Mixer Truck

We offer a comprehensive range of top-quality used tipper trucks,tractor trucks, and concrete mixer trucks from the year 2013 onwards. Each vehicle in our inventory is meticulously maintained and available at highly competitive prices!For additional photos and in-depth details, please reach out to us.

New Heavy-Duty Cement Mixer TruckNew Heavy-Duty Cement Mixer TruckNew Heavy-Duty Cement Mixer TruckNew Heavy-Duty Cement Mixer Truck

Important Considerations

1. Conduct a thorough inspection of all mechanical system components before initiating operations, and proceed only after verifying optimal condition.
2. Ensure the mixing lever is placed in the 'neutral' position before starting the engine.
3. After starting, transition the mixing lever to the 'discharge' position to expel any water in the cylinder.
4. When loading, set the stirring control rod to the 'loading' position.
5. Secure the discharge groove firmly in the 'traveling' position before transport to prevent any movement.
6. When adjusting the control joystick, always pause in the 'neutral' position before moving to the next setting.
7. Maintain a clean work environment; avoid indiscriminate disposal of excess materials. Clean the mixing drum, tank, roller, and other parts after discharge. When entering the cylinder for concrete removal, ensure the vehicle is off, the key is removed, and someone is monitoring from outside.


Our Factory
New Heavy-Duty Cement Mixer Truck


Shipment

Our preferred shipment methods include RO-RO vessels or bulk vessels. We can also arrange for shipping via special containers.
New Heavy-Duty Cement Mixer Truck


Original Spare Parts
We provide genuine spare parts and unparalleled after-sales service. Our After-market Division guarantees superior service and utilizes an efficient supply chain for prompt parts delivery.
New Heavy-Duty Cement Mixer Truck

Our Products
New Heavy-Duty Cement Mixer Truck
Thanks for Choosing Us
Q: What is the estimated delivery time?
A: Most of our trucks and machinery are readily available and can be delivered within 7 days. Custom orders typically require about 30 days for production.

Q: How many trucks do you produce annually?
A: We manufacture approximately 30,000 units each year, with monthly updates of nearly 5,000 units.

Q: What measures do you take to ensure product quality?
A: Our factory is equipped with a standard production workshop and skilled workers. Each product undergoes a stringent inspection process, and we professionally recondition our trucks and machinery.

Q: Do you accept custom orders? What is the minimum order quantity (MOQ)?
A: Yes, we welcome custom orders. Our minimum order quantity (MOQ) is just one unit.
