| Model NO.: | Delong Truck | Payload: | 30T |
|---|---|---|---|
| Fuel: | Diesel | Drive Mode: | 6x4 |
| Maximum Horsepower: | >400hp | Condition: | Used |
| Tyre: | New | Steering System: | Hydraulic Steering With Power Assistance |
| Chassis Brand: | Sinotruk Chassis | Color: | Customized |
| Cab: | Air Conditioner | Cargo Box Material: | Carbon Steel |
| Electric System: | Battery:2X12V/165ah; Alternator:28V-1500 Kw; Sta | Transport Package: | Naked Packing |
| Specification: | 10245x2496x3450m | Trademark: | Auman |
| Origin: | China | Supply Ability: | 1000pieces/Year |
| After-sales Service: | 6 Months | Warranty: | 6 Months |
| Certification: | ISO9000, CCC, TS16949, EEC, RoHS, CE | Transmission Type: | Manual |
| Emission Standard: | Euro 3 | Displacement: | 8 |
| Customization: | Available | Customized Request |
| Model NO | ZZ1257N3647N1 | Productivity | 180m²/h | |
| Feeding Height | 1380mm | Vibrating Amplitude | 0.9mm | |
| Certification | ISO9001: 2000 | Condition | Used | |
| Color | White | Cbm | 10/12cbm | |
| Customlize | Support Cutomlize | Water Tank | 450L | |
| Overall Dimension | 9000*2550*3950 mm | Transmission | Hw19710, 10f & 2r with Pto | |
| Transport Package | Nude | Specification | 8800x2550x3800mm | |
| Trademark | Auman | Origin | Shandong | |
| Production Capacity | 200/months |

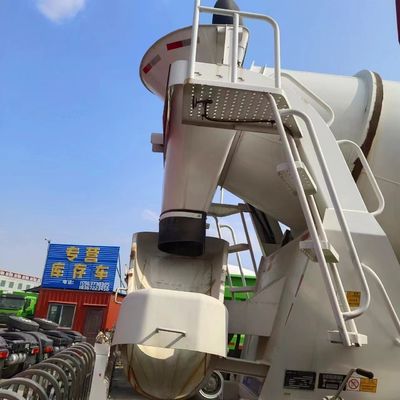

| The tank of the mixer truck is smooth, with large volume and large volume, and the tank is smooth without abrupt feeling. Pneumatic water supply is used to clean the outside of the mixing drum and feed hopper in time, and also to clean the car body. The car is equipped with a 15m long hose to facilitate the cleaning of the tank; There is also a water pipe behind the car body, which is connected to the water tank and can be used for external use at any time. The control lever of the mixer truck is flexible and Trinity. The left and right control levers at the tail and the operating handle are also installed in the cab to control the forward and reverse directions and speed of the mixing drum, so as to complete the feeding and discharging and mixing actions. The operation of the control lever is flexible and convenient, realizing the trinity of left, right and feed port operation. The auxiliary feeding of the safety escalator of the mixer truck is safe and firm. It is made of high-quality and safe materials. The safety escalators are equipped with upper and lower safety handrails to facilitate the feeding operation and the flushing of the feed hopper chute, etc. to check the situation in the tank and other safe operations. |
| Description | FOTON 10cbm concrete mixer | Model | 10cbm concrete mixer |
| Engine | Weichai 336hp | Dimension | 8500x2500x3850mm |
| Transmission | 9 forwarder+2reverser | Volume | 10cbm concrete mixer |
| Front Axle | 7.5ton | Cabin | Shacman F3000 |
| Rear Axle | 16ton | Brake | Air brake |
| Wheel Base | 3850+1350mm | Steering | Direction Assistant |
| Axle | 3(axle) | Speed | 83(km/h) |
| Drive Model | (6×4) | Option | ABS |
| No. Of Tyre | 11 | Tyre Model | 12.00R20/12.00-20 |
| Upper part | ||
| Mixer tank | Capacity | 10 cubic meters |
| Shell Material | Alloy steel(special wear- resistant material, enhance the service life of tank at least 3 times) | |
| Lining Material | 16Mn 5mm alloy steel | |
| End plate Material | 6mm alloy steel | |
| Blade Material | Bao Steel 520 5mm alloy steel (equipped with wear-resistant strip, longer service time) | |
| Feed Rate (m3/min) | ≥3 | |
| Discharging Rate(m3/min) | ≥2 | |
| Discharging Residual Ratio(%) | ≤0.5 | |
| Discharging Rage | 180° | |
| Operation mode | Control panel in cabin or on each side the mixer tank | |
| Hydraulic system | Hydraulic pump | America Eaton |
| Hydraulic motor | America Sauer | |
| Reducer | Italy PMP | |
| Radiator | Chinese brand | |
| Water Tank | Volume(L) | 400 |
| Supply system | Air-pressure | |
| Description | Provide water to concrete during transportation and to cool down the hydraulic system. With wash-hand device. | |
We offer a diverse range of trucks including 4x2, 6x4, 8x4 configurations from brands like Dongfeng, Sinotruck, FOTON, SHACMAN, FAW, CAMC, ISUZU, JMC, and JAC, with capacities ranging from 3m3 to 20m3.We specialize in providing 4x2, 6x4, 8x4 models from renowned brands such as Dongfeng, Sinotruck, FOTON, SHACMAN, FAW, CAMC, ISUZU, JMC, and JAC, with capacities spanning 3m3 to 20m3.
