Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer for B2B Purchases

Certification
China Jining Huahang International Trade Co., Ltd. certification
China Jining Huahang International Trade Co., Ltd. certification
I'm Online Chat Now

Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer for B2B Purchases

Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer for B2B Purchases
Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer for B2B Purchases Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer for B2B Purchases Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer for B2B Purchases Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer for B2B Purchases Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer for B2B Purchases Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer for B2B Purchases

Large Image :  Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer for B2B Purchases

Product Details:
Certification: SGS
Payment & Shipping Terms:
Delivery Time: 7-15days

Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer for B2B Purchases

Description
Model NO.: ZZ1257N3647N1 Transmission Type: Manual
Emission Standard: Euro 3 Displacement: 8
Payload: 30T Fuel: Diesel
Drive Mode: 8x4 Maximum Horsepower: >400hp
Condition: Used Tyre: New
Steering System: Hydraulic Steering With Power Assistance Chassis Brand: Sinotruk Chassis
Color: Customized Cab: Air Conditioner
Cargo Box Material: Carbon Steel Electric System: Battery:2X12V/165ah; Alternator:28V-1500 Kw; Sta
Transport Package: Naked Packing Specification: 10245x2496x3450m
Trademark: Sinotruk Origin: China Liangshan
HS Code: 87019090 Supply Ability: 1000pieces/Year
Package Size: 7500.00cm * 255.00cm * 3850.00cm Package Gross Weight: 8800.000kg
After-sales Service: 6 Months Warranty: 6 Months
Certification: ISO9000, CCC, TS16949, EEC, RoHS, CE Customization: Available | Customized Request
Shipping Cost : About Shipping Cost And Estimated Delivery Time.  : Initial Payment Full Payment
Currency: US$ Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer

Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer

Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer

Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer
Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer
Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer



Basic Information

Drive type:
8X4
Body size:
11.84×2.496×3.998 meters
Front overhang/rear overhang:
1.5/3.365m
Wheelbase:
1800+3600+1350mm
Rated load:
12.05 tons
Vehicle weight:
18.82 tons
Maximum speed:
80km/h
Front track/rear track:
Front track: 2022/2022mm; Rear track: 1830/1830mm

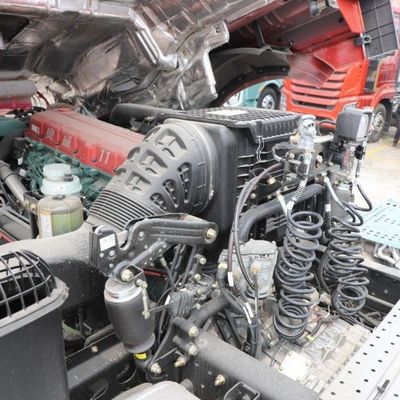

Engine parameters

engine model:
Sinotruk D10.38-50
Fuel type:
diesel fuel
Number of cylinders:
6 cylinders
Maximum output power:
276kW
Maximum horsepower:
380 hp
Displacement:
9.726L
Emission Standards:
National Five
Engine Type:
Inline six-cylinder, water-cooled, four-stroke, supercharged and intercooled, high-pressure common rail
Rated speed:
2000RPM



Upload parameters

Vehicle announcement:
TZ5317GJBZN8E1
Vehicle type:
Concrete mixer truck
Top brand:
Yate Heavy Industry
Vehicle Origin:
Tangshan
Stirring volume:
5.5m³



Cab parameters

Cab:
Flat Top



Gearbox parameters

Gearbox Model:
Sinotruk HW15710
Number of gears:
10 levels

Chassis parameters

Chassis Brand:
Sinotruk HOWO (HOWO)
Chassis Model:
ZZ1317N3667E1
Chassis series:
Sinotruk HOWO-7
Speed ratio:
5.473
Number of springs:
11/11/12,11/11/-,4/4/12,4/4/-

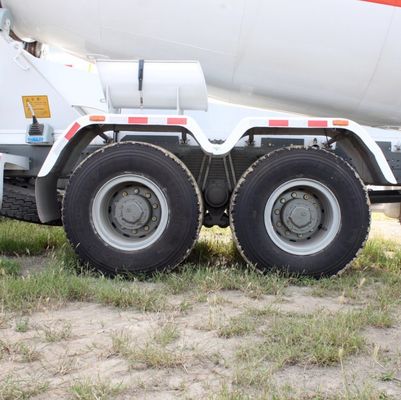

tire

Number of tires:
12
Tire specifications:
315/80R22.5 18PR



Matters Needing Attention

1. Conduct a meticulous inspection of all mechanical components before starting the vehicle. Proceed only if the system is verified to be in excellent condition.
2. Ensure the mixing lever is in the 'neutral' position before starting the engine.
3. Once the engine is running, switch the mixing lever to the 'discharge' position to expel any residual water from the cylinder.
4. During loading, set the stirring operating rod to the 'loading' position.
5. Secure the discharge groove in the 'traveling' position before transportation to prevent any swinging.
6. When maneuvering the joystick, always allow a brief pause in the 'neutral' position before moving to the next setting.
7. Uphold high standards of civilized construction practices: avoid indiscriminate disposal of excess materials. After discharging, thoroughly clean the mixing drum, tank, roller, and other components. When entering the cylinder to remove concrete residues, ensure the vehicle is off, the key is removed, and supervision is provided from outside.


Our Factory
Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer


Shipment

We primarily ship our trucks via RO-RO vessel or bulk vessel. Special container shipping arrangements can also be made upon request.
Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer


Original Spare Parts
We provide authentic spare parts. Our diligent after-sales service team, managed by the After-market Division, ensures unmatched support and an efficient supply chain for swift parts delivery.
Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer

Our Product
Haowo Cnhtc Heavy Duty Cement Mixing Truck Sinotruk Concrete Mixer

Thank You for Choosing Us

Q: How about the delivery time?
A: We typically have most of our trucks and machines in stock, enabling delivery within 7 days. Custom orders usually require a production time of approximately 30 days.

Q: How many units of trucks do you produce annually?
A: We manufacture around 30,000 units annually, with nearly 5,000 units updated monthly.

Q: How do you control product quality?
A: Our factory is equipped with a state-of-the-art production workshop staffed by highly trained professionals. Each product undergoes rigorous inspections. We also recondition trucks and machines through a professional and meticulous process.

Q: Do you accept custom orders? What is your MOQ?
A: Yes, we do accept custom orders. Our minimum order quantity (MOQ) is just 1 unit.

Thank you for your visit. I am willing to provide you with vehicle information and quotation, but I would like to know your specific requirements for trucks, such as vehicle brand, emission standards, horsepower, and age, so that I can provide you with a more accurate quotation. Our company has many excellent trucks for you to choose from, and we hope to cooperate with you. For more convenient and timely communication, if you don't mind, we can communicate with you on WhatsApp.   Feel free to contact me anytime. Thank you
