Product Use
The Sinotruk Hydraulic Concrete Mixer Truck epitomizes advanced engineering, tailored for flawless concrete transportation to construction sites. With its distinctive design, reminiscent of a field snail or olive car, it guarantees unparalleled efficiency in handling mixed concrete. Equipped with cylindrical mixers engineered for peak performance, this truck is an essential powerhouse for any construction endeavor.
The mixing drum of the Sinotruk Hydraulic Concrete Mixer Truck operates continuously during transit, ensuring the concrete remains fluid and usable. Upon arrival, the drum is meticulously rinsed with water, preventing any concrete residue from hardening and safeguarding the truck's full operational capacity and extended lifespan.
Basic Info.
Product Description
Basic Information
| Drive type: | 8X4 | Body size: | 10.82 x 2.496 x 3.98 m |
| Front overhang/rear overhang: | 1.5/2.57 m | Wheelbase: | 1800+3600+1350mm |
| Rated load: | 14.32 tons | Vehicle weight: | 16.55 tons |
| Maximum speed: | 80km/h | Front track/rear track: | Front track: 2022/2022, rear track: 1830/1830mm |
Engine parameters
| engine model: | Sinotruk D10.38-40 | Fuel type: | diesel fuel |
| Number of cylinders: | 6 cylinders | Maximum output power: | 279kW |
| Maximum horsepower: | 380 hp | Displacement: | 9.726L |
| Emission Standards: | National Four | Engine Type: | Inline six-cylinder, water-cooled, four-stroke, supercharged, intercooled, high-pressure common rail |
Upload parameters
| Vehicle announcement: | ZZ5317GJBN3667D1 | Vehicle type: | Concrete mixer truck |
| Top brand: | Sinotruk HOWO (HOWO) | Stirring volume: | 5.8m³ |
Gearbox parameters
| Gearbox Model: | HW19710 | Number of gears: | 10 levels |
Chassis parameters
| Chassis Brand: | Sinotruk HOWO (HOWO) | Chassis Model: | ZZ1317N3667D1 |
| Chassis series: | HOWO-7 | Number of springs: | 4/4/12 |
tire
| Number of tires: | 8 | Tire specifications: | 12.00R20 |

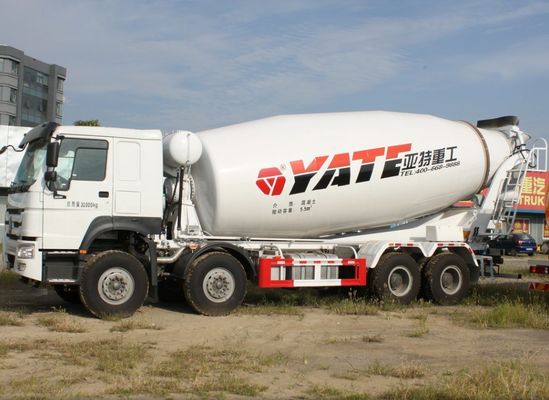

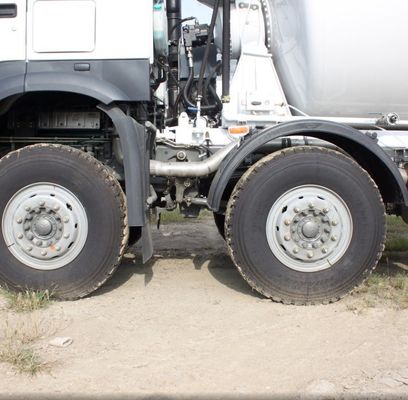

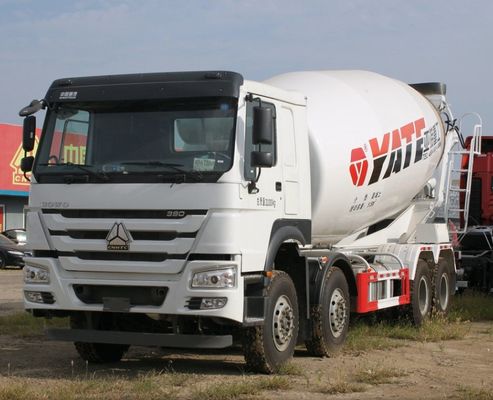

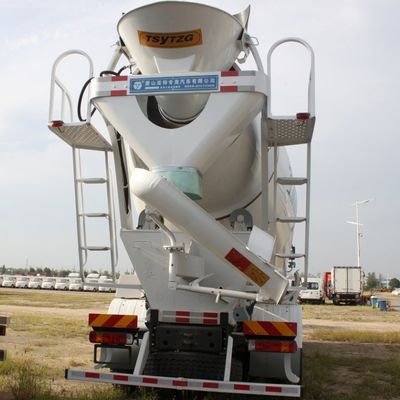

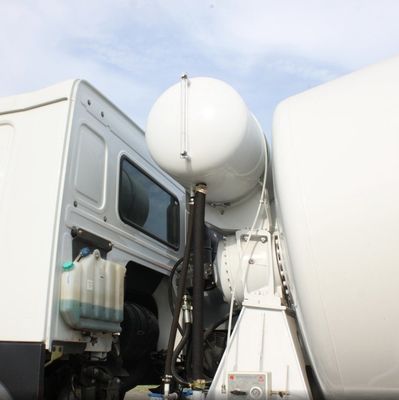

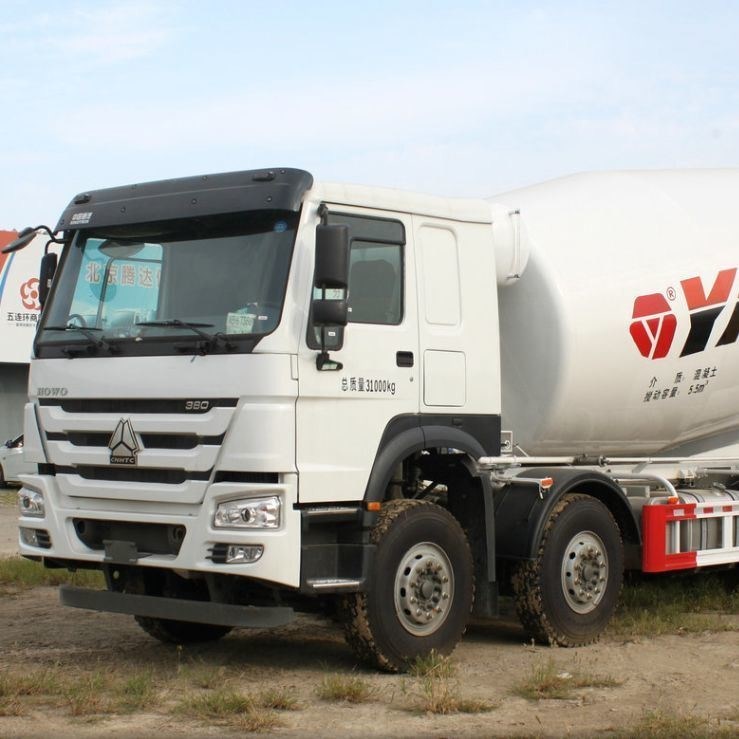

Detailed Pictures for SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck
We offer an expansive selection of used tipper trucks,tractors, and concrete mixer trucks, all post-2013 models. Each vehicle is maintained in pristine condition and offered at highly competitive prices!For more detailed photos and in-depth information, feel free to contact us.
Matters Needing Attention
1. Conduct a comprehensive inspection of all mechanical components before starting the vehicle. Proceed only if the system is confirmed to be in perfect condition.
2. Ensure the mixing lever is in the 'neutral' position before starting the engine.
3. Once the engine is running, switch the mixing lever to the 'discharge' position to expel any residual water from the cylinder.
4. During loading, position the stirring operating rod in the 'loading' setting.
5. Secure the discharge groove in the 'traveling' position before starting transportation to prevent any swinging.
6. When maneuvering the joystick, always allow a brief pause in the 'neutral' position before moving to the next setting.
7. Maintain high standards of civilized construction: avoid indiscriminate disposal of excess materials. After discharging, thoroughly clean the mixing drum, tank, roller, and other components. When entering the cylinder to remove concrete residues, ensure the vehicle is off, the key is removed, and supervision is provided from outside.
Our Factory
Shipment
We typically ship our trucks via RO-RO vessel or bulk vessel. Special container shipping arrangements can be made upon request.
Original Spare Parts
We supply genuine spare parts. Our dedicated after-sales service team, guided by the After-market Division, ensures exceptional support and an efficient supply chain for rapid parts delivery.
Our Product
Thank You for Choosing Us
Q: How about the delivery time?
A: We typically have most of our trucks and machines in stock, allowing for delivery within 7 days. Custom orders usually require a production time of around 30 days.
Q: How many units of trucks do you produce annually?
A: We manufacture around 30,000 units annually, updating nearly 5,000 units monthly.
Q: How do you control product quality?
A: Our factory boasts a state-of-the-art production workshop with highly trained workers. Each product undergoes rigorous inspections. Additionally, we recondition trucks and machines through a professional and meticulous process.
Q: Do you accept custom orders? What is your MOQ?
A: Yes, we accept custom orders. Our minimum order quantity (MOQ) is just 1 unit.
